Fiber Glass FRP WIFI High Gain Omni Antenna 2.4G 8dBi 18.5x570mm
Fiber Glass FRP WIFI High Gain Omni Antenna 2.4G 8dBi 18.5x570mm
Fiber Glass FRP WIFI High Gain Omni Antenna 2.4G 8dBi 18.5x570mm
Fiber Glass FRP WIFI High Gain Omni Antenna 2.4G 8dBi 18.5x570mm
Fiber Glass FRP WIFI High Gain Omni Antenna 2.4G 8dBi 18.5x570mm
Fiber Glass FRP WIFI High Gain Omni Antenna 2.4G 8dBi 18.5x570mm
Fiber Glass FRP WIFI High Gain Omni Antenna 2.4G 8dBi 18.5x570mm
Fiber Glass FRP WIFI High Gain Omni Antenna 2.4G 8dBi 18.5x570mm
Fiber Glass FRP WIFI High Gain Omni Antenna 2.4G 8dBi 18.5x570mm
Fiber Glass FRP WIFI High Gain Omni Antenna 2.4G 8dBi 18.5x570mm
Specifications
Brand Name :
Leenz
Model Number :
LZANT-10403-A
Certification :
RoHs
Place of Origin :
China
MOQ :
10
Payment Terms :
T/T
Supply Ability :
5K per day
Delivery Time :
15 days
Frequency :
2400-2500MHz
VSWR :
<1
Peak Gain :
8dBi
Impedance :
50
Description

1. Specification

A. Electrical Characteristics
Frequency 2400-2500MHz
Impedance 50 Ohm
S.W.R. <1.5
Antenna Gain 8dBi
Efficiency ≈83%
Polarization Linear
Horizontal Beamwidth 360°
Vertical Beamwidth 15°±2°
Max Power 50W
B. Material & Mechanical Characteristics
Connector Type N connector
Dimension Φ18.5*570mm
Weight 0.275Kg
Radome material Fiberglass
C. Environmental
Operation Temperature - 40 ˚C ~ + 80 ˚C
Storage Temperature - 40 ˚C ~ + 80 ˚C
Rated Wind Velocity 36.9m/s
Lighting Protection DC Ground

2. Antenna - S Parameter Test Data

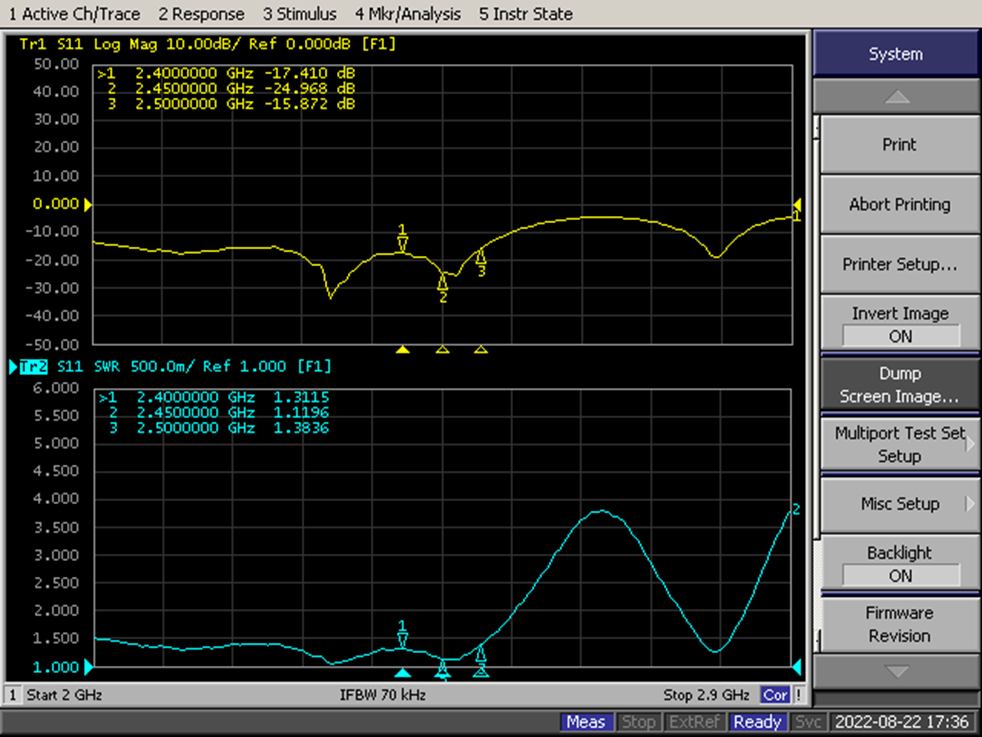

2.1 VSWR

Fiber Glass FRP WIFI High Gain Omni Antenna 2.4G 8dBi 18.5x570mm

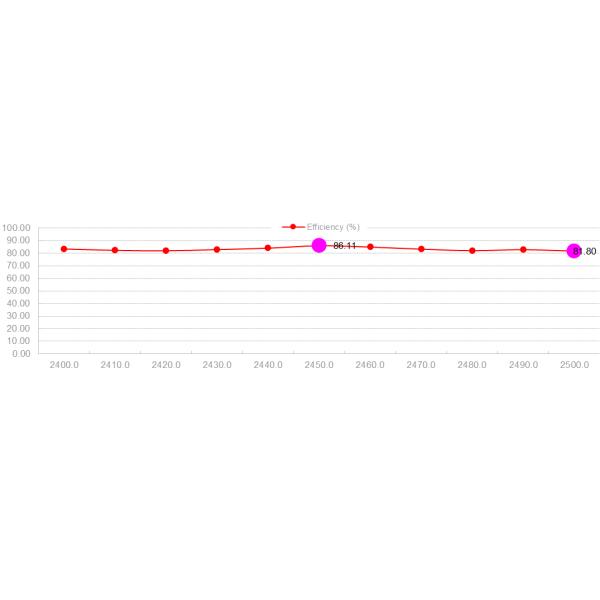

2.2 Total Efficiency & Gain:

Frequency(MHz) 2400.0 2410.0 2420.0 2430.0 2440.0 2450.0 2460.0 2470.0 2480.0 2490.0 2500.0
Gain (dBi) 7.65 7.65 7.70 7.79 7.86 7.90 7.91 7.88 7.79 7.88 7.90
Efficiency (%) 83.58 82.46 82.10 83.08 84.18 86.11 85.06 83.42 82.20 83.02 81.80
Fiber Glass FRP WIFI High Gain Omni Antenna 2.4G 8dBi 18.5x570mm
2.3 Radiation Pattern
3D 2D-Horizontal 2D-Vertical
2400MHz Fiber Glass FRP WIFI High Gain Omni Antenna 2.4G 8dBi 18.5x570mm Fiber Glass FRP WIFI High Gain Omni Antenna 2.4G 8dBi 18.5x570mm Fiber Glass FRP WIFI High Gain Omni Antenna 2.4G 8dBi 18.5x570mm
2450MHz Fiber Glass FRP WIFI High Gain Omni Antenna 2.4G 8dBi 18.5x570mm Fiber Glass FRP WIFI High Gain Omni Antenna 2.4G 8dBi 18.5x570mm Fiber Glass FRP WIFI High Gain Omni Antenna 2.4G 8dBi 18.5x570mm
2500MHz Fiber Glass FRP WIFI High Gain Omni Antenna 2.4G 8dBi 18.5x570mm Fiber Glass FRP WIFI High Gain Omni Antenna 2.4G 8dBi 18.5x570mm Fiber Glass FRP WIFI High Gain Omni Antenna 2.4G 8dBi 18.5x570mm
