Diy Omnidirectional Wifi Antenna 5dbi Fiberglass Antenna WIFI Dual Band 2.4 & 5.8GHz 20x350mm
Diy Omnidirectional Wifi Antenna 5dbi Fiberglass Antenna WIFI Dual Band 2.4 & 5.8GHz 20x350mm
Diy Omnidirectional Wifi Antenna 5dbi Fiberglass Antenna WIFI Dual Band 2.4 & 5.8GHz 20x350mm
Diy Omnidirectional Wifi Antenna 5dbi Fiberglass Antenna WIFI Dual Band 2.4 & 5.8GHz 20x350mm
Specifications
Brand Name :
Leenz
Model Number :
LZANT-10188-A
Certification :
RoHs
Place of Origin :
China
MOQ :
10
Payment Terms :
T/T
Supply Ability :
5K per day
Delivery Time :
15 days
Frequency :
2400-2500MHz; 5150-5850MHz
VSWR :
<1.6
Peak Gain :
4.5dBi/5dBi
Impedance :
50
Description

Outdoor Waterproof Omnidirectional Antenna Fiberglass Antenna WIFI Dual Band 5dBi 2.4 & 5.8GHz 20x350mm

1. Specification

A. Electrical Characteristics
Frequency 2400-2500MHz 5150-5850MHz
Impedance 50 Ohm 50 Ohm
S.W.R. <1.6 <1.6
Gain 4.5dBi 5dBi
Efficiency ≈78% ≈75%
Horizontal Beamwidth 360° 360°
Vertical Beamwidth 35°±5° 20°±5°
Polarization Linear Linear
Max Power 50W 50W
B. Material & Mechanical Characteristics
Connector Type N connector
Dimension Φ20*350mm
Weight 0.122Kg
Radome material Fiberglass
C. Environmental
Operation Temperature - 40 ˚C ~ + 80 ˚C
Storage Temperature - 40 ˚C ~ + 80 ˚C

2. Antenna - S Parameter Test Data

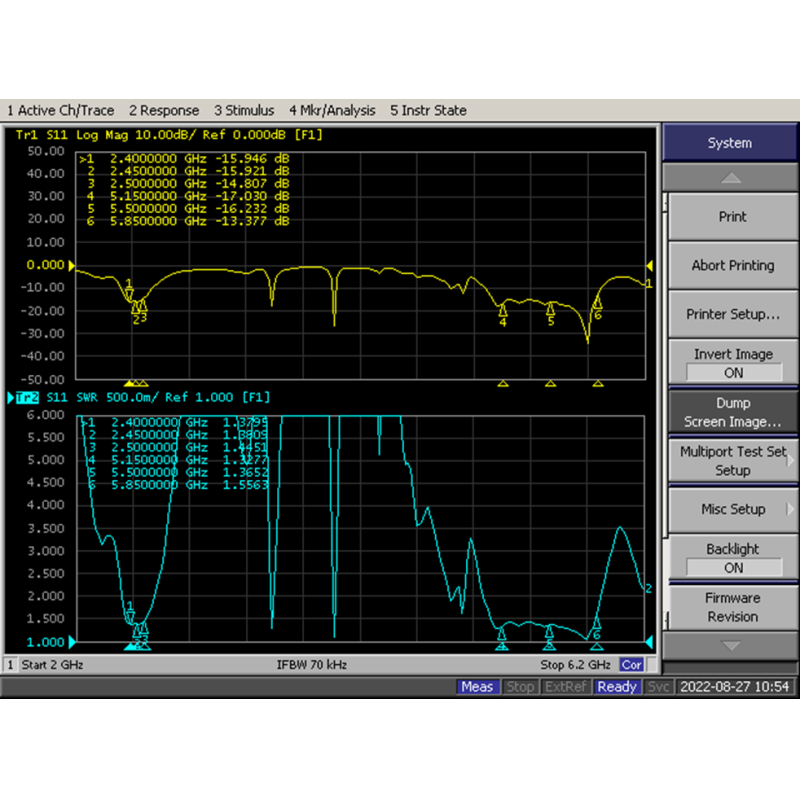

2.1 VSWR

Diy Omnidirectional Wifi Antenna 5dbi Fiberglass Antenna WIFI Dual Band 2.4 & 5.8GHz 20x350mm

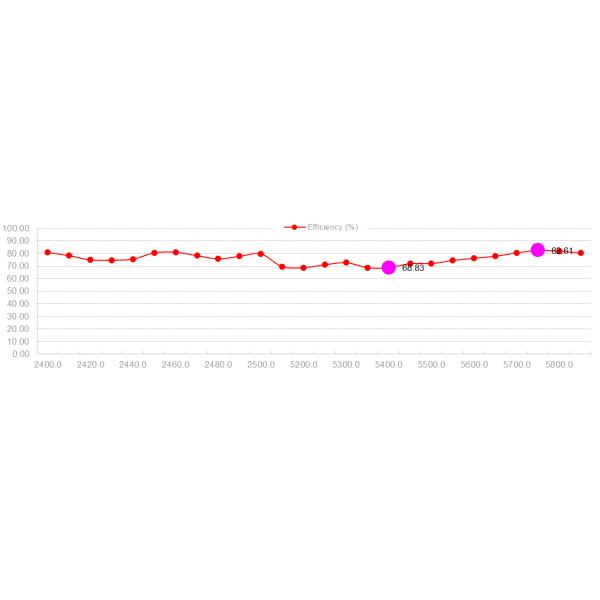

2.2 Total Efficiency & Gain:

Frequency(MHz) 2400.0 2410.0 2420.0 2430.0 2440.0 2450.0 2460.0 2470.0 2480.0 2490.0 2500.0
Gain (dBi) 4.54 4.38 4.11 4.02 3.93 4.17 4.19 4.07 3.82 3.84 3.98
Efficiency (%) 80.99 78.47 75.08 74.82 75.66 80.63 81.14 78.48 75.85 77.90 79.82
Frequency(MHz) 5150 5200 5250 5300 5350 5400 5450 5500 5550 5600 5650 5700 5750 5800 5850
Gain (dBi) 4.44 4.33 4.17 4.18 4.20 4.39 4.75 4.51 4.10 3.82 3.68 4.06 4.24 4.67 5.30
Efficiency (%) 69.76 68.94 71.19 72.88 68.93 68.83 72.16 72.23 74.59 76.46 77.99 80.71 82.61 81.99 80.57
Diy Omnidirectional Wifi Antenna 5dbi Fiberglass Antenna WIFI Dual Band 2.4 & 5.8GHz 20x350mm
2.3 Radiation Pattern

3D 2D-Horizontal 2D-Vertical
2400MHz Diy Omnidirectional Wifi Antenna 5dbi Fiberglass Antenna WIFI Dual Band 2.4 & 5.8GHz 20x350mm Diy Omnidirectional Wifi Antenna 5dbi Fiberglass Antenna WIFI Dual Band 2.4 & 5.8GHz 20x350mm Diy Omnidirectional Wifi Antenna 5dbi Fiberglass Antenna WIFI Dual Band 2.4 & 5.8GHz 20x350mm
2450MHz Diy Omnidirectional Wifi Antenna 5dbi Fiberglass Antenna WIFI Dual Band 2.4 & 5.8GHz 20x350mm Diy Omnidirectional Wifi Antenna 5dbi Fiberglass Antenna WIFI Dual Band 2.4 & 5.8GHz 20x350mm Diy Omnidirectional Wifi Antenna 5dbi Fiberglass Antenna WIFI Dual Band 2.4 & 5.8GHz 20x350mm
2500MHz Diy Omnidirectional Wifi Antenna 5dbi Fiberglass Antenna WIFI Dual Band 2.4 & 5.8GHz 20x350mm Diy Omnidirectional Wifi Antenna 5dbi Fiberglass Antenna WIFI Dual Band 2.4 & 5.8GHz 20x350mm Diy Omnidirectional Wifi Antenna 5dbi Fiberglass Antenna WIFI Dual Band 2.4 & 5.8GHz 20x350mm
3D 2D-Horizontal 2D-Vertical
5150MHz Diy Omnidirectional Wifi Antenna 5dbi Fiberglass Antenna WIFI Dual Band 2.4 & 5.8GHz 20x350mm Diy Omnidirectional Wifi Antenna 5dbi Fiberglass Antenna WIFI Dual Band 2.4 & 5.8GHz 20x350mm Diy Omnidirectional Wifi Antenna 5dbi Fiberglass Antenna WIFI Dual Band 2.4 & 5.8GHz 20x350mm
5500MHz Diy Omnidirectional Wifi Antenna 5dbi Fiberglass Antenna WIFI Dual Band 2.4 & 5.8GHz 20x350mm Diy Omnidirectional Wifi Antenna 5dbi Fiberglass Antenna WIFI Dual Band 2.4 & 5.8GHz 20x350mm Diy Omnidirectional Wifi Antenna 5dbi Fiberglass Antenna WIFI Dual Band 2.4 & 5.8GHz 20x350mm
5850MHz Diy Omnidirectional Wifi Antenna 5dbi Fiberglass Antenna WIFI Dual Band 2.4 & 5.8GHz 20x350mm Diy Omnidirectional Wifi Antenna 5dbi Fiberglass Antenna WIFI Dual Band 2.4 & 5.8GHz 20x350mm Diy Omnidirectional Wifi Antenna 5dbi Fiberglass Antenna WIFI Dual Band 2.4 & 5.8GHz 20x350mm
