Outdoor Wifi Omnidirectional Antenna 9dBi Fiberglass Antenna WIFI 5.8GHz 18.5x355mm
Outdoor Wifi Omnidirectional Antenna 9dBi Fiberglass Antenna WIFI 5.8GHz 18.5x355mm
Outdoor Wifi Omnidirectional Antenna 9dBi Fiberglass Antenna WIFI 5.8GHz 18.5x355mm
Outdoor Wifi Omnidirectional Antenna 9dBi Fiberglass Antenna WIFI 5.8GHz 18.5x355mm
Specifications
Brand Name :
Leenz
Model Number :
LZANT-10372-A
Certification :
RoHs
Place of Origin :
China
MOQ :
10
Payment Terms :
T/T
Supply Ability :
5K per day
Delivery Time :
15 days
Frequency :
5150-5850MHz
VSWR :
<2.0
Peak Gain :
9dBi
Impedance :
50
Description

Outdoor Waterproof Omnidirectional Antenna Fiberglass Antenna WIFI 5.8GHz 9dBi 18.5x355

1. Specification

A. Electrical Characteristics
Frequency 5150-5850MHz
Impedance 50 Ohm
S.W.R. <2.0
Gain 9dBi
Efficiency ≈67%
Polarization Linear
Horizontal Beamwidth 360°
Vertical Beamwidth 12°±3°
Max Power 50W
B. Material & Mechanical Characteristics
Connector Type N connector
Dimension Φ18.5*355mm
Weight 0.153Kg
Radome Materials Fiberglass
C. Environmental
Operation Temperature - 40 ˚C ~ + 80 ˚C
Storage Temperature - 40 ˚C ~ + 80 ˚C

2. Antenna - S Parameter Test Data

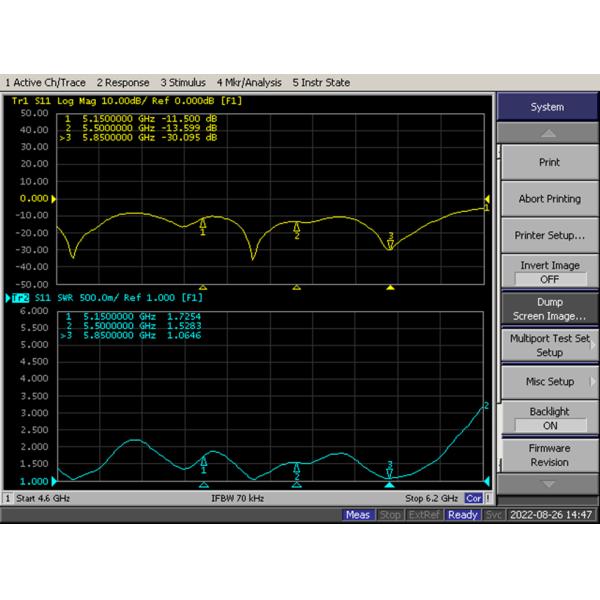

2.1 VSWR

Outdoor Wifi Omnidirectional Antenna 9dBi Fiberglass Antenna WIFI 5.8GHz 18.5x355mm

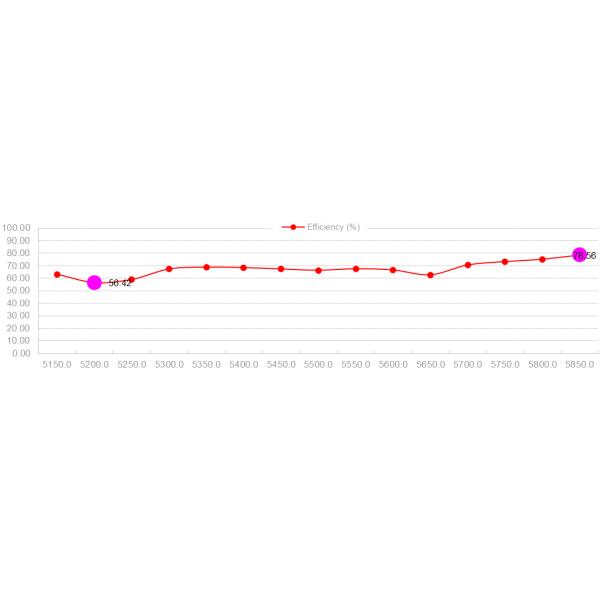

2.2 Total Efficiency & Gain:

Frequency(MHz) 5150 5200 5250 5300 5350 5400 5450 5500 5550 5600 5650 5700 5750 5800 5850
Gain (dBi) 7.42 7.07 7.25 7.83 7.72 7.60 7.39 7.10 7.00 6.82 7.19 8.40 8.74 8.89 8.97
Efficiency (%) 63.18 56.42 58.94 67.39 68.85 68.47 67.40 66.33 67.58 66.57 62.71 70.69 73.30 75.22 78.56
Outdoor Wifi Omnidirectional Antenna 9dBi Fiberglass Antenna WIFI 5.8GHz 18.5x355mm
2.3 Radiation Pattern

3D 2D-Horizontal 2D-Vertical
5150MHz Outdoor Wifi Omnidirectional Antenna 9dBi Fiberglass Antenna WIFI 5.8GHz 18.5x355mm Outdoor Wifi Omnidirectional Antenna 9dBi Fiberglass Antenna WIFI 5.8GHz 18.5x355mm Outdoor Wifi Omnidirectional Antenna 9dBi Fiberglass Antenna WIFI 5.8GHz 18.5x355mm
5500MHz Outdoor Wifi Omnidirectional Antenna 9dBi Fiberglass Antenna WIFI 5.8GHz 18.5x355mm Outdoor Wifi Omnidirectional Antenna 9dBi Fiberglass Antenna WIFI 5.8GHz 18.5x355mm Outdoor Wifi Omnidirectional Antenna 9dBi Fiberglass Antenna WIFI 5.8GHz 18.5x355mm
5850MHz Outdoor Wifi Omnidirectional Antenna 9dBi Fiberglass Antenna WIFI 5.8GHz 18.5x355mm Outdoor Wifi Omnidirectional Antenna 9dBi Fiberglass Antenna WIFI 5.8GHz 18.5x355mm Outdoor Wifi Omnidirectional Antenna 9dBi Fiberglass Antenna WIFI 5.8GHz 18.5x355mm
