Long Range Omnidirectional Outdoor Wifi Antenna 1.5dBi Fiberglass Antenna 868MHZ 18.5x240mm
Long Range Omnidirectional Outdoor Wifi Antenna 1.5dBi Fiberglass Antenna 868MHZ 18.5x240mm
Long Range Omnidirectional Outdoor Wifi Antenna 1.5dBi Fiberglass Antenna 868MHZ 18.5x240mm
Long Range Omnidirectional Outdoor Wifi Antenna 1.5dBi Fiberglass Antenna 868MHZ 18.5x240mm
Specifications
Brand Name :
Leenz
Model Number :
LZANT-10423-A
Certification :
RoHs
Place of Origin :
China
MOQ :
10
Payment Terms :
T/T
Supply Ability :
5K per day
Delivery Time :
15 days
Frequency :
868MHz
VSWR :
<1.5
Peak Gain :
1.5dBi
Impedance :
50
Description

Outdoor Waterproof Omnidirectional Antenna IP67 Fiberglass Antenna 868MHZ Antenna 1.5dBi 18.5x240

1. Specification

A. Electrical Characteristics
Frequency 868MHz
Impedance 50 Ohm
S.W.R. <1.5
Gain 1.5dBi
Efficiency ≈72%
Horizontal Beamwidth 360°
Vertical Beamwidth 87°
Polarization Linear
Max Power 50W
B. Material & Mechanical Characteristics

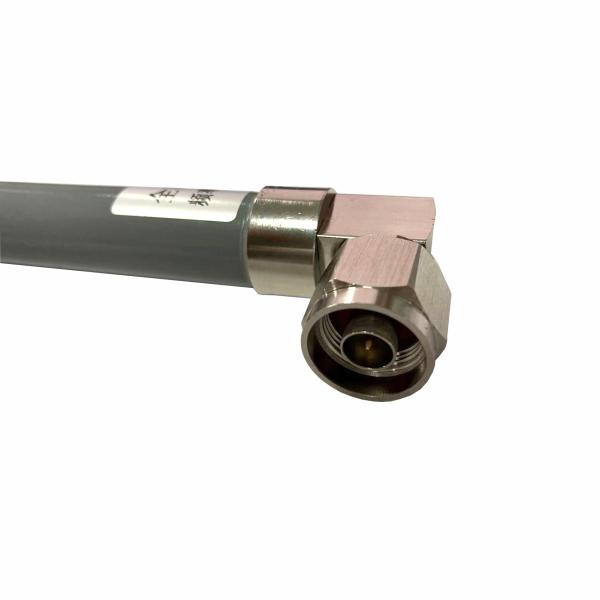

Connector Type N connector
Dimension Φ18.5*240mm
Weight 0.134Kg
Radome material Fiberglass
C. Environmental
Operation Temperature - 40 ˚C ~ + 80 ˚C
Storage Temperature - 40 ˚C ~ + 80 ˚C

2. Antenna - S Parameter Test Data

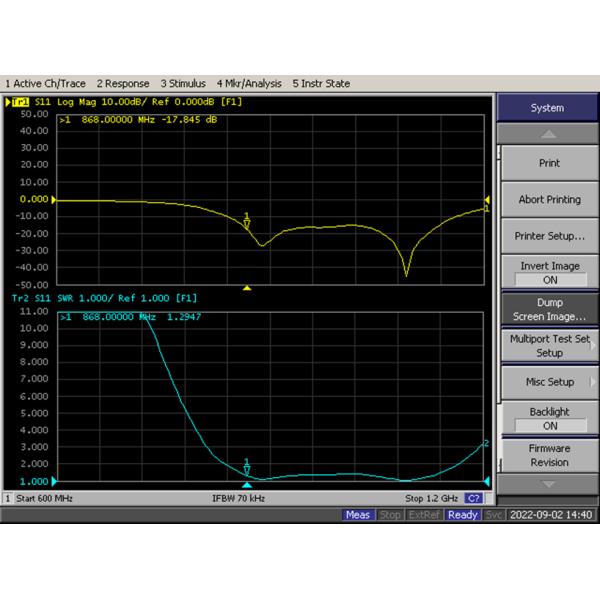

2.1 VSWR

Long Range Omnidirectional Outdoor Wifi Antenna 1.5dBi Fiberglass Antenna 868MHZ 18.5x240mm

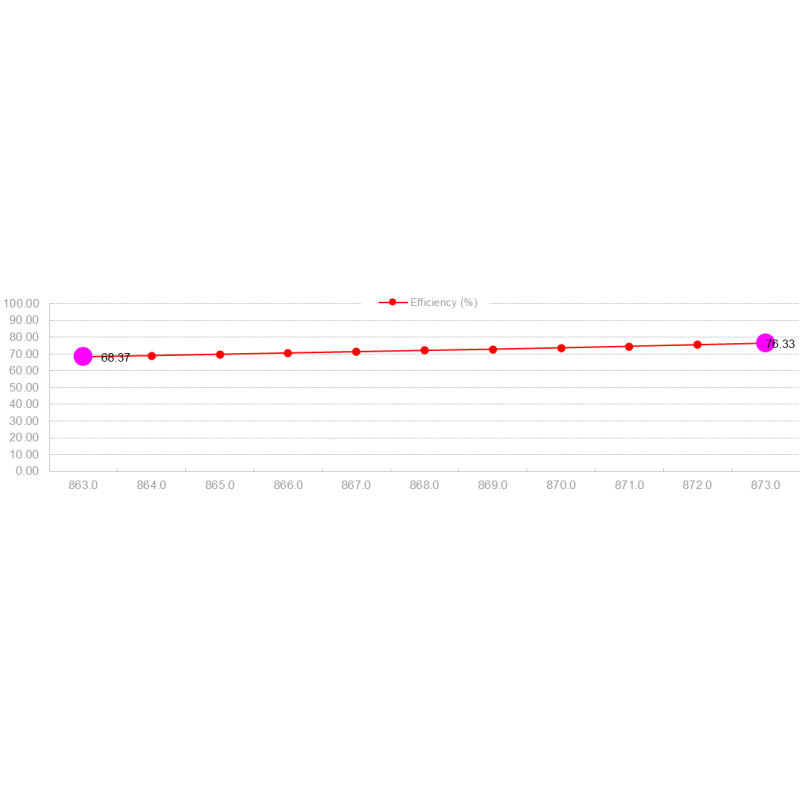

2.2 Total Efficiency & Gain:

Frequency(MHz) 863.0 864.0 865.0 866.0 867.0 868.0 869.0 870.0 871.0 872.0 873.0
Gain (dBi) 1.36 1.38 1.40 1.42 1.44 1.46 1.48 1.50 1.53 1.55 1.56
Efficiency (%) 68.37 69.06 69.83 70.61 71.37 72.10 72.84 73.62 74.54 75.46 76.33
Long Range Omnidirectional Outdoor Wifi Antenna 1.5dBi Fiberglass Antenna 868MHZ 18.5x240mm
2.3 Radiation Pattern

3D 2D-Horizontal 2D-Vertical
863MHz Long Range Omnidirectional Outdoor Wifi Antenna 1.5dBi Fiberglass Antenna 868MHZ 18.5x240mm Long Range Omnidirectional Outdoor Wifi Antenna 1.5dBi Fiberglass Antenna 868MHZ 18.5x240mm Long Range Omnidirectional Outdoor Wifi Antenna 1.5dBi Fiberglass Antenna 868MHZ 18.5x240mm
868MHz Long Range Omnidirectional Outdoor Wifi Antenna 1.5dBi Fiberglass Antenna 868MHZ 18.5x240mm Long Range Omnidirectional Outdoor Wifi Antenna 1.5dBi Fiberglass Antenna 868MHZ 18.5x240mm Long Range Omnidirectional Outdoor Wifi Antenna 1.5dBi Fiberglass Antenna 868MHZ 18.5x240mm
873MHz Long Range Omnidirectional Outdoor Wifi Antenna 1.5dBi Fiberglass Antenna 868MHZ 18.5x240mm Long Range Omnidirectional Outdoor Wifi Antenna 1.5dBi Fiberglass Antenna 868MHZ 18.5x240mm Long Range Omnidirectional Outdoor Wifi Antenna 1.5dBi Fiberglass Antenna 868MHZ 18.5x240mm
