omnidirectional wifi antenna outdoor RFID Antenna 915MHz Fiberglass Antenna 900-930MHz 4.5dB
omnidirectional wifi antenna outdoor RFID Antenna 915MHz Fiberglass Antenna 900-930MHz 4.5dB
omnidirectional wifi antenna outdoor RFID Antenna 915MHz Fiberglass Antenna 900-930MHz 4.5dB
omnidirectional wifi antenna outdoor RFID Antenna 915MHz Fiberglass Antenna 900-930MHz 4.5dB
Specifications
Brand Name :
Leenz
Model Number :
LZANT-10089-A
Certification :
RoHs
Place of Origin :
China
MOQ :
10
Payment Terms :
T/T
Supply Ability :
5K per day
Delivery Time :
15 days
Frequency :
900-930MHz
VSWR :
<1.5
Peak Gain :
4.5dBi
Impedance :
50
Description

Outdoor Waterproof Omnidirectional Antenna IP67 RFID Antenna 915MHz Antenna Fiberglass Antenna 900-930MHz 4.5dB

1. Specification

A. Electrical Characteristics
Frequency 900-930MHz
S.W.R. <= 1.5
Antenna Gain 4.5dBi
Efficiency ≈87%
Polarization Linear
Horizontal Beamwidth 360°
Vertical Beamwidth 35°
Impedance 50 Ohm
Max Power 50W
B. Material & Mechanical Characteristics
Connector Type N connector
Dimension Φ20*600±5mm
Weight 0.235Kg
Radome material Fiberglass
C. Environmental
Operation Temperature - 40 ˚C ~ + 80 ˚C
Storage Temperature - 40 ˚C ~ + 80 ˚C
Rated Wind Velocity 36.9m/s
Lighting Protection DC Ground

2. Antenna - S Parameter Test Data

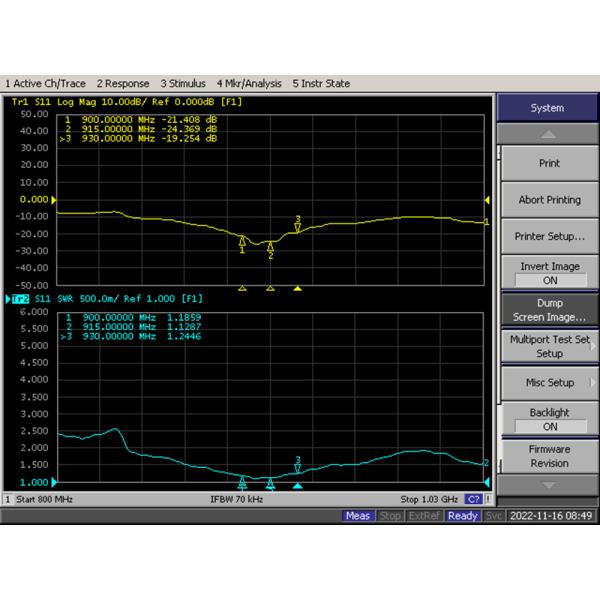

2.1 VSWR

omnidirectional wifi antenna outdoor RFID Antenna 915MHz Fiberglass Antenna 900-930MHz 4.5dB

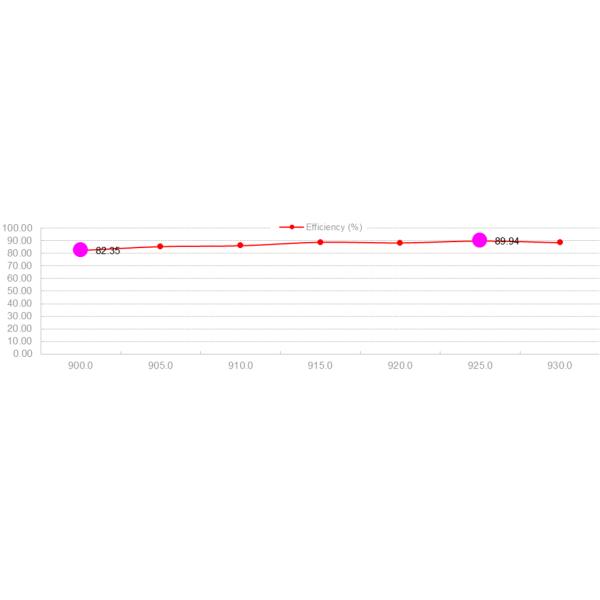

2.2 Total Efficiency & Gain:

Frequency(MHz) 900.0 905.0 910.0 915.0 920.0 925.0 930.0
Gain (dBi) 4.0 4.13 4.27 4.44 4.45 4.57 4.55
Efficiency (%) 82.35 85.46 86.14 88.96 88.38 89.94 88.56
omnidirectional wifi antenna outdoor RFID Antenna 915MHz Fiberglass Antenna 900-930MHz 4.5dB
2.3 Radiation Pattern

3D 2D-Horizontal 2D-Vertical
900MHz omnidirectional wifi antenna outdoor RFID Antenna 915MHz Fiberglass Antenna 900-930MHz 4.5dB omnidirectional wifi antenna outdoor RFID Antenna 915MHz Fiberglass Antenna 900-930MHz 4.5dB omnidirectional wifi antenna outdoor RFID Antenna 915MHz Fiberglass Antenna 900-930MHz 4.5dB
915MHz omnidirectional wifi antenna outdoor RFID Antenna 915MHz Fiberglass Antenna 900-930MHz 4.5dB omnidirectional wifi antenna outdoor RFID Antenna 915MHz Fiberglass Antenna 900-930MHz 4.5dB omnidirectional wifi antenna outdoor RFID Antenna 915MHz Fiberglass Antenna 900-930MHz 4.5dB
930MHz omnidirectional wifi antenna outdoor RFID Antenna 915MHz Fiberglass Antenna 900-930MHz 4.5dB omnidirectional wifi antenna outdoor RFID Antenna 915MHz Fiberglass Antenna 900-930MHz 4.5dB omnidirectional wifi antenna outdoor RFID Antenna 915MHz Fiberglass Antenna 900-930MHz 4.5dB
