868 Mhz Omnidirectional Antenna IP67 2dBi Fiberglass Antenna 824-894MHz 20x250mm
868 Mhz Omnidirectional Antenna IP67 2dBi Fiberglass Antenna 824-894MHz 20x250mm
868 Mhz Omnidirectional Antenna IP67 2dBi Fiberglass Antenna 824-894MHz 20x250mm
868 Mhz Omnidirectional Antenna IP67 2dBi Fiberglass Antenna 824-894MHz 20x250mm
868 Mhz Omnidirectional Antenna IP67 2dBi Fiberglass Antenna 824-894MHz 20x250mm
868 Mhz Omnidirectional Antenna IP67 2dBi Fiberglass Antenna 824-894MHz 20x250mm
Specifications
Brand Name :
Leenz
Model Number :
LZANT-10621-A
Certification :
RoHs
Place of Origin :
China
MOQ :
10
Payment Terms :
T/T
Supply Ability :
5K per day
Delivery Time :
15 days
Frequency :
824-894MHz
VSWR :
<2.0
Peak Gain :
2dBi
Impedance :
50
Description

Outdoor Waterproof Omnidirectional Antenna IP67 Fiberglass Antenna 824-894MHz Antenna 868MHZ Antenna 2dBi 20x250

1. Specification

A. Electrical Characteristics
Frequency 824-894MHz
Impedance 50 Ohm
S.W.R. <2
Gain 2dBi
Efficiency ≈76%
Horizontal Beamwidth 360°
Vertical Beamwidth 83-93°
Polarization Linear
Max Power 50W
B. Material & Mechanical Characteristics
Connector Type N connector
Dimension Φ20*250mm
Weight 0.28Kg
Radome material Fiberglass
C. Environmental
Operation Temperature - 40 ˚C ~ + 80 ˚C
Storage Temperature - 40 ˚C ~ + 80 ˚C

2. Antenna - S Parameter Test Data

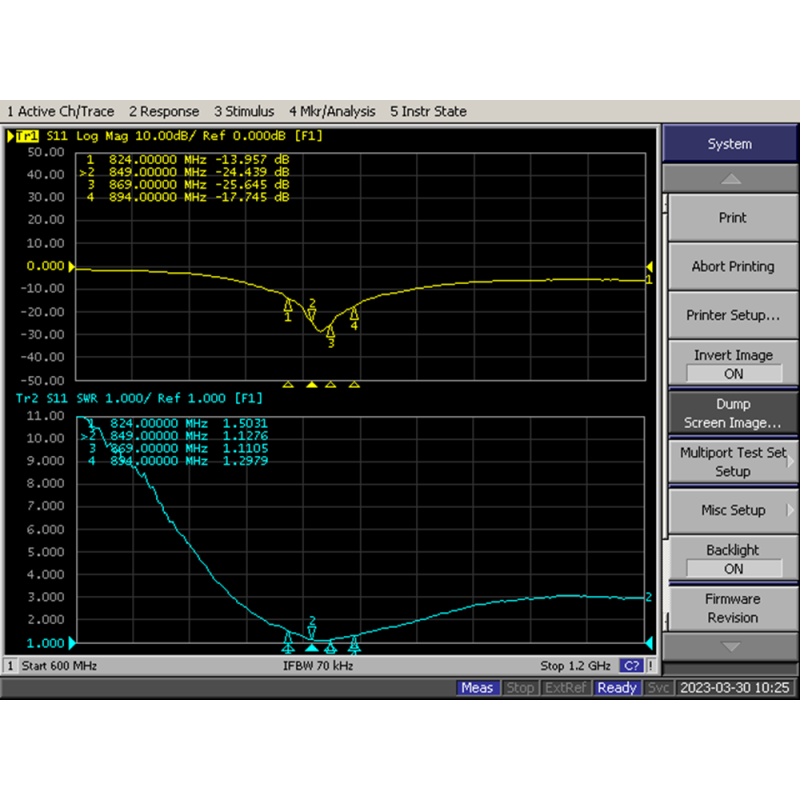

2.1 VSWR

868 Mhz Omnidirectional Antenna IP67 2dBi Fiberglass Antenna 824-894MHz 20x250mm

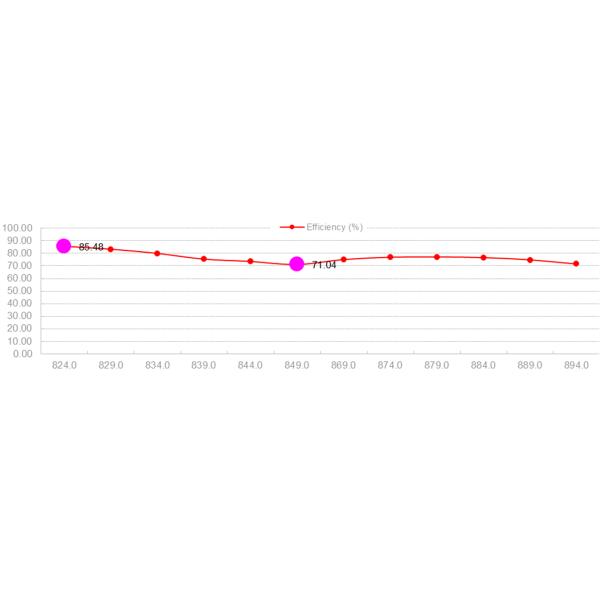

2.2 Total Efficiency & Gain:

Frequency(MHz) 824.0 829.0 834.0 839.0 844.0 849.0
Gain (dBi) 1.88 1.73 1.55 1.33 1.24 1.14
Efficiency (%) 85.48 83.22 79.87 75.30 73.43 71.04
Frequency(MHz) 869.0 874.0 879.0 884.0 889.0 894.0
Gain (dBi) 1.68 1.85 1.91 1.92 1.85 1.72
Efficiency (%) 74.95 76.83 77.04 76.49 74.71 71.43
868 Mhz Omnidirectional Antenna IP67 2dBi Fiberglass Antenna 824-894MHz 20x250mm

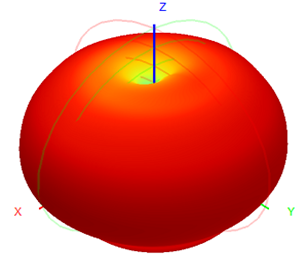

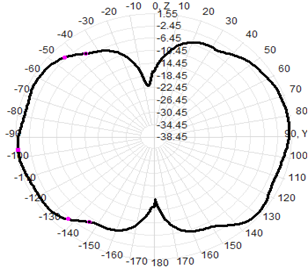

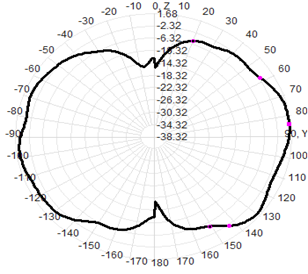

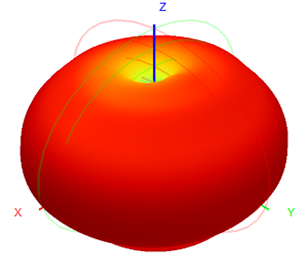

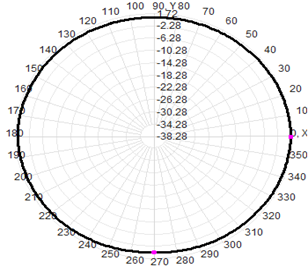

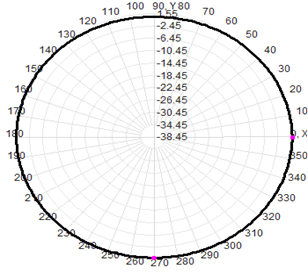

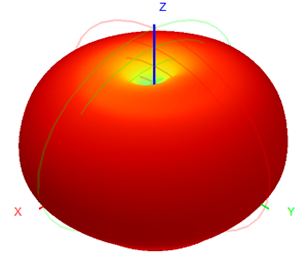

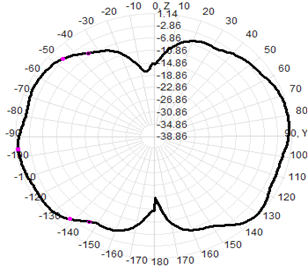

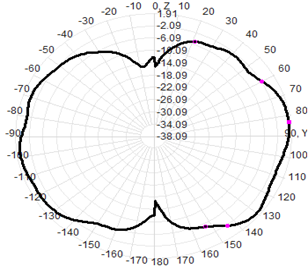

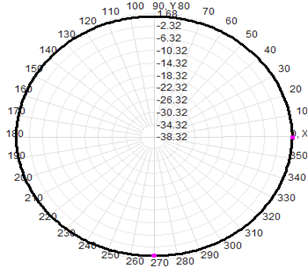

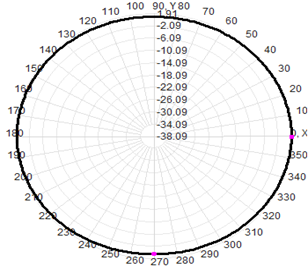

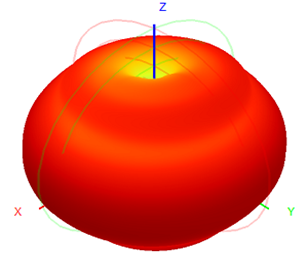

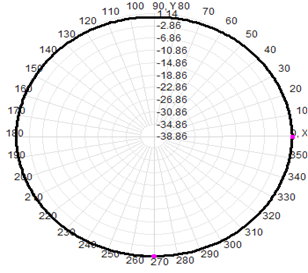

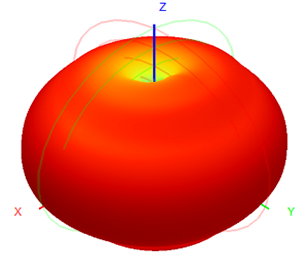

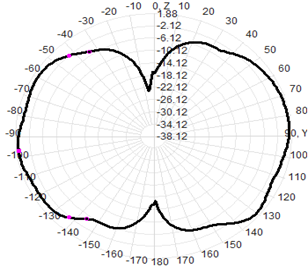

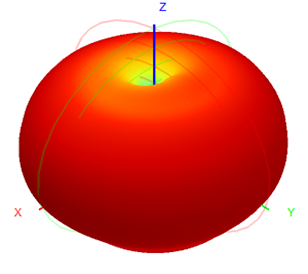

2.3 Radiation Pattern

3D 2D-Horizontal 2D-Vertical
824MHz 868 Mhz Omnidirectional Antenna IP67 2dBi Fiberglass Antenna 824-894MHz 20x250mm 868 Mhz Omnidirectional Antenna IP67 2dBi Fiberglass Antenna 824-894MHz 20x250mm 868 Mhz Omnidirectional Antenna IP67 2dBi Fiberglass Antenna 824-894MHz 20x250mm
834MHz 868 Mhz Omnidirectional Antenna IP67 2dBi Fiberglass Antenna 824-894MHz 20x250mm 868 Mhz Omnidirectional Antenna IP67 2dBi Fiberglass Antenna 824-894MHz 20x250mm 868 Mhz Omnidirectional Antenna IP67 2dBi Fiberglass Antenna 824-894MHz 20x250mm
849MHz 868 Mhz Omnidirectional Antenna IP67 2dBi Fiberglass Antenna 824-894MHz 20x250mm 868 Mhz Omnidirectional Antenna IP67 2dBi Fiberglass Antenna 824-894MHz 20x250mm 868 Mhz Omnidirectional Antenna IP67 2dBi Fiberglass Antenna 824-894MHz 20x250mm
3D 2D-Horizontal 2D-Vertical
869MHz 868 Mhz Omnidirectional Antenna IP67 2dBi Fiberglass Antenna 824-894MHz 20x250mm 868 Mhz Omnidirectional Antenna IP67 2dBi Fiberglass Antenna 824-894MHz 20x250mm 868 Mhz Omnidirectional Antenna IP67 2dBi Fiberglass Antenna 824-894MHz 20x250mm
879MHz 868 Mhz Omnidirectional Antenna IP67 2dBi Fiberglass Antenna 824-894MHz 20x250mm 868 Mhz Omnidirectional Antenna IP67 2dBi Fiberglass Antenna 824-894MHz 20x250mm 868 Mhz Omnidirectional Antenna IP67 2dBi Fiberglass Antenna 824-894MHz 20x250mm
894MHz 868 Mhz Omnidirectional Antenna IP67 2dBi Fiberglass Antenna 824-894MHz 20x250mm 868 Mhz Omnidirectional Antenna IP67 2dBi Fiberglass Antenna 824-894MHz 20x250mm 868 Mhz Omnidirectional Antenna IP67 2dBi Fiberglass Antenna 824-894MHz 20x250mm
