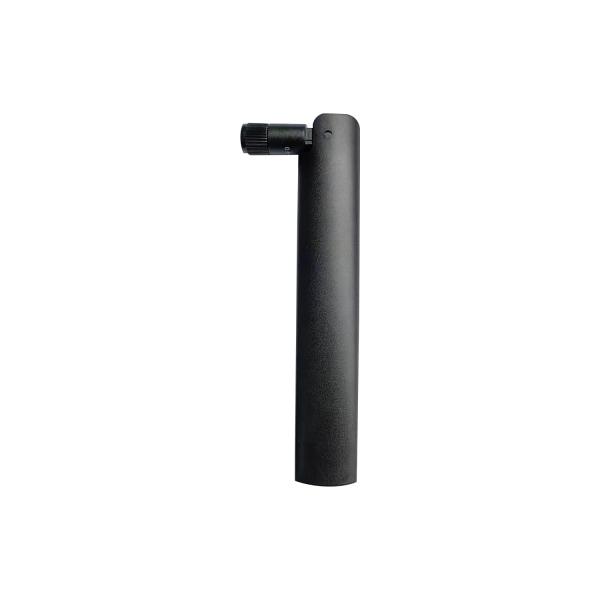

High Gain Rubber Duck Antenna 4G 5G Antenna 600-6000MHz 4dBi 10x135
High Gain Rubber Duck Antenna 4G 5G Antenna 600-6000MHz 4dBi 10x135
High Gain Rubber Duck Antenna 4G 5G Antenna 600-6000MHz 4dBi 10x135
High Gain Rubber Duck Antenna 4G 5G Antenna 600-6000MHz 4dBi 10x135
High Gain Rubber Duck Antenna 4G 5G Antenna 600-6000MHz 4dBi 10x135
High Gain Rubber Duck Antenna 4G 5G Antenna 600-6000MHz 4dBi 10x135
Specifications
Brand Name :
Leenz
Model Number :
LZANT-10135-B
Certification :
RoHs
Place of Origin :
China
MOQ :
10
Payment Terms :
T/T
Supply Ability :
5K per day
Delivery Time :
15 days
Frequency :
617-960MHZ, 1575-2690MHZ, 3300-6000MHz
VSWR :
<3.0
Peak Gain :
2dBi
Impedance :
50
Description

Indoor Antenna External Antenna Rubber Duck Antenna Multi Band 4G 5G Antenna 600-6000MHz 4dBi 10x135

1. Specification

A. Electrical Characteristics
Frequency 617-960MHZ, 1575-2690MHZ, 3300-6000MHz
S.W.R. <= 3.0
Antenna Gain

2.0dBi @ 617-960MHZ

2.0dBi @ 1575-2690MHZ

2.5dBi @ 3300-6000MHZ
Efficiency ≈65%
Polarization Linear
Impedance 50 Ohm
B. Material & Mechanical Characteristics
Connector Type SMA Plug
Dimension 10*135.6mm
Weight 0.01Kg
C. Environmental
Operation Temperature - 40 ˚C ~ + 80 ˚C
Storage Temperature - 40 ˚C ~ + 80 ˚C

2. Antenna - S Parameter Test Data

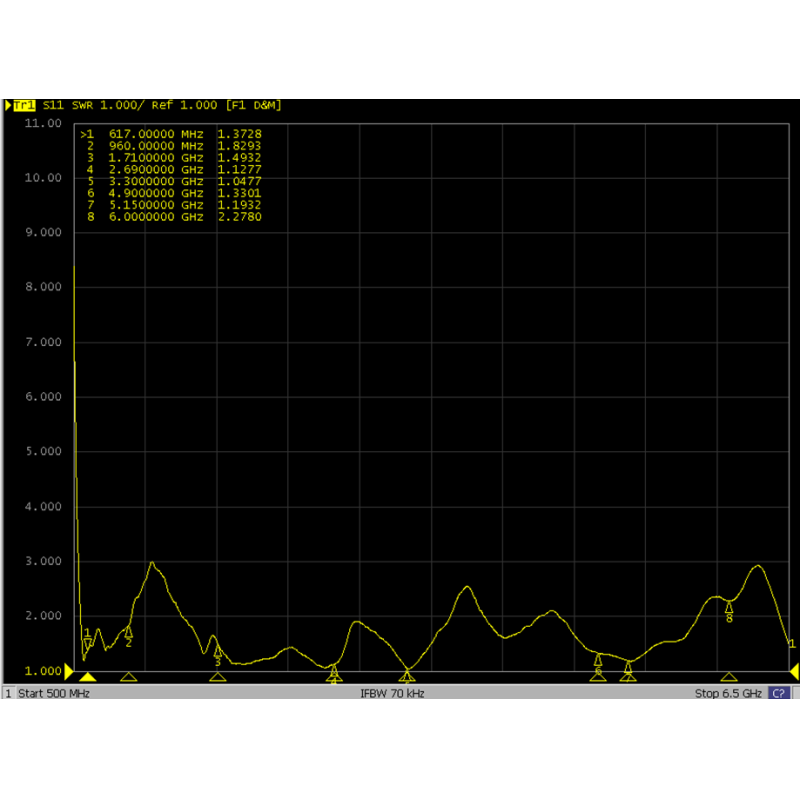

2.1 VSWR

High Gain Rubber Duck Antenna 4G 5G Antenna 600-6000MHz 4dBi 10x135

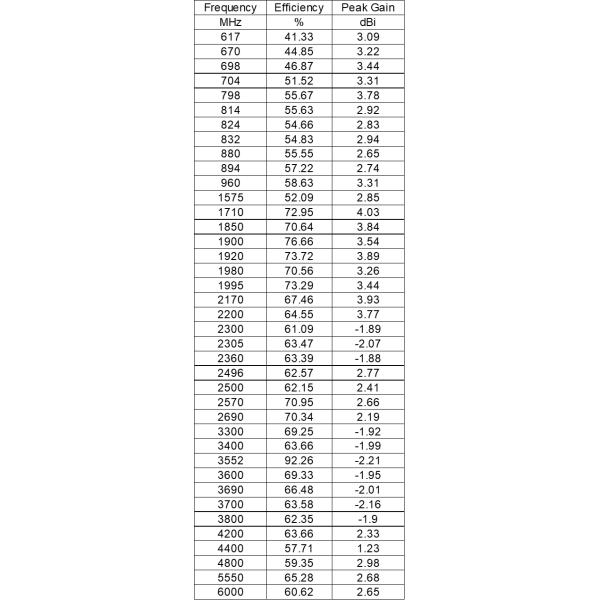

2.2 Total Efficiency & Gain

High Gain Rubber Duck Antenna 4G 5G Antenna 600-6000MHz 4dBi 10x135

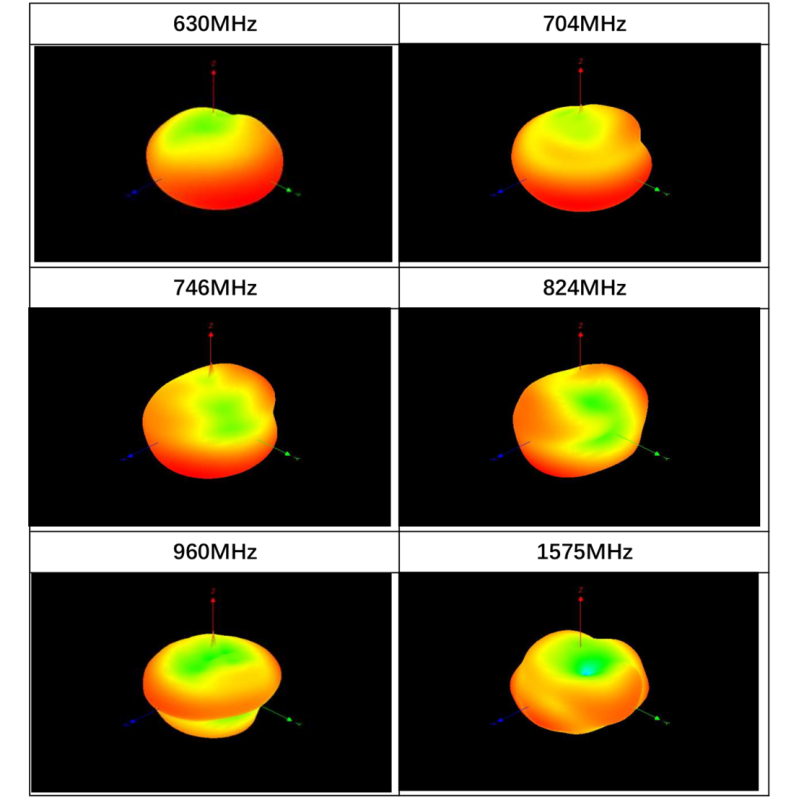

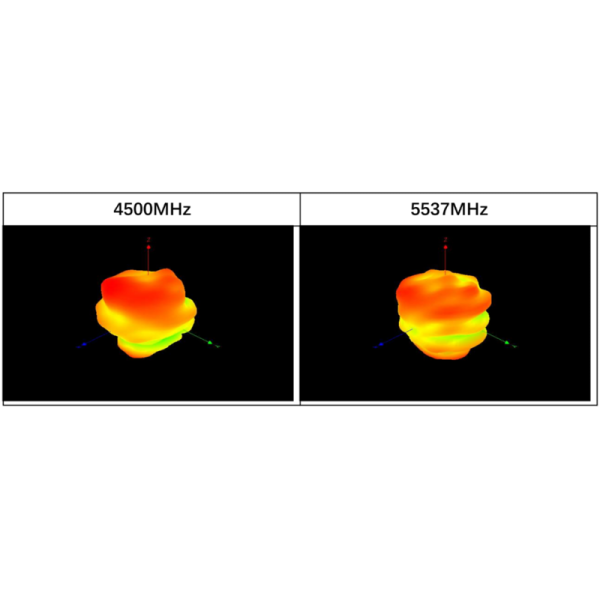

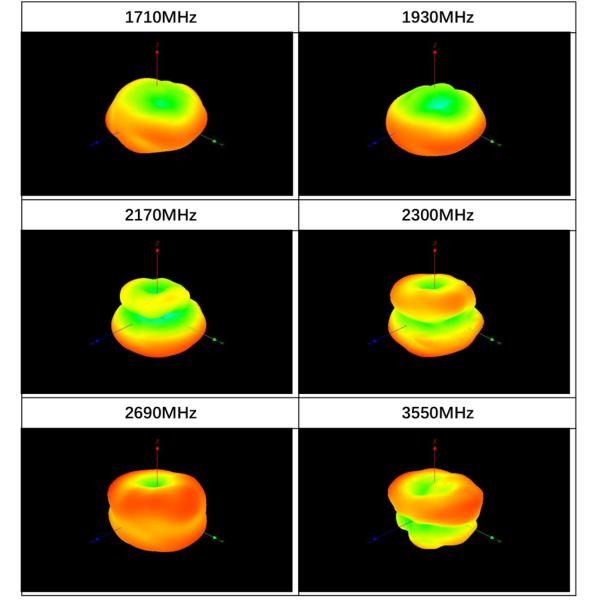

2.3 Radiation Pattern

High Gain Rubber Duck Antenna 4G 5G Antenna 600-6000MHz 4dBi 10x135High Gain Rubber Duck Antenna 4G 5G Antenna 600-6000MHz 4dBi 10x135High Gain Rubber Duck Antenna 4G 5G Antenna 600-6000MHz 4dBi 10x135
