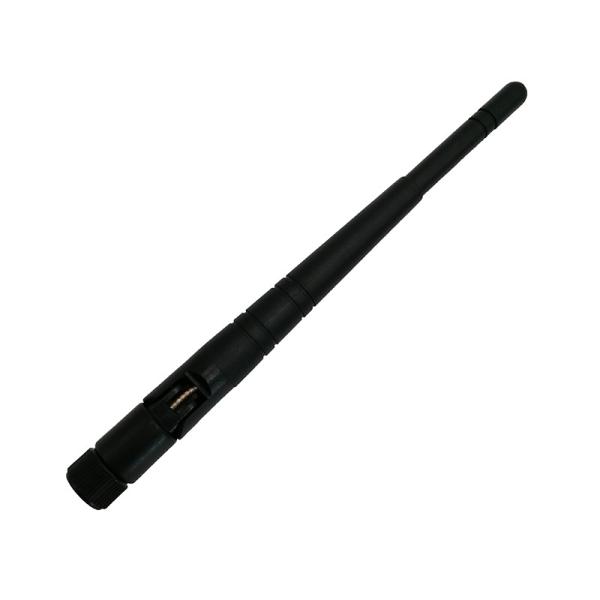

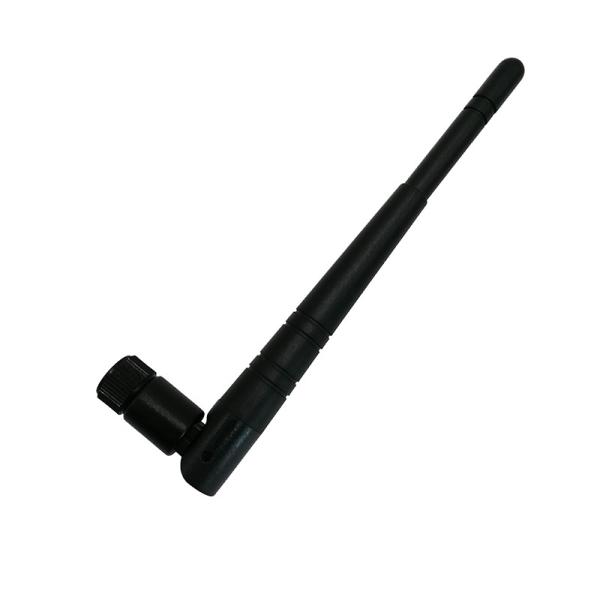

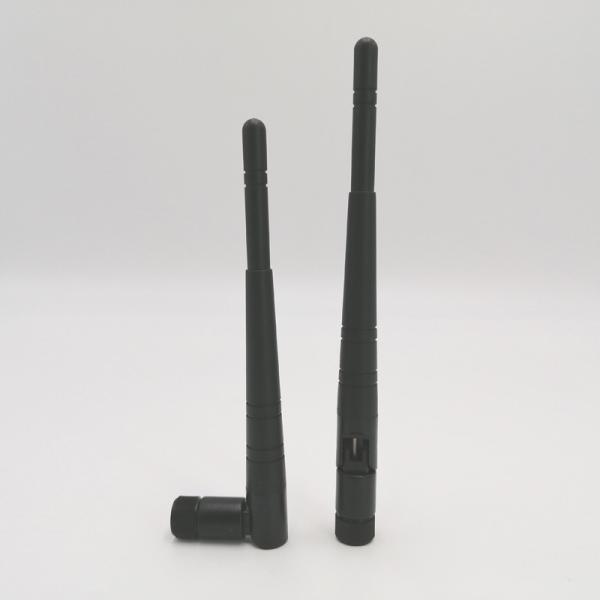

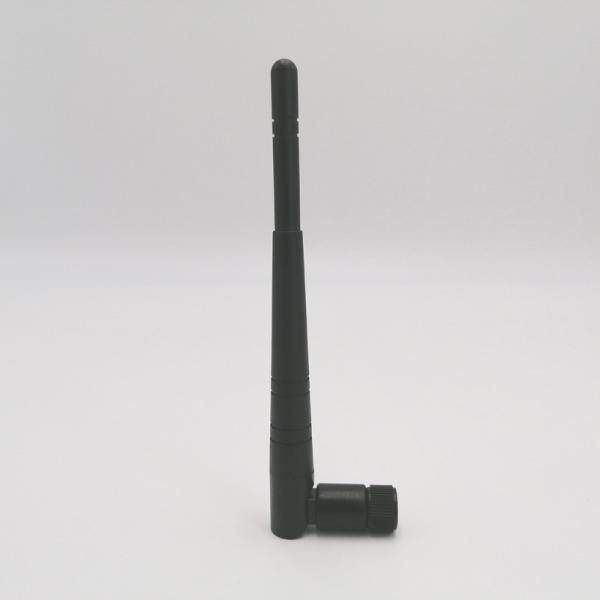

2.4 Ghz Outdoor Antenna 2400-2500M 157mm Omnidirectional Router External Folding Glue Stick Antenna
2.4 Ghz Outdoor Antenna 2400-2500M 157mm Omnidirectional Router External Folding Glue Stick Antenna
2.4 Ghz Outdoor Antenna 2400-2500M 157mm Omnidirectional Router External Folding Glue Stick Antenna
2.4 Ghz Outdoor Antenna 2400-2500M 157mm Omnidirectional Router External Folding Glue Stick Antenna
2.4 Ghz Outdoor Antenna 2400-2500M 157mm Omnidirectional Router External Folding Glue Stick Antenna
2.4 Ghz Outdoor Antenna 2400-2500M 157mm Omnidirectional Router External Folding Glue Stick Antenna
2.4 Ghz Outdoor Antenna 2400-2500M 157mm Omnidirectional Router External Folding Glue Stick Antenna
2.4 Ghz Outdoor Antenna 2400-2500M 157mm Omnidirectional Router External Folding Glue Stick Antenna
2.4 Ghz Outdoor Antenna 2400-2500M 157mm Omnidirectional Router External Folding Glue Stick Antenna
2.4 Ghz Outdoor Antenna 2400-2500M 157mm Omnidirectional Router External Folding Glue Stick Antenna
Specifications
Brand Name :
Leenz
Model Number :
LZANT-10331-A
Certification :
RoHs
Place of Origin :
China
MOQ :
10
Payment Terms :
T/T
Supply Ability :
5K per day
Delivery Time :
15 days
Frequency :
2400-2500M
VSWR :
<2
Peak Gain :
4dBi
Impedance :
50
Description

2.4G 2400-2500M 157mm omnidirectional router external folding glue stick antenna

1. Specification

A. Electrical Characteristics
Frequency 2400-2500MHz
Impedance 50 Ohm
S.W.R. <2
Gain 4dBi
Efficiency ≈70%
Polarization Linear
Horizontal Beamwidth 360°
Vertical Beamwidth 60°
B. Material & Mechanical Characteristics
Connector Type SMA-J or RP-SMA-J
Dimension Φ13*157mm
Weight 0.015Kg
Radome material PBT+PC
C. Environmental
Operation Temperature - 40 ˚C ~ + 85˚C
Storage Temperature - 40 ˚C ~ + 85˚C


2. Antenna - S Parameter Test Data
2.1 VSWR
2.4 Ghz Outdoor Antenna 2400-2500M 157mm Omnidirectional Router External Folding Glue Stick Antenna

2.2 Total Efficiency & Gain:

Frequency (MHz) 2400.0 2410.0 2420.0 2430.0 2440.0 2450.0 2460.0 2470.0 2480.0 2490.0 2500.0
Gain (dBi) 4.10 4.12 4.18 4.08 4.00 3.94 4.08 4.13 4.06 4.04 4.06
Efficiency (%) 70.22 71.65 72.05 71.09 70.99 71.32 71.44 71.35 71.17 71.84 71.90
2.4 Ghz Outdoor Antenna 2400-2500M 157mm Omnidirectional Router External Folding Glue Stick Antenna
2.3 Radiation Pattern
3D 2D-Horizontal 2D-Vertical
2400MHz 2.4 Ghz Outdoor Antenna 2400-2500M 157mm Omnidirectional Router External Folding Glue Stick Antenna 2.4 Ghz Outdoor Antenna 2400-2500M 157mm Omnidirectional Router External Folding Glue Stick Antenna 2.4 Ghz Outdoor Antenna 2400-2500M 157mm Omnidirectional Router External Folding Glue Stick Antenna
2450MHz 2.4 Ghz Outdoor Antenna 2400-2500M 157mm Omnidirectional Router External Folding Glue Stick Antenna 2.4 Ghz Outdoor Antenna 2400-2500M 157mm Omnidirectional Router External Folding Glue Stick Antenna 2.4 Ghz Outdoor Antenna 2400-2500M 157mm Omnidirectional Router External Folding Glue Stick Antenna
2500MHz 2.4 Ghz Outdoor Antenna 2400-2500M 157mm Omnidirectional Router External Folding Glue Stick Antenna 2.4 Ghz Outdoor Antenna 2400-2500M 157mm Omnidirectional Router External Folding Glue Stick Antenna 2.4 Ghz Outdoor Antenna 2400-2500M 157mm Omnidirectional Router External Folding Glue Stick Antenna
