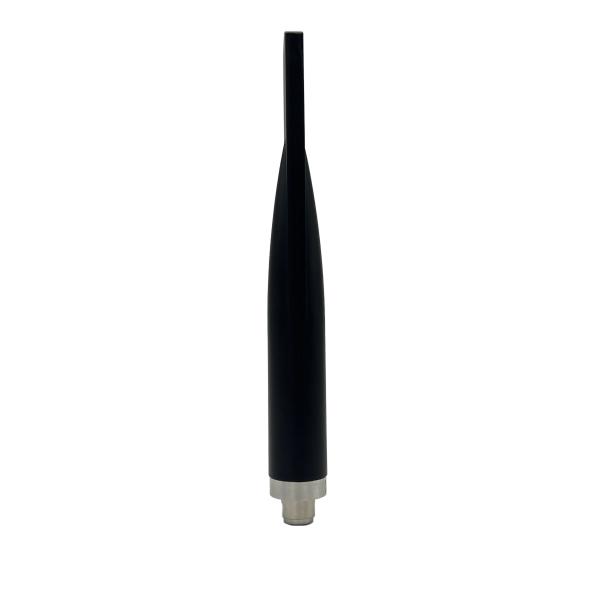

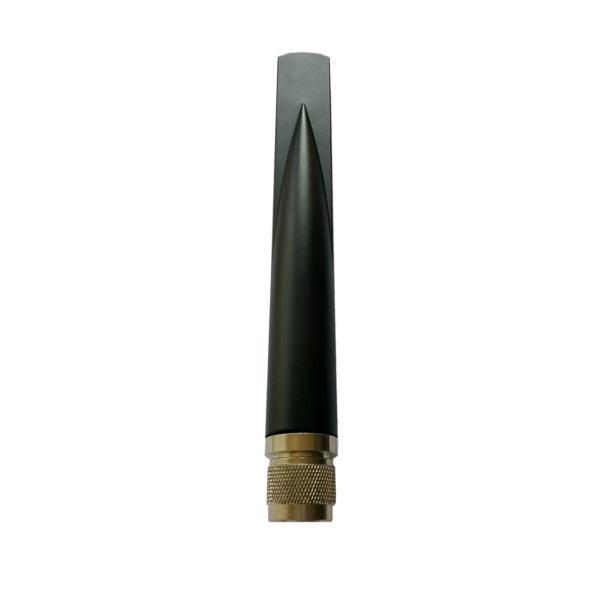

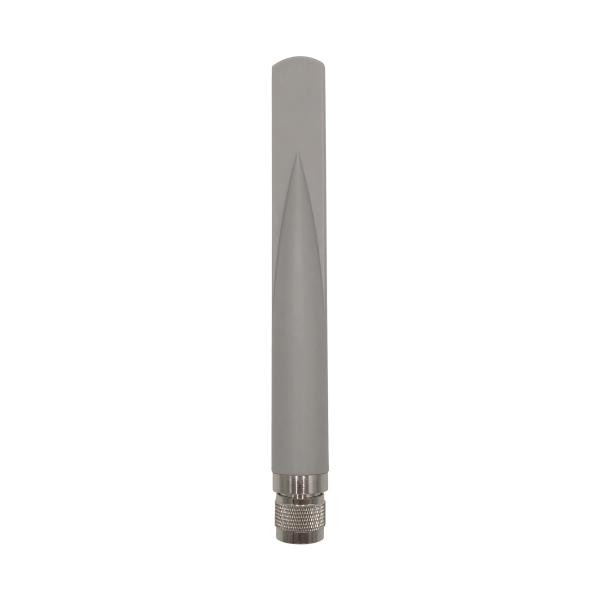

Digital Indoor Antenna WIFI Dual Band Antenna 2.4G/5.8G 7dBi 22.5x195mm
Digital Indoor Antenna WIFI Dual Band Antenna 2.4G/5.8G 7dBi 22.5x195mm
Digital Indoor Antenna WIFI Dual Band Antenna 2.4G/5.8G 7dBi 22.5x195mm
Digital Indoor Antenna WIFI Dual Band Antenna 2.4G/5.8G 7dBi 22.5x195mm
Digital Indoor Antenna WIFI Dual Band Antenna 2.4G/5.8G 7dBi 22.5x195mm
Digital Indoor Antenna WIFI Dual Band Antenna 2.4G/5.8G 7dBi 22.5x195mm
Specifications
Brand Name :
Leenz
Model Number :
LZANT-10131-A
Certification :
RoHs
Place of Origin :
China
MOQ :
10
Payment Terms :
T/T
Supply Ability :
5K per day
Delivery Time :
15 days
Frequency :
2400-2500MHz; 5150-5850MHz
VSWR :
<2.0
Peak Gain :
7dBi
Impedance :
50
Description

Indoor Antenna External Antenna WIFI Dual Band Antenna 2.4G/5.8G 7dBi 22.5x195

1. Specification

A. Electrical Characteristics
Frequency 2400-2500MHz; 5150-5850MHz
S.W.R. <= 1.5
Antenna Gain 7 dBi
Polarization Linear
Impedance 50 Ohm
B. Material & Mechanical Characteristics
Material of Radiator Cu
Material of Plastic Cap: TPE
Cable Type RG 178
Connector Type N Male
Connector Pull Test >=3.0Kg
Connector Torque Test 100~600 g.cm
C. Environmental
Operation Temperature - 40 ˚C ~ + 65 ˚C
Storage Temperature - 40 ˚C ~ + 80 ˚C

2. Antenna - S Parameter Test Data

2.1 VSWR

Digital Indoor Antenna WIFI Dual Band Antenna 2.4G/5.8G 7dBi 22.5x195mm
