4G LTE Sma External Antenna 3-5dBi SMA Connector UV Resistant 13x206mm
4G LTE Sma External Antenna 3-5dBi SMA Connector UV Resistant 13x206mm
4G LTE Sma External Antenna 3-5dBi SMA Connector UV Resistant 13x206mm
4G LTE Sma External Antenna 3-5dBi SMA Connector UV Resistant 13x206mm
Specifications
Brand Name :
Leenz
Model Number :
LZANT-10488-A
Certification :
RoHs
Place of Origin :
China
MOQ :
10
Payment Terms :
T/T
Supply Ability :
5K per day
Delivery Time :
15 days
Frequency :
700-960MHz; 1710-2700MHz
VSWR :
<3.5/<2.5
Peak Gain :
3-5dBi
Impedance :
50
Description

Indoor Antenna External Antenna 4G LTE Antenna 3-5dBi SMA Connector UV Resistant 13x206
1. Specification

A. Electrical Characteristics
Frequency700-960MHz1710-2700MHz
S.W.R.<= 3.5<= 2.5
Antenna Gain3dBi5dBi
Efficiency≈50%≈60%
PolarizationLinearLinear
Impedance50 Ohm50 Ohm
B. Material & Mechanical Characteristics
Connector TypeSMA Connector
Dimension¢13*206mm
ColorLight Black
Weight0.05Kg
C. Environmental
Operation Temperature- 40 ˚C ~ + 80 ˚C
Storage Temperature- 40 ˚C ~ + 80 ˚C

2. Antenna - S Parameter Test Data

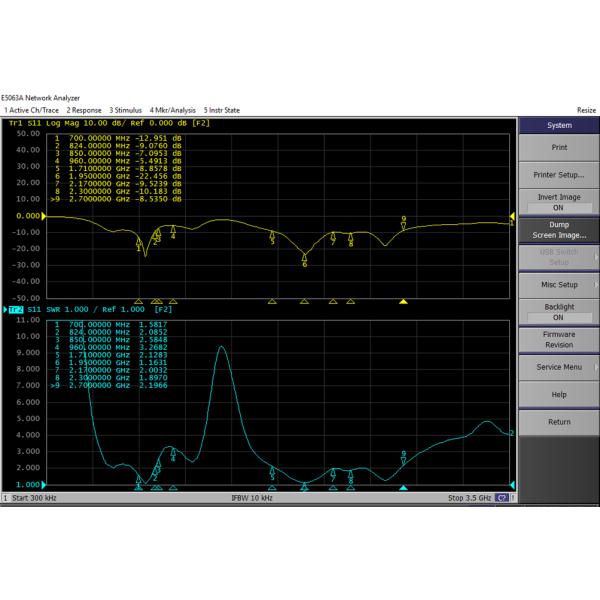

2.1 VSWR
4G LTE Sma External Antenna 3-5dBi SMA Connector UV Resistant 13x206mm

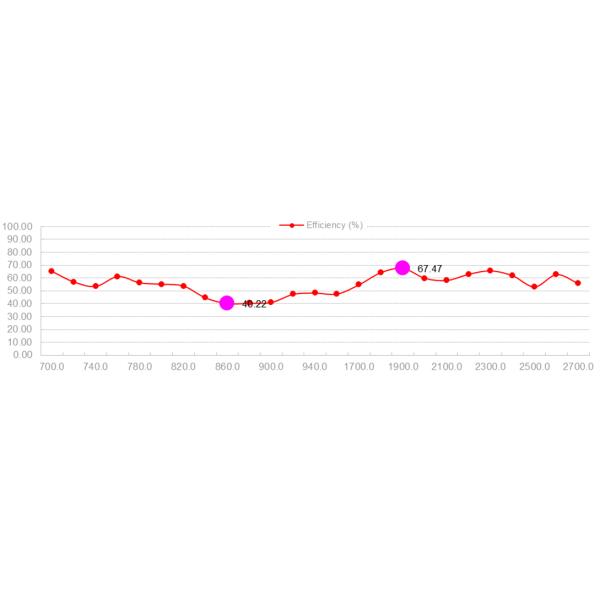

2.2 Total Efficiency & Gain

Frequency (MHz)700.0720.0740.0760.0780.0800.0820.0840.0860.0880.0900.0920.0940.0960.0
Gain (dBi)2.452.032.273.183.112.963.042.702.272.051.912.062.112.07
Efficiency (%)65.2056.9653.5761.2256.3455.2053.7944.5840.2240.4241.0347.3848.3347.63
Frequency (MHz)1700.01800.01900.02000.02100.02200.02300.02400.02500.02600.02700.01700.0
Gain (dBi)3.474.404.474.154.505.014.884.242.262.723.043.47
Efficiency (%)54.8264.3267.4759.8358.1662.9565.6061.8053.1562.7055.7154.82
4G LTE Sma External Antenna 3-5dBi SMA Connector UV Resistant 13x206mm

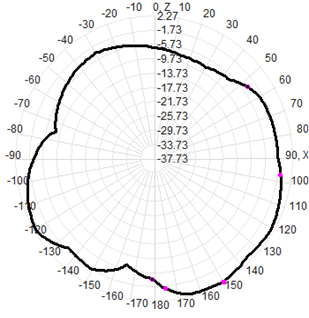

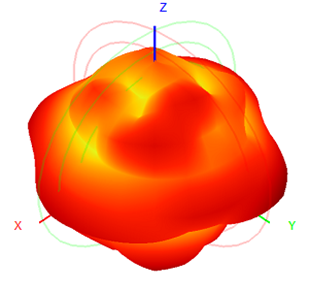

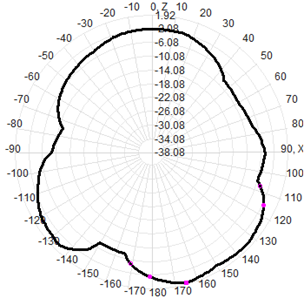

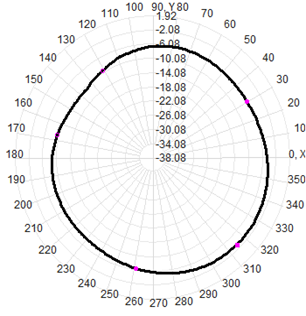

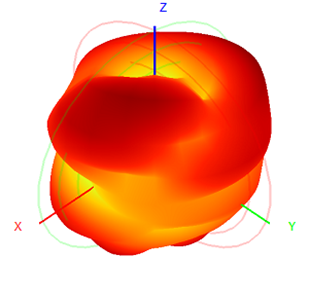

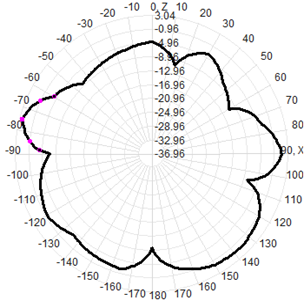

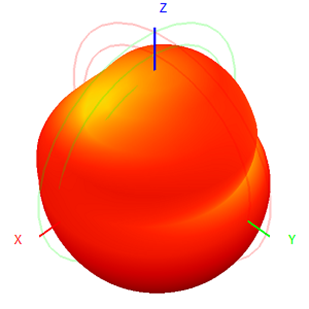

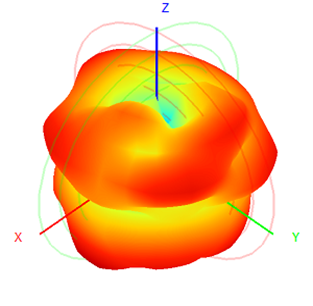

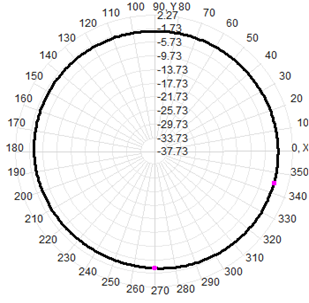

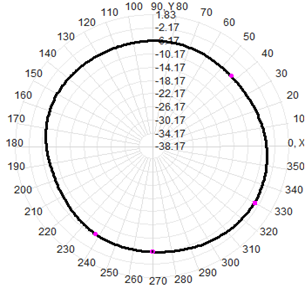

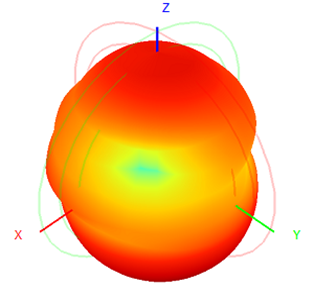

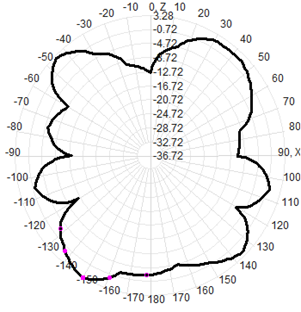

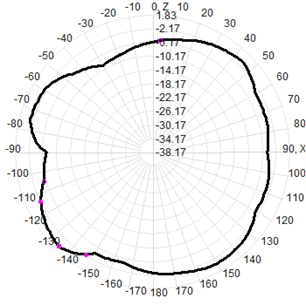

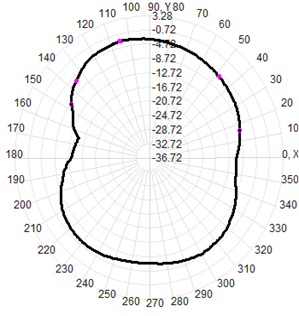

2.2 Radiation Pattern

3D2D-Horizontal2D-Vertical

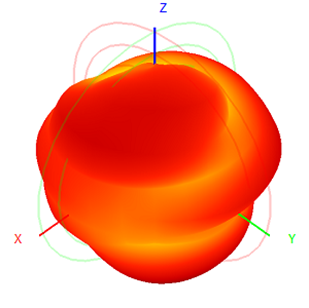

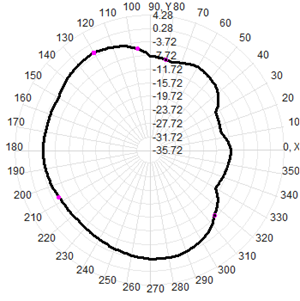

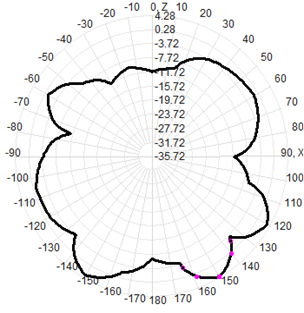

700MHz4G LTE Sma External Antenna 3-5dBi SMA Connector UV Resistant 13x206mm4G LTE Sma External Antenna 3-5dBi SMA Connector UV Resistant 13x206mm4G LTE Sma External Antenna 3-5dBi SMA Connector UV Resistant 13x206mm

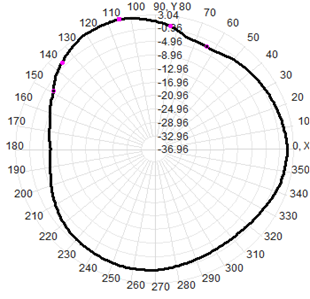

840MHz4G LTE Sma External Antenna 3-5dBi SMA Connector UV Resistant 13x206mm4G LTE Sma External Antenna 3-5dBi SMA Connector UV Resistant 13x206mm4G LTE Sma External Antenna 3-5dBi SMA Connector UV Resistant 13x206mm
960MHz4G LTE Sma External Antenna 3-5dBi SMA Connector UV Resistant 13x206mm4G LTE Sma External Antenna 3-5dBi SMA Connector UV Resistant 13x206mm4G LTE Sma External Antenna 3-5dBi SMA Connector UV Resistant 13x206mm
3D2D-Horizontal2D-Vertical
1700MHz4G LTE Sma External Antenna 3-5dBi SMA Connector UV Resistant 13x206mm4G LTE Sma External Antenna 3-5dBi SMA Connector UV Resistant 13x206mm4G LTE Sma External Antenna 3-5dBi SMA Connector UV Resistant 13x206mm
2200MHz4G LTE Sma External Antenna 3-5dBi SMA Connector UV Resistant 13x206mm4G LTE Sma External Antenna 3-5dBi SMA Connector UV Resistant 13x206mm4G LTE Sma External Antenna 3-5dBi SMA Connector UV Resistant 13x206mm
2700MHz4G LTE Sma External Antenna 3-5dBi SMA Connector UV Resistant 13x206mm4G LTE Sma External Antenna 3-5dBi SMA Connector UV Resistant 13x206mm4G LTE Sma External Antenna 3-5dBi SMA Connector UV Resistant 13x206mm
