5ghz external antenna WIFI Dual Band Antenna 2.4G/5.8G 5dBi 13x162
5ghz external antenna WIFI Dual Band Antenna 2.4G/5.8G 5dBi 13x162
5ghz external antenna WIFI Dual Band Antenna 2.4G/5.8G 5dBi 13x162
5ghz external antenna WIFI Dual Band Antenna 2.4G/5.8G 5dBi 13x162
Specifications
Brand Name :
Leenz
Model Number :
LZANT-10026-A
Certification :
RoHs
Place of Origin :
China
MOQ :
10
Payment Terms :
T/T
Supply Ability :
5K per day
Delivery Time :
15 days
Frequency :
2400-2500MHz; 5150-5850MHz
VSWR :
<2.3
Peak Gain :
5dBi
Impedance :
50
Description

Indoor Antenna External Antenna WIFI Dual Band Antenna 2.4G/5.8G 5dBi 13x162
1. Specification

A. Electrical Characteristics
Frequency2400-2500MHz5150-5850MHz
Impedance50 Ohm50 Ohm
S.W.R.<2.0<2.3
Gain4dBi5dBi
Efficiency≈70%≈60%
PolarizationLinearLinear
Max Power50W50W
B. Material & Mechanical Characteristics
Connector TypeRP-SMA connector
DimensionΦ13*162mm
Weight0.02Kg
Antenna materialPCB
C. Environmental
Operation Temperature- 40 ˚C ~ + 80 ˚C
Storage Temperature- 40 ˚C ~ + 80 ˚C

2. Antenna - S Parameter Test Data

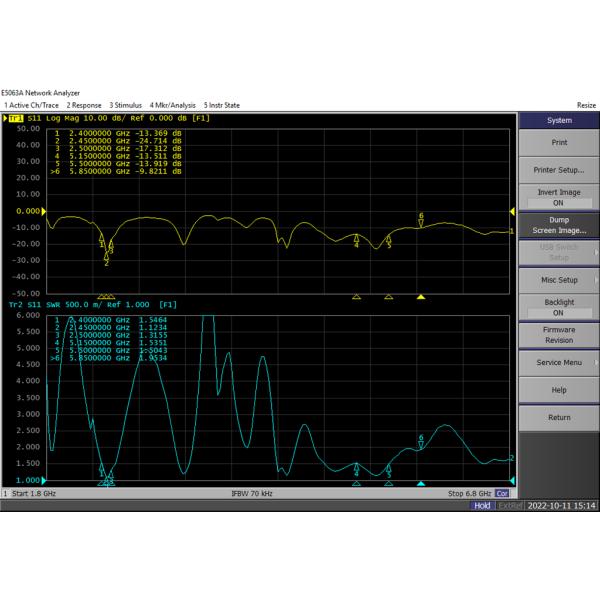

2.1 VSWR
5ghz external antenna WIFI Dual Band Antenna 2.4G/5.8G 5dBi 13x162

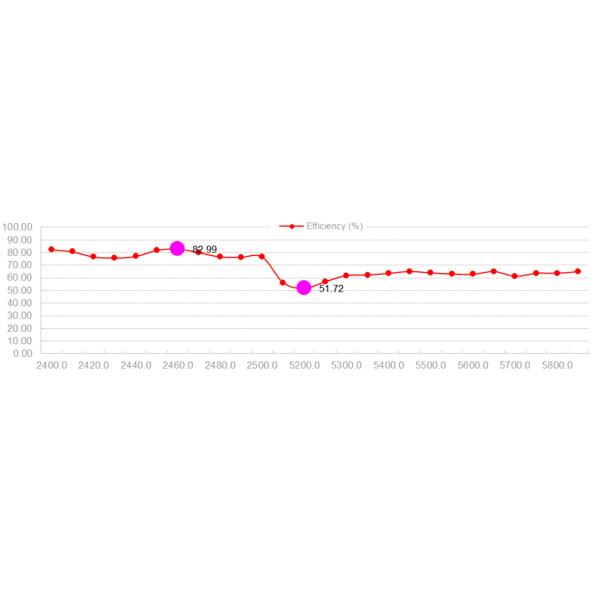

2.2 Total Efficiency & Gain

Frequency (MHz)2400.02410.02420.02430.02440.02450.02460.02470.02480.02490.02500.0
Gain (dBi)4.033.903.743.854.004.254.234.094.104.284.27
Efficiency (%)82.3980.7876.6775.7877.0881.9582.9980.1276.7276.4776.68
Frequency (MHz)515052005250530053505400545055005550560056505700575058005850
Gain (dBi)4.114.734.384.934.974.104.694.734.524.214.334.114.224.054.11
Efficiency (%)56.1551.7257.0561.9162.3663.6265.1363.9563.0562.8965.0761.2863.6663.7065.08
5ghz external antenna WIFI Dual Band Antenna 2.4G/5.8G 5dBi 13x162

2.2 Radiation Pattern

3D2D-Horizontal2D-Vertical
2400MHz5ghz external antenna WIFI Dual Band Antenna 2.4G/5.8G 5dBi 13x1625ghz external antenna WIFI Dual Band Antenna 2.4G/5.8G 5dBi 13x1625ghz external antenna WIFI Dual Band Antenna 2.4G/5.8G 5dBi 13x162
2450MHz5ghz external antenna WIFI Dual Band Antenna 2.4G/5.8G 5dBi 13x1625ghz external antenna WIFI Dual Band Antenna 2.4G/5.8G 5dBi 13x1625ghz external antenna WIFI Dual Band Antenna 2.4G/5.8G 5dBi 13x162
2500MHz5ghz external antenna WIFI Dual Band Antenna 2.4G/5.8G 5dBi 13x1625ghz external antenna WIFI Dual Band Antenna 2.4G/5.8G 5dBi 13x1625ghz external antenna WIFI Dual Band Antenna 2.4G/5.8G 5dBi 13x162
3D2D-Horizontal2D-Vertical
5150MHz5ghz external antenna WIFI Dual Band Antenna 2.4G/5.8G 5dBi 13x1625ghz external antenna WIFI Dual Band Antenna 2.4G/5.8G 5dBi 13x1625ghz external antenna WIFI Dual Band Antenna 2.4G/5.8G 5dBi 13x162
5500MHz5ghz external antenna WIFI Dual Band Antenna 2.4G/5.8G 5dBi 13x1625ghz external antenna WIFI Dual Band Antenna 2.4G/5.8G 5dBi 13x1625ghz external antenna WIFI Dual Band Antenna 2.4G/5.8G 5dBi 13x162
5850MHz5ghz external antenna WIFI Dual Band Antenna 2.4G/5.8G 5dBi 13x1625ghz external antenna WIFI Dual Band Antenna 2.4G/5.8G 5dBi 13x1625ghz external antenna WIFI Dual Band Antenna 2.4G/5.8G 5dBi 13x162
