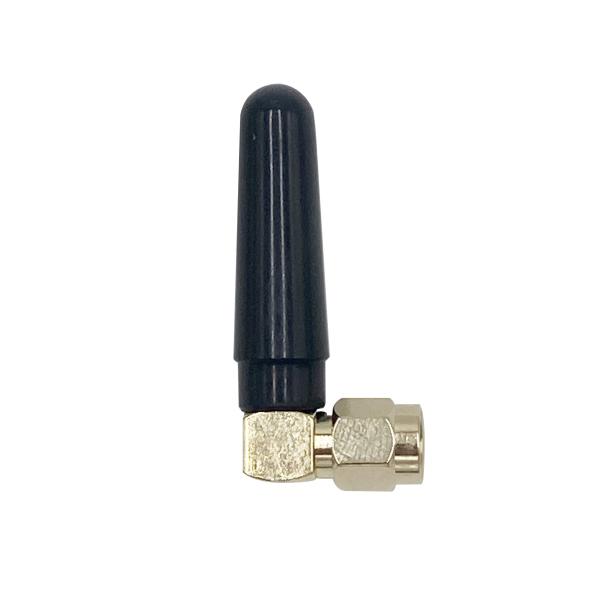

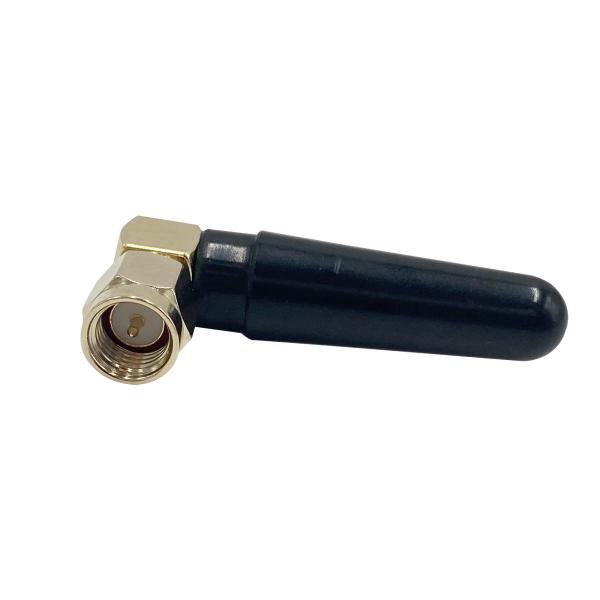

1.5dBi Rubber Duck Antenna 915MHz Antenna 20x800mm
1.5dBi Rubber Duck Antenna 915MHz Antenna 20x800mm
1.5dBi Rubber Duck Antenna 915MHz Antenna 20x800mm
1.5dBi Rubber Duck Antenna 915MHz Antenna 20x800mm
Specifications
Brand Name :
Leenz
Model Number :
LZANT-10803-B
Certification :
RoHs
Place of Origin :
China
MOQ :
10
Payment Terms :
T/T
Supply Ability :
5K per day
Delivery Time :
15 days
Frequency :
915MHZ
VSWR :
<1.5
Peak Gain :
3dBi
Impedance :
50
Description

Indoor Antenna External Antenna Rubber Duck Antenna 915MHz Antenna 1.5dBi 20x800mm

1. Specification

A. Electrical Characteristics
Frequency 915MHz
Impedance 50 Ohm
S.W.R. <1.5
Gain 3dBi
Efficiency ≈50%
Polarization Linear
Horizontal Beamwidth 360°
Vertical Beamwidth 28-29°
Max Power 50W
B. Material & Mechanical Characteristics
Connector Type SMA connector
Dimension 40mm
Weight 0.006Kg
Color Black
C. Environmental
Operation Temperature - 40 ˚C ~ + 80 ˚C
Storage Temperature - 40 ˚C ~ + 80 ˚C

2. Antenna - S Parameter Test Data

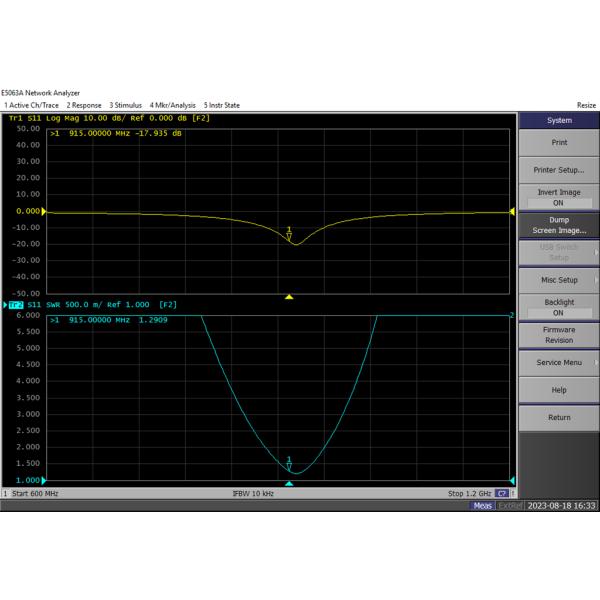

2.1 VSWR

1.5dBi Rubber Duck Antenna 915MHz Antenna 20x800mm

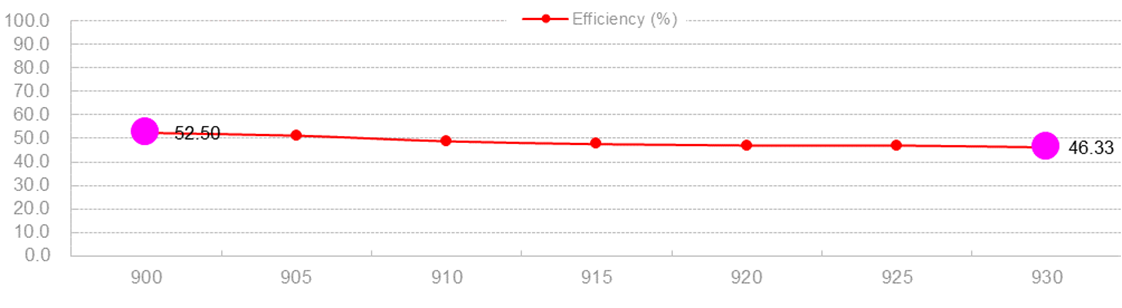

2.2 Total Efficiency & Gain

Frequency (MHz) 900 905 910 915 920 925 930
Gain (dBi) 3.6 3.5 3.3 3.2 3.1 3.0 2.8
Efficiency (%) 52.5 51.3 48.9 47.7 47.1 47.1 46.3
1.5dBi Rubber Duck Antenna 915MHz Antenna 20x800mm

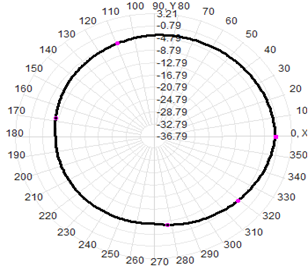

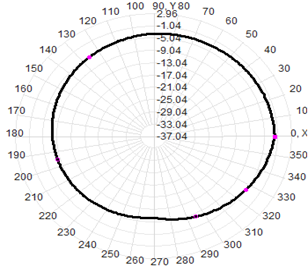

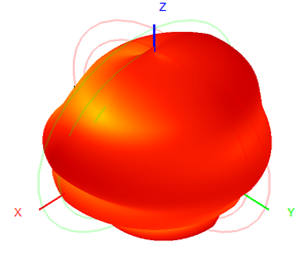

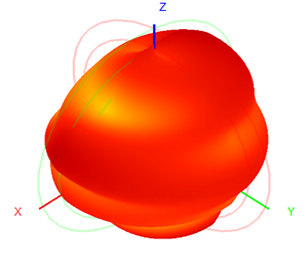

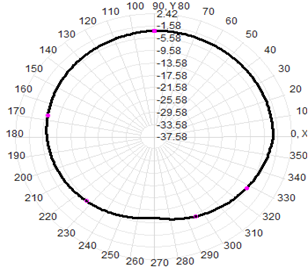

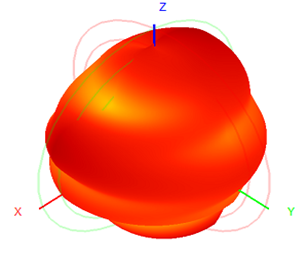

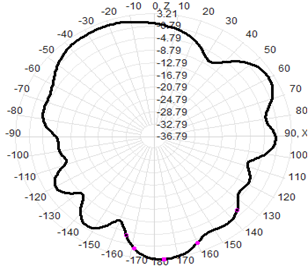

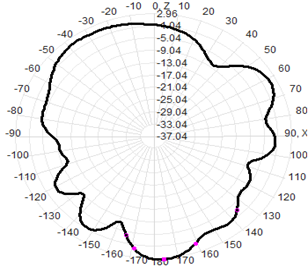

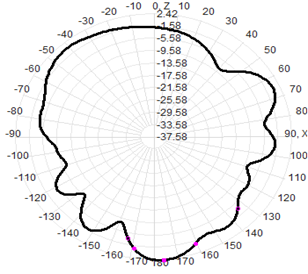

2.3 Radiation Pattern

3D 2D-Horizontal 2D-Vertical
900MHz 1.5dBi Rubber Duck Antenna 915MHz Antenna 20x800mm 1.5dBi Rubber Duck Antenna 915MHz Antenna 20x800mm 1.5dBi Rubber Duck Antenna 915MHz Antenna 20x800mm
915MHz 1.5dBi Rubber Duck Antenna 915MHz Antenna 20x800mm 1.5dBi Rubber Duck Antenna 915MHz Antenna 20x800mm 1.5dBi Rubber Duck Antenna 915MHz Antenna 20x800mm
930MHz 1.5dBi Rubber Duck Antenna 915MHz Antenna 20x800mm 1.5dBi Rubber Duck Antenna 915MHz Antenna 20x800mm 1.5dBi Rubber Duck Antenna 915MHz Antenna 20x800mm
