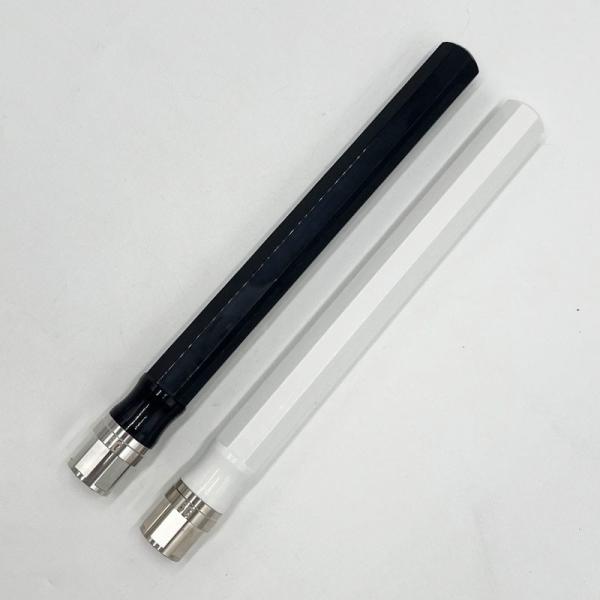

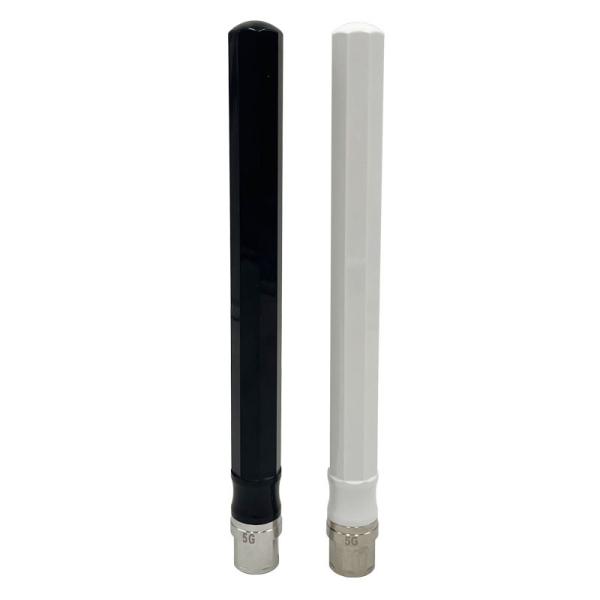

Specifications
Brand Name :
Leenz
Model Number :
LZANT-10455-A
Certification :
RoHs
Place of Origin :
China
MOQ :
10
Payment Terms :
T/T
Supply Ability :
5K per day
Delivery Time :
15 days
Frequency :
617-960/1710-6000MHz
VSWR :
<4.0
Peak Gain :
5dBi
Impedance :
50
Description

1. Specification

A. Electrical Characteristics
Frequency 617-960/1710-6000M
Impedance 50 Ohm
S.W.R. <2
Gain 5dBi
Efficiency ≈70%
Horizontal Beamwidth 360°
Vertical Beamwidth 48-61°
Polarization Linear
Max Power 50W
B. Material & Mechanical Characteristics

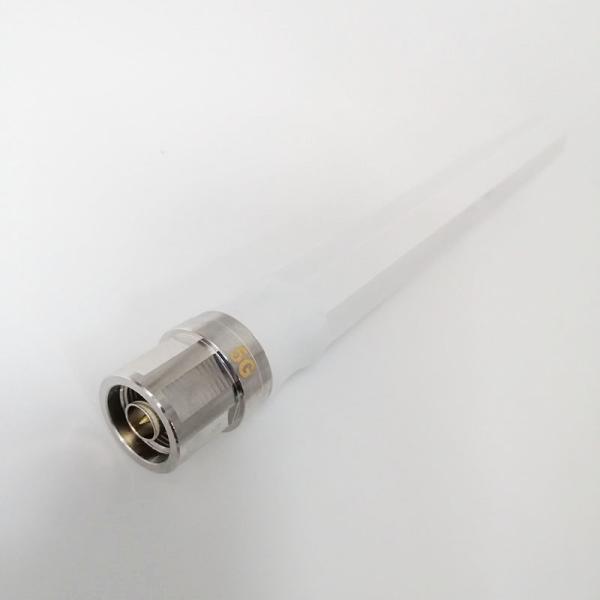

Connector Type N Male
Dimension Φ24*240mm
Weight 0.1Kg
Radome material Fiberglass
C. Environmental
Operation Temperature - 40 ˚C ~ + 80 ˚C
Storage Temperature - 40 ˚C ~ + 80 ˚C

2. Antenna - S Parameter Test Data

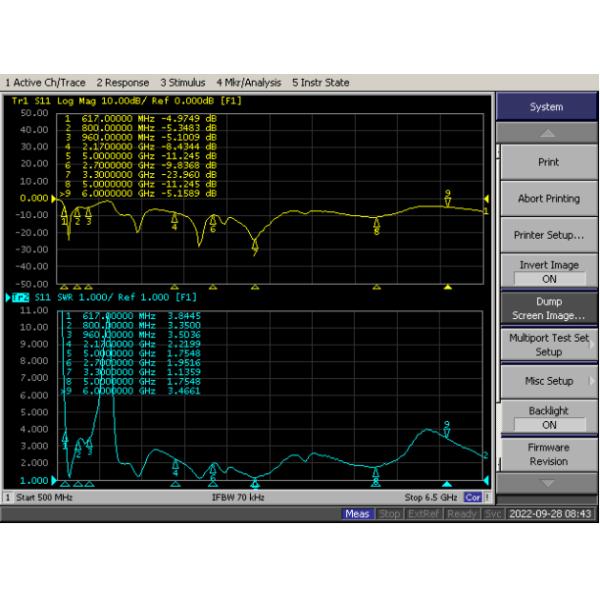

2.1 VSWR

3G 4G 5G Outdoor Waterproof Omnidirectional


2.2 Total Efficiency & Gain:

3G 4G 5G Outdoor Waterproof Omnidirectional

Frequency (MHz) 615 638 661 684 707 730 753 776 799 822 845 868 891 914 937 960
Gain (dBi) -1.05 1.24 2.39 1.82 2.11 1.10 0.73 0.35 -0.02 0.48 0.18 0.42 1.22 2.06 3.16 3.49
Efficiency (%) 41.11 68.01 95.33 84.33 93.23 73.23 70.07 60.80 50.84 56.58 49.88 49.52 52.26 53.02 58.26 54.79

Frequency (MHz) 1710 1800 1890 1980 2070 2160 2250 2340 2430 2520 2610 2700
Gain (dBi) 4.59 1.96 0.72 0.87 1.04 1.97 2.32 2.64 2.99 3.67 4.33 3.83
Efficiency (%) 73.27 66.27 58.41 60.53 62.74 70.61 77.78 77.61 80.34 81.31 83.53 74.49

Frequency (MHz) 3000 3100 3200 3300 3400 3500 3600 3700 3800 3900 4000 4100 4200 4300 4400 4500
Gain (dBi) 1.36 1.76 2.32 3.56 4.60 4.94 4.97 4.69 4.36 4.21 4.07 4.76 4.22 5.05 5.42 5.36
Efficiency (%) 71.26 76.72 77.24 79.84 79.25 80.38 75.40 70.94 69.12 67.85 69.00 64.55 64.78 66.07 66.20 68.43

Frequency (MHz) 4600 4700 4800 4900 5000 5100 5200 5300 5400 5500 5600 5700 5800 5900 6000
Gain (dBi) 5.12 5.27 5.17 4.81 4.22 4.18 4.33 4.67 4.05 3.85 3.41 2.89 3.68 4.00 4.51
Efficiency (%) 66.56 69.40 67.52 75.09 70.86 67.01 63.70 69.98 61.14 58.62 54.75 49.72 52.69 55.13 58.49

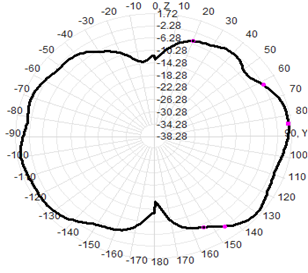

2.3 Radiation Pattern

3D

2D-Horizontal

2D-Vertical

615MHz


3G 4G 5G Outdoor Waterproof Omnidirectional

 3G 4G 5G Outdoor Waterproof Omnidirectional 3G 4G 5G Outdoor Waterproof Omnidirectional
684MHz 3G 4G 5G Outdoor Waterproof Omnidirectional 3G 4G 5G Outdoor Waterproof Omnidirectional 3G 4G 5G Outdoor Waterproof Omnidirectional
730MHz 3G 4G 5G Outdoor Waterproof Omnidirectional 3G 4G 5G Outdoor Waterproof Omnidirectional 3G 4G 5G Outdoor Waterproof Omnidirectional
3D 2D-Horizontal 2D-Vertical
822MHz 3G 4G 5G Outdoor Waterproof Omnidirectional 3G 4G 5G Outdoor Waterproof Omnidirectional 3G 4G 5G Outdoor Waterproof Omnidirectional
868MHz 3G 4G 5G Outdoor Waterproof Omnidirectional 3G 4G 5G Outdoor Waterproof Omnidirectional 3G 4G 5G Outdoor Waterproof Omnidirectional
960MHz 3G 4G 5G Outdoor Waterproof Omnidirectional 3G 4G 5G Outdoor Waterproof Omnidirectional 3G 4G 5G Outdoor Waterproof Omnidirectional
3D 2D-Horizontal 2D-Vertical
1710MHz 3G 4G 5G Outdoor Waterproof Omnidirectional 3G 4G 5G Outdoor Waterproof Omnidirectional 3G 4G 5G Outdoor Waterproof Omnidirectional
2160MHz 3G 4G 5G Outdoor Waterproof Omnidirectional 3G 4G 5G Outdoor Waterproof Omnidirectional 3G 4G 5G Outdoor Waterproof Omnidirectional
2700MHz 3G 4G 5G Outdoor Waterproof Omnidirectional 3G 4G 5G Outdoor Waterproof Omnidirectional 3G 4G 5G Outdoor Waterproof Omnidirectional
3D 2D-Horizontal 2D-Vertical
3300MHz 3G 4G 5G Outdoor Waterproof Omnidirectional 3G 4G 5G Outdoor Waterproof Omnidirectional 3G 4G 5G Outdoor Waterproof Omnidirectional
4800MHz 3G 4G 5G Outdoor Waterproof Omnidirectional 3G 4G 5G Outdoor Waterproof Omnidirectional 3G 4G 5G Outdoor Waterproof Omnidirectional
6000MHz 3G 4G 5G Outdoor Waterproof Omnidirectional 3G 4G 5G Outdoor Waterproof Omnidirectional 3G 4G 5G Outdoor Waterproof Omnidirectional
