SMA male 433M 1dbi omni-directional folding plastic rod-shaped antenna for Lora base station data transmission antenna13x196mm
SMA male 433M 1dbi omni-directional folding plastic rod-shaped antenna for Lora base station data transmission antenna13x196mm
SMA male 433M 1dbi omni-directional folding plastic rod-shaped antenna for Lora base station data transmission antenna13x196mm
SMA male 433M 1dbi omni-directional folding plastic rod-shaped antenna for Lora base station data transmission antenna13x196mm
SMA male 433M 1dbi omni-directional folding plastic rod-shaped antenna for Lora base station data transmission antenna13x196mm
SMA male 433M 1dbi omni-directional folding plastic rod-shaped antenna for Lora base station data transmission antenna13x196mm
SMA male 433M 1dbi omni-directional folding plastic rod-shaped antenna for Lora base station data transmission antenna13x196mm
SMA male 433M 1dbi omni-directional folding plastic rod-shaped antenna for Lora base station data transmission antenna13x196mm
SMA male 433M 1dbi omni-directional folding plastic rod-shaped antenna for Lora base station data transmission antenna13x196mm
SMA male 433M 1dbi omni-directional folding plastic rod-shaped antenna for Lora base station data transmission antenna13x196mm
SMA male 433M 1dbi omni-directional folding plastic rod-shaped antenna for Lora base station data transmission antenna13x196mm
SMA male 433M 1dbi omni-directional folding plastic rod-shaped antenna for Lora base station data transmission antenna13x196mm
Specifications
Brand Name :
Leenz
Model Number :
LZANT-10040-A
Certification :
RoHs
Place of Origin :
China
MOQ :
10
Payment Terms :
T/T
Supply Ability :
1K per day
Delivery Time :
15 days
Frequency :
433M
VSWR :
<2
Peak Gain :
1dBi
Impedance :
50
Description

SMA male 2.4G 2400-2500M Bluetooth antenna Wi-Fi router antenna omnidirectional unmanned aerial vehicle remote control folding rubber tube antenna 13x196mm

1. Specification

A. Electrical Characteristics
Frequency 433MHz
Impedance 50 Ohm
S.W.R. <2
Gain 1dBi
Efficiency ≈39%
Polarization Linear
Horizontal Beamwidth 360°
Vertical Beamwidth 35±5°
B. Material & Mechanical Characteristics
Connector Type SMA-J
Dimension Φ13*196mm
Weight 0.02Kg
Radome material PBT+PC BLACK
C. Environmental
Operation Temperature - 40 ˚C ~ + 85˚C
Storage Temperature - 40 ˚C ~ + 85˚C


2. Antenna - S Parameter Test Data

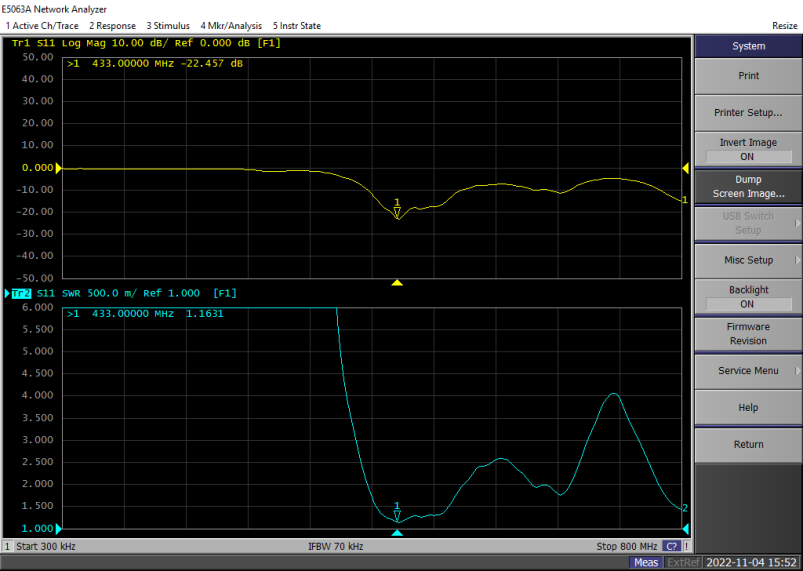

2.1 VSWR
SMA male 433M 1dbi omni-directional folding plastic rod-shaped antenna for Lora base station data transmission antenna13x196mm

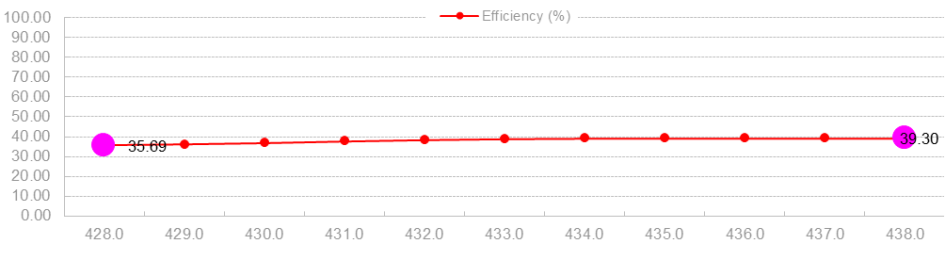

2.2 Total Efficiency & Gain:

Frequency (MHz)

428.0

429.0

430.0

431.0

432.0

433.0

434.0

435.0

436.0

437.0

438.0

Gain (dBi)

0.57

0.61

0.67

0.75

0.82

0.84

0.84

0.81

0.78

0.75

0.73

Efficiency (%)

35.69

36.17

36.82

37.69

38.45

38.97

39.21

39.22

39.21

39.21

39.30

SMA male 433M 1dbi omni-directional folding plastic rod-shaped antenna for Lora base station data transmission antenna13x196mm





2.3 Radiation Pattern

 3D 2D-Horizontal 2D-Vertical
428MHz SMA male 433M 1dbi omni-directional folding plastic rod-shaped antenna for Lora base station data transmission antenna13x196mm SMA male 433M 1dbi omni-directional folding plastic rod-shaped antenna for Lora base station data transmission antenna13x196mm SMA male 433M 1dbi omni-directional folding plastic rod-shaped antenna for Lora base station data transmission antenna13x196mm
433MHz SMA male 433M 1dbi omni-directional folding plastic rod-shaped antenna for Lora base station data transmission antenna13x196mm SMA male 433M 1dbi omni-directional folding plastic rod-shaped antenna for Lora base station data transmission antenna13x196mm SMA male 433M 1dbi omni-directional folding plastic rod-shaped antenna for Lora base station data transmission antenna13x196mm
438MHz SMA male 433M 1dbi omni-directional folding plastic rod-shaped antenna for Lora base station data transmission antenna13x196mm SMA male 433M 1dbi omni-directional folding plastic rod-shaped antenna for Lora base station data transmission antenna13x196mm SMA male 433M 1dbi omni-directional folding plastic rod-shaped antenna for Lora base station data transmission antenna13x196mm
