MachineU > China Products > Electrical Equipment & Supplies > Connectors & Terminals > Connectors
SMA-J 2.4/5.8G 2400-2500/5150-5850M 5dbi omnidirectional Wi-Fi Bluetooth ZigBee plastic rod-shaped antenna 13x196mm
SMA-J 2.4/5.8G 2400-2500/5150-5850M 5dbi omnidirectional Wi-Fi Bluetooth ZigBee plastic rod-shaped antenna 13x196mm
SMA-J 2.4/5.8G 2400-2500/5150-5850M 5dbi omnidirectional Wi-Fi Bluetooth ZigBee plastic rod-shaped antenna 13x196mm
SMA-J 2.4/5.8G 2400-2500/5150-5850M 5dbi omnidirectional Wi-Fi Bluetooth ZigBee plastic rod-shaped antenna 13x196mm
SMA-J 2.4/5.8G 2400-2500/5150-5850M 5dbi omnidirectional Wi-Fi Bluetooth ZigBee plastic rod-shaped antenna 13x196mm
SMA-J 2.4/5.8G 2400-2500/5150-5850M 5dbi omnidirectional Wi-Fi Bluetooth ZigBee plastic rod-shaped antenna 13x196mm
SMA-J 2.4/5.8G 2400-2500/5150-5850M 5dbi omnidirectional Wi-Fi Bluetooth ZigBee plastic rod-shaped antenna 13x196mm
SMA-J 2.4/5.8G 2400-2500/5150-5850M 5dbi omnidirectional Wi-Fi Bluetooth ZigBee plastic rod-shaped antenna 13x196mm
SMA-J 2.4/5.8G 2400-2500/5150-5850M 5dbi omnidirectional Wi-Fi Bluetooth ZigBee plastic rod-shaped antenna 13x196mm
SMA-J 2.4/5.8G 2400-2500/5150-5850M 5dbi omnidirectional Wi-Fi Bluetooth ZigBee plastic rod-shaped antenna 13x196mm
Specifications
Brand Name :
Leenz
Model Number :
LZANT-10467-A
Certification :
RoHs
Place of Origin :
China
MOQ :
10
Payment Terms :
T/T
Supply Ability :
1K per day
Delivery Time :
15 days
Frequency :
2400-2500/5150-5850M
VSWR :
<2
Peak Gain :
5dBi
Impedance :
50
Description

SMA-J 2.4/5.8G 2400-2500/5150-5850M 5dbi omnidirectional Wi-Fi Bluetooth ZigBee plastic rod-shaped antenna 13x196mm

1. Specification

A. Electrical Characteristics
Frequency 2400-2500/5150-5850MHz
Impedance 50 Ohm
S.W.R. <2
Gain 5dBi
Efficiency ≈70%
Polarization Linear
Horizontal Beamwidth 360°
Vertical Beamwidth 35±5°
B. Material & Mechanical Characteristics
Connector Type SMA-J
Dimension Φ13*196mm
Weight 0.02Kg
Radome material PBT+PC Black
C. Environmental
Operation Temperature - 40 ˚C ~ + 85˚C
Storage Temperature - 40 ˚C ~ + 85˚C


2. Antenna - S Parameter Test Data

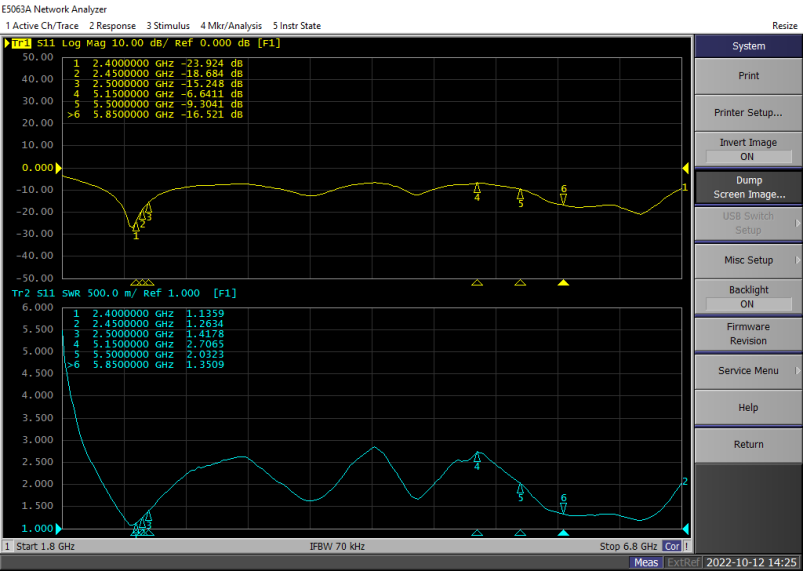

2.1 VSWR

SMA-J 2.4/5.8G 2400-2500/5150-5850M 5dbi omnidirectional Wi-Fi Bluetooth ZigBee plastic rod-shaped antenna 13x196mm

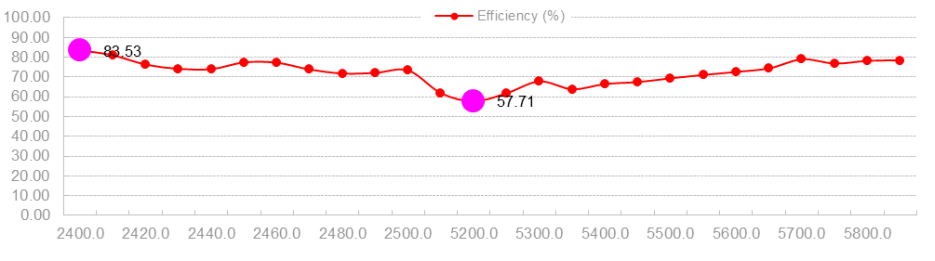

2.2 Total Efficiency & Gain:

Frequency (MHz)

2400.0

2410.0

2420.0

2430.0

2440.0

2450.0

2460.0

2470.0

2480.0

2490.0

2500.0

Gain (dBi)

3.57

3.50

3.30

3.17

3.20

3.41

3.44

3.28

3.22

3.28

3.39

Efficiency (%)

83.53

80.98

76.31

74.15

74.02

77.39

77.22

73.80

71.77

72.10

73.32

Frequency (MHz)

5150

5200

5250

5300

5350

5400

5450

5500

5550

5600

5650

5700

5750

5800

5850

Gain (dBi)

4.23

4.05

4.14

4.06

3.28

2.80

2.29

1.91

1.55

1.38

1.31

1.55

1.51

1.62

1.83

Efficiency (%)

61.80

57.71

61.85

67.78

63.82

66.47

67.47

69.39

71.08

72.60

74.42

78.95

76.81

78.19

78.37

SMA-J 2.4/5.8G 2400-2500/5150-5850M 5dbi omnidirectional Wi-Fi Bluetooth ZigBee plastic rod-shaped antenna 13x196mm





2.3 Radiation Pattern

 3D 2D-Horizontal 2D-Vertical
2400MHz SMA-J 2.4/5.8G 2400-2500/5150-5850M 5dbi omnidirectional Wi-Fi Bluetooth ZigBee plastic rod-shaped antenna 13x196mm SMA-J 2.4/5.8G 2400-2500/5150-5850M 5dbi omnidirectional Wi-Fi Bluetooth ZigBee plastic rod-shaped antenna 13x196mm SMA-J 2.4/5.8G 2400-2500/5150-5850M 5dbi omnidirectional Wi-Fi Bluetooth ZigBee plastic rod-shaped antenna 13x196mm
2450MHz SMA-J 2.4/5.8G 2400-2500/5150-5850M 5dbi omnidirectional Wi-Fi Bluetooth ZigBee plastic rod-shaped antenna 13x196mm SMA-J 2.4/5.8G 2400-2500/5150-5850M 5dbi omnidirectional Wi-Fi Bluetooth ZigBee plastic rod-shaped antenna 13x196mm SMA-J 2.4/5.8G 2400-2500/5150-5850M 5dbi omnidirectional Wi-Fi Bluetooth ZigBee plastic rod-shaped antenna 13x196mm
2500MHz SMA-J 2.4/5.8G 2400-2500/5150-5850M 5dbi omnidirectional Wi-Fi Bluetooth ZigBee plastic rod-shaped antenna 13x196mm SMA-J 2.4/5.8G 2400-2500/5150-5850M 5dbi omnidirectional Wi-Fi Bluetooth ZigBee plastic rod-shaped antenna 13x196mm SMA-J 2.4/5.8G 2400-2500/5150-5850M 5dbi omnidirectional Wi-Fi Bluetooth ZigBee plastic rod-shaped antenna 13x196mm





3D 2D-Horizontal 2D-Vertical
5150MHz SMA-J 2.4/5.8G 2400-2500/5150-5850M 5dbi omnidirectional Wi-Fi Bluetooth ZigBee plastic rod-shaped antenna 13x196mm SMA-J 2.4/5.8G 2400-2500/5150-5850M 5dbi omnidirectional Wi-Fi Bluetooth ZigBee plastic rod-shaped antenna 13x196mm SMA-J 2.4/5.8G 2400-2500/5150-5850M 5dbi omnidirectional Wi-Fi Bluetooth ZigBee plastic rod-shaped antenna 13x196mm
5500MHz SMA-J 2.4/5.8G 2400-2500/5150-5850M 5dbi omnidirectional Wi-Fi Bluetooth ZigBee plastic rod-shaped antenna 13x196mm SMA-J 2.4/5.8G 2400-2500/5150-5850M 5dbi omnidirectional Wi-Fi Bluetooth ZigBee plastic rod-shaped antenna 13x196mm SMA-J 2.4/5.8G 2400-2500/5150-5850M 5dbi omnidirectional Wi-Fi Bluetooth ZigBee plastic rod-shaped antenna 13x196mm
5850MHz SMA-J 2.4/5.8G 2400-2500/5150-5850M 5dbi omnidirectional Wi-Fi Bluetooth ZigBee plastic rod-shaped antenna 13x196mm SMA-J 2.4/5.8G 2400-2500/5150-5850M 5dbi omnidirectional Wi-Fi Bluetooth ZigBee plastic rod-shaped antenna 13x196mm SMA-J 2.4/5.8G 2400-2500/5150-5850M 5dbi omnidirectional Wi-Fi Bluetooth ZigBee plastic rod-shaped antenna 13x196mm







Send your message to this supplier
Send Now

SMA-J 2.4/5.8G 2400-2500/5150-5850M 5dbi omnidirectional Wi-Fi Bluetooth ZigBee plastic rod-shaped antenna 13x196mm

Ask Latest Price
Product Detail
Brand Name :
Leenz
Model Number :
LZANT-10467-A
Certification :
RoHs
Place of Origin :
China
MOQ :
10
Payment Terms :
T/T
Contact Supplier
SMA-J 2.4/5.8G 2400-2500/5150-5850M 5dbi omnidirectional Wi-Fi Bluetooth ZigBee plastic rod-shaped antenna 13x196mm
SMA-J 2.4/5.8G 2400-2500/5150-5850M 5dbi omnidirectional Wi-Fi Bluetooth ZigBee plastic rod-shaped antenna 13x196mm
SMA-J 2.4/5.8G 2400-2500/5150-5850M 5dbi omnidirectional Wi-Fi Bluetooth ZigBee plastic rod-shaped antenna 13x196mm
SMA-J 2.4/5.8G 2400-2500/5150-5850M 5dbi omnidirectional Wi-Fi Bluetooth ZigBee plastic rod-shaped antenna 13x196mm
SMA-J 2.4/5.8G 2400-2500/5150-5850M 5dbi omnidirectional Wi-Fi Bluetooth ZigBee plastic rod-shaped antenna 13x196mm

Dongguan Leenz Electronics Co., Ltd

Verified Supplier
3 Years
guangdong, dongguan
Since 2012
Business Type :
Manufacturer
Main Products :
Outdoor Waterproof Omnidirectional Antenna, Outdoor Waterproof Directional Antenna, Satellite Positioning Antenna
Total Annual :
500000-600000
Employee Number :
100~200
Certification Level :
Verified Supplier
Discover similar products
View More

Find Similar Products By Category:

Supplier Homepage Products Indoor Antenna
MachineU China Products Electrical Equipment & Supplies Connectors & Terminals Connectors
Contact Supplier
Submit Requirement
