SMA-J 470-510M LoRa Base Station Antenna LoRa Gateway omnidirectional foldable plastic housing antenna 13x196mm
SMA-J 470-510M LoRa Base Station Antenna LoRa Gateway omnidirectional foldable plastic housing antenna 13x196mm
SMA-J 470-510M LoRa Base Station Antenna LoRa Gateway omnidirectional foldable plastic housing antenna 13x196mm
SMA-J 470-510M LoRa Base Station Antenna LoRa Gateway omnidirectional foldable plastic housing antenna 13x196mm
SMA-J 470-510M LoRa Base Station Antenna LoRa Gateway omnidirectional foldable plastic housing antenna 13x196mm
SMA-J 470-510M LoRa Base Station Antenna LoRa Gateway omnidirectional foldable plastic housing antenna 13x196mm
SMA-J 470-510M LoRa Base Station Antenna LoRa Gateway omnidirectional foldable plastic housing antenna 13x196mm
SMA-J 470-510M LoRa Base Station Antenna LoRa Gateway omnidirectional foldable plastic housing antenna 13x196mm
SMA-J 470-510M LoRa Base Station Antenna LoRa Gateway omnidirectional foldable plastic housing antenna 13x196mm
SMA-J 470-510M LoRa Base Station Antenna LoRa Gateway omnidirectional foldable plastic housing antenna 13x196mm
Specifications
Brand Name :
Leenz
Model Number :
LZANT-10378-A
Certification :
RoHs
Place of Origin :
China
MOQ :
10
Payment Terms :
T/T
Supply Ability :
1K per day
Delivery Time :
15 days
Frequency :
470-510MHz
VSWR :
<2.0
Peak Gain :
0dBi
Impedance :
50
Description

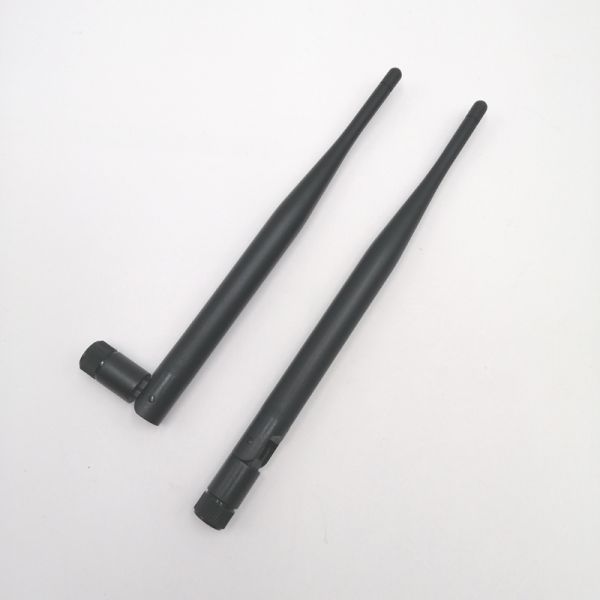

SMA-J 470-510M LoRa Base Station Antenna LoRa Gateway omnidirectional foldable plastic housing antenna 13x196mm
1. Specification

A. Electrical Characteristics
Frequency 470-510MHz
Impedance 50 Ohm
S.W.R. <2.0
Gain 0dBi
Efficiency ≈38%
Polarization Linear
Max Power 50W
B. Material & Mechanical Characteristics
Connector Type SMA -J
Dimension Φ13*196mm
Weight 0.02Kg
Antenna material TPEE + PC black
C. Environmental
Operation Temperature - 40 ˚C ~ + 80 ˚C
Storage Temperature - 40 ˚C ~ + 80 ˚C

2. Antenna - S Parameter Test Data

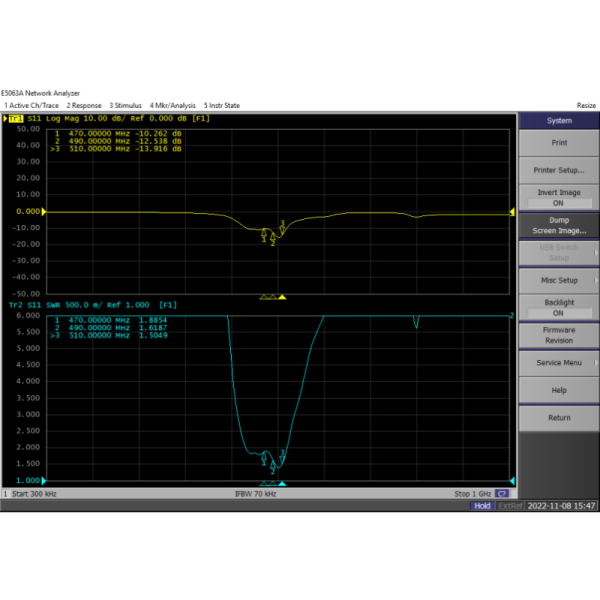

2.1 VSWR

SMA-J 470-510M LoRa Base Station Antenna LoRa Gateway omnidirectional foldable plastic housing antenna 13x196mm

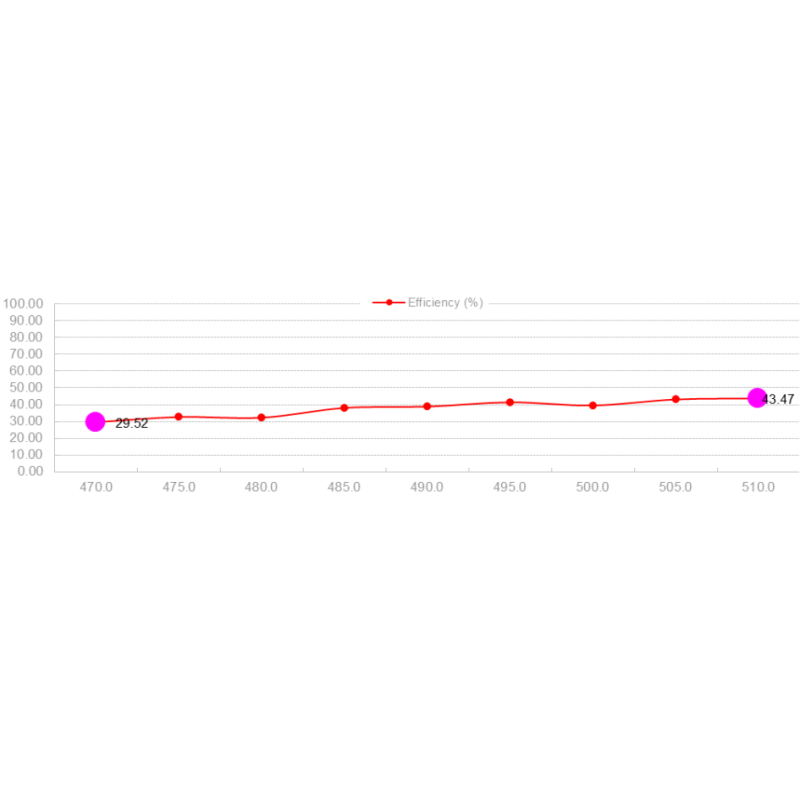

2.2 Total Efficiency & Gain

Frequency (MHz)

470.0

475.0

480.0

485.0

490.0

495.0

500.0

505.0

510.0

Gain (dBi)

-1.54

-1.07

-1.12

-0.46

-0.48

-0.32

-0.63

-0.30

-0.24

Efficiency (%)

29.52

32.60

32.18

37.94

38.71

41.26

39.39

42.93

43.47
SMA-J 470-510M LoRa Base Station Antenna LoRa Gateway omnidirectional foldable plastic housing antenna 13x196mm

2.2 Radiation Pattern


 3D 2D-Horizontal 2D-Vertical
470MHz SMA-J 470-510M LoRa Base Station Antenna LoRa Gateway omnidirectional foldable plastic housing antenna 13x196mm SMA-J 470-510M LoRa Base Station Antenna LoRa Gateway omnidirectional foldable plastic housing antenna 13x196mm SMA-J 470-510M LoRa Base Station Antenna LoRa Gateway omnidirectional foldable plastic housing antenna 13x196mm
490MHz SMA-J 470-510M LoRa Base Station Antenna LoRa Gateway omnidirectional foldable plastic housing antenna 13x196mm SMA-J 470-510M LoRa Base Station Antenna LoRa Gateway omnidirectional foldable plastic housing antenna 13x196mm SMA-J 470-510M LoRa Base Station Antenna LoRa Gateway omnidirectional foldable plastic housing antenna 13x196mm
510MHz SMA-J 470-510M LoRa Base Station Antenna LoRa Gateway omnidirectional foldable plastic housing antenna 13x196mm SMA-J 470-510M LoRa Base Station Antenna LoRa Gateway omnidirectional foldable plastic housing antenna 13x196mm SMA-J 470-510M LoRa Base Station Antenna LoRa Gateway omnidirectional foldable plastic housing antenna 13x196mm
