2.4G 5.8G WiFi6e dual-band omnidirectional network card router with external folding blade-shaped rubber antenna. Frequency range: 2400-2500 M5150-5850MHz, 13x240mm
2.4G 5.8G WiFi6e dual-band omnidirectional network card router with external folding blade-shaped rubber antenna. Frequency range: 2400-2500 M5150-5850MHz, 13x240mm
2.4G 5.8G WiFi6e dual-band omnidirectional network card router with external folding blade-shaped rubber antenna. Frequency range: 2400-2500 M5150-5850MHz, 13x240mm
2.4G 5.8G WiFi6e dual-band omnidirectional network card router with external folding blade-shaped rubber antenna. Frequency range: 2400-2500 M5150-5850MHz, 13x240mm
2.4G 5.8G WiFi6e dual-band omnidirectional network card router with external folding blade-shaped rubber antenna. Frequency range: 2400-2500 M5150-5850MHz, 13x240mm
2.4G 5.8G WiFi6e dual-band omnidirectional network card router with external folding blade-shaped rubber antenna. Frequency range: 2400-2500 M5150-5850MHz, 13x240mm
2.4G 5.8G WiFi6e dual-band omnidirectional network card router with external folding blade-shaped rubber antenna. Frequency range: 2400-2500 M5150-5850MHz, 13x240mm
2.4G 5.8G WiFi6e dual-band omnidirectional network card router with external folding blade-shaped rubber antenna. Frequency range: 2400-2500 M5150-5850MHz, 13x240mm
2.4G 5.8G WiFi6e dual-band omnidirectional network card router with external folding blade-shaped rubber antenna. Frequency range: 2400-2500 M5150-5850MHz, 13x240mm
2.4G 5.8G WiFi6e dual-band omnidirectional network card router with external folding blade-shaped rubber antenna. Frequency range: 2400-2500 M5150-5850MHz, 13x240mm
Specifications
Brand Name :
Leenz
Model Number :
LZANT-10093-A
Certification :
RoHs
Place of Origin :
China
MOQ :
10
Payment Terms :
T/T
Supply Ability :
1K per day
Delivery Time :
15 days
Frequency :
2400-2500/5150-5850M
VSWR :
<2
Peak Gain :
5dBi
Impedance :
50
Description

2.4G5.8G WIFI 157mm omnidirectional router external folding glue stick antenna

1. Specification

A. Electrical Characteristics
Frequency 2400-2500/5150-5850MHz
Impedance 50 Ohm
S.W.R. <2
Gain 2dBi
Efficiency ≈75%
Polarization Linear
Horizontal Beamwidth 360°
Vertical Beamwidth 40°
B. Material & Mechanical Characteristics
Connector Type SMA-J or RP-SMA-J
Dimension Φ13*240mm
Weight 0.02Kg
Radome material PBT+PC black
C. Environmental
Operation Temperature - 40 ˚C ~ + 85˚C
Storage Temperature - 40 ˚C ~ + 85˚C


2. Antenna - S Parameter Test Data

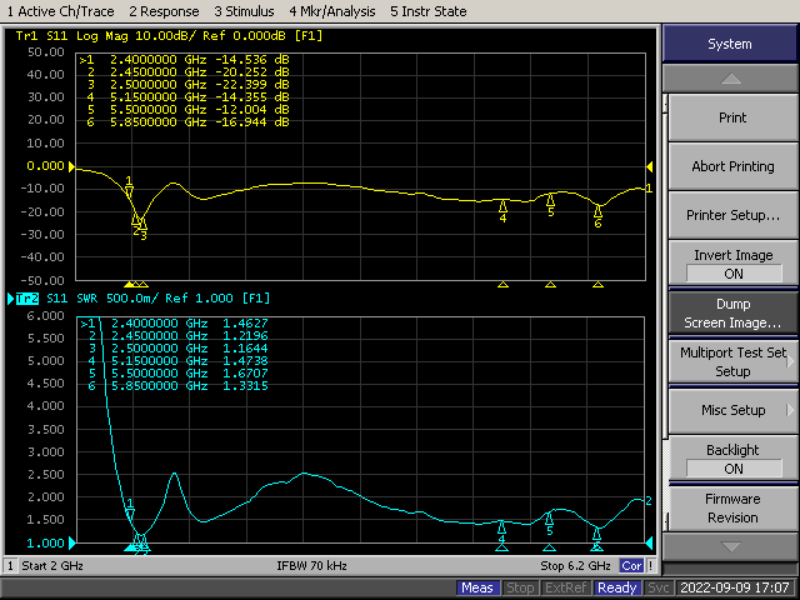

2.1 VSWR
2.4G 5.8G WiFi6e dual-band omnidirectional network card router with external folding blade-shaped rubber antenna. Frequency range: 2400-2500 M5150-5850MHz, 13x240mm

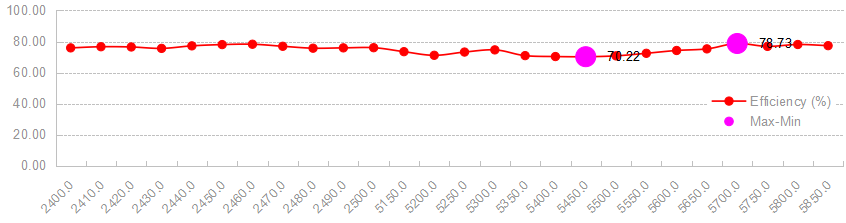

2.2 Total Efficiency & Gain:

Frequency (MHz)

2400

2450

2500

5150

5350

5750

5825

5850

Gain (dBi)

5.0

4.5

4.0

5.0

4.4

3.5

3.7

4.7

Efficiency (%)

65.09

71.07

67.03

65.18

63.45

66.35

59.09

57.39


2.4G 5.8G WiFi6e dual-band omnidirectional network card router with external folding blade-shaped rubber antenna. Frequency range: 2400-2500 M5150-5850MHz, 13x240mm





2.3 Radiation Pattern

 3D 2D-Horizontal 2D-Vertical
2400MHz 2.4G 5.8G WiFi6e dual-band omnidirectional network card router with external folding blade-shaped rubber antenna. Frequency range: 2400-2500 M5150-5850MHz, 13x240mm 2.4G 5.8G WiFi6e dual-band omnidirectional network card router with external folding blade-shaped rubber antenna. Frequency range: 2400-2500 M5150-5850MHz, 13x240mm 2.4G 5.8G WiFi6e dual-band omnidirectional network card router with external folding blade-shaped rubber antenna. Frequency range: 2400-2500 M5150-5850MHz, 13x240mm
2450MHz 2.4G 5.8G WiFi6e dual-band omnidirectional network card router with external folding blade-shaped rubber antenna. Frequency range: 2400-2500 M5150-5850MHz, 13x240mm 2.4G 5.8G WiFi6e dual-band omnidirectional network card router with external folding blade-shaped rubber antenna. Frequency range: 2400-2500 M5150-5850MHz, 13x240mm 2.4G 5.8G WiFi6e dual-band omnidirectional network card router with external folding blade-shaped rubber antenna. Frequency range: 2400-2500 M5150-5850MHz, 13x240mm
2500MHz 2.4G 5.8G WiFi6e dual-band omnidirectional network card router with external folding blade-shaped rubber antenna. Frequency range: 2400-2500 M5150-5850MHz, 13x240mm 2.4G 5.8G WiFi6e dual-band omnidirectional network card router with external folding blade-shaped rubber antenna. Frequency range: 2400-2500 M5150-5850MHz, 13x240mm 2.4G 5.8G WiFi6e dual-band omnidirectional network card router with external folding blade-shaped rubber antenna. Frequency range: 2400-2500 M5150-5850MHz, 13x240mm
5150MHz 2.4G 5.8G WiFi6e dual-band omnidirectional network card router with external folding blade-shaped rubber antenna. Frequency range: 2400-2500 M5150-5850MHz, 13x240mm 2.4G 5.8G WiFi6e dual-band omnidirectional network card router with external folding blade-shaped rubber antenna. Frequency range: 2400-2500 M5150-5850MHz, 13x240mm 2.4G 5.8G WiFi6e dual-band omnidirectional network card router with external folding blade-shaped rubber antenna. Frequency range: 2400-2500 M5150-5850MHz, 13x240mm
5500MHz 2.4G 5.8G WiFi6e dual-band omnidirectional network card router with external folding blade-shaped rubber antenna. Frequency range: 2400-2500 M5150-5850MHz, 13x240mm 2.4G 5.8G WiFi6e dual-band omnidirectional network card router with external folding blade-shaped rubber antenna. Frequency range: 2400-2500 M5150-5850MHz, 13x240mm 2.4G 5.8G WiFi6e dual-band omnidirectional network card router with external folding blade-shaped rubber antenna. Frequency range: 2400-2500 M5150-5850MHz, 13x240mm
5850MHz 2.4G 5.8G WiFi6e dual-band omnidirectional network card router with external folding blade-shaped rubber antenna. Frequency range: 2400-2500 M5150-5850MHz, 13x240mm 2.4G 5.8G WiFi6e dual-band omnidirectional network card router with external folding blade-shaped rubber antenna. Frequency range: 2400-2500 M5150-5850MHz, 13x240mm 2.4G 5.8G WiFi6e dual-band omnidirectional network card router with external folding blade-shaped rubber antenna. Frequency range: 2400-2500 M5150-5850MHz, 13x240mm
