Description

1. Specification

A. Electrical Characteristics
Frequency 600-6000MHz
Impedance 50 Ohm
S.W.R. <4.5
Gain -0.4~+4.5dBi
Efficiency ≈46%
Horizontal Beamwidth 360°
Vertical Beamwidth 12-82°
Polarization Linear
Max Power 50W
B. Material & Mechanical Characteristics
Connector Type SMA-J
Dimension Φ16*200mm
Weight 0.04Kg
Radome material Fiberglass (black)
C. Environmental
Operation Temperature - 40 ˚C ~ + 80 ˚C
Storage Temperature - 40 ˚C ~ + 80 ˚C


2. Antenna - S Parameter Test Data

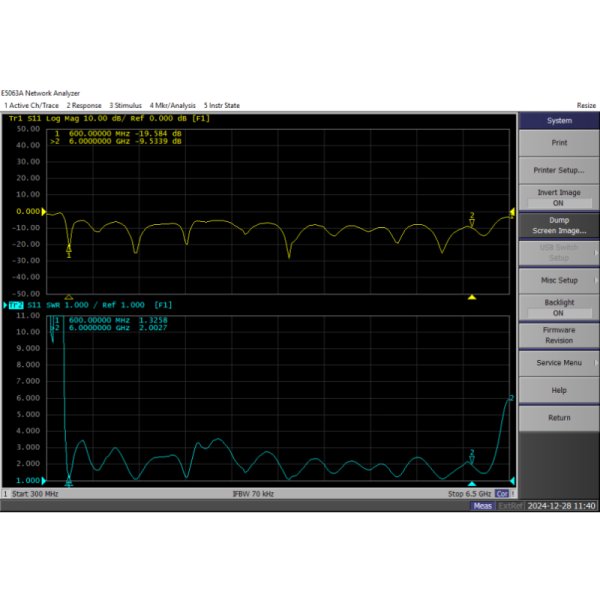

2.1 VSWR
4G5G 600-6000M ultra-wideband outdoor waterproof fiberglass reinforced plastic antenna 16*200mm for SMA-J

2.2 Total Efficiency & Gain:

Frequency(MHz)

Gain(dBi)

Efficiency(%)

Frequency(MHz)

Gain(dBi)

Efficiency(%)

600

2.2

61.1

3400

2.0

57.5

700

1.8

48.5

3500

2.2

63.1

800

1.8

46.0

3600

3.1

63.5

900

1.6

47.2

3700

3.2

65.5

1000

2.8

52.8

3800

3.1

65.9

1100

2.8

53.0

3900

2.1

51.0

1200

1.4

39.0

4000

2.7

56.8

1300

-0.2

35.6

4100

2.8

56.4

1400

1.2

51.7

4200

4.5

58.3

1500

2.6

64.9

4300

4.0

53.2

1600

3.4

67.7

4400

3.6

49.5

1700

2.9

61.9

4500

4.0

57.5

1800

2.2

55.3

4600

3.5

59.4

1900

1.9

53.6

4700

2.0

52.0

2000

1.2

48.3

4800

2.3

45.8

2100

2.1

53.2

4900

3.4

54.6

2200

3.5

53.8

5000

3.6

56.2

2300

3.2

34.3

5100

3.2

56.3

2400

2.1

45.0

5200

2.2

48.1

2500

0.9

51.9

5300

2.0

41.8

2600

-0.3

46.6

5400

2.7

46.9

2700

-0.4

53.7

5500

3.5

50.5

2800

0.0

56.0

5600

3.4

51.3

2900

1.2

58.7

5700

3.2

52.9

3000

0.9

61.2

5800

3.2

54.5

3100

1.2

60.2

5900

3.7

56.2

3200

0.9

55.6

6000

4.1

58.8

3300

1.2

55.1




2.3 Radiation Pattern

 3D 2D-Horizontal 2D-Vertical
600MHz 4G5G 600-6000M ultra-wideband outdoor waterproof fiberglass reinforced plastic antenna 16*200mm for SMA-J 4G5G 600-6000M ultra-wideband outdoor waterproof fiberglass reinforced plastic antenna 16*200mm for SMA-J 4G5G 600-6000M ultra-wideband outdoor waterproof fiberglass reinforced plastic antenna 16*200mm for SMA-J
1500MHz 4G5G 600-6000M ultra-wideband outdoor waterproof fiberglass reinforced plastic antenna 16*200mm for SMA-J 4G5G 600-6000M ultra-wideband outdoor waterproof fiberglass reinforced plastic antenna 16*200mm for SMA-J 4G5G 600-6000M ultra-wideband outdoor waterproof fiberglass reinforced plastic antenna 16*200mm for SMA-J
2500MHz 4G5G 600-6000M ultra-wideband outdoor waterproof fiberglass reinforced plastic antenna 16*200mm for SMA-J 4G5G 600-6000M ultra-wideband outdoor waterproof fiberglass reinforced plastic antenna 16*200mm for SMA-J 4G5G 600-6000M ultra-wideband outdoor waterproof fiberglass reinforced plastic antenna 16*200mm for SMA-J

3D 2D-Horizontal 2D-Vertical
3500MHz 4G5G 600-6000M ultra-wideband outdoor waterproof fiberglass reinforced plastic antenna 16*200mm for SMA-J 4G5G 600-6000M ultra-wideband outdoor waterproof fiberglass reinforced plastic antenna 16*200mm for SMA-J 4G5G 600-6000M ultra-wideband outdoor waterproof fiberglass reinforced plastic antenna 16*200mm for SMA-J
4800MHz 4G5G 600-6000M ultra-wideband outdoor waterproof fiberglass reinforced plastic antenna 16*200mm for SMA-J 4G5G 600-6000M ultra-wideband outdoor waterproof fiberglass reinforced plastic antenna 16*200mm for SMA-J 4G5G 600-6000M ultra-wideband outdoor waterproof fiberglass reinforced plastic antenna 16*200mm for SMA-J
6000MHz 4G5G 600-6000M ultra-wideband outdoor waterproof fiberglass reinforced plastic antenna 16*200mm for SMA-J 4G5G 600-6000M ultra-wideband outdoor waterproof fiberglass reinforced plastic antenna 16*200mm for SMA-J 4G5G 600-6000M ultra-wideband outdoor waterproof fiberglass reinforced plastic antenna 16*200mm for SMA-J
