5G6G UWB 300-6000M ultra-wideband outdoor waterproof fiberglass reinforced plastic antenna 25*300mm
5G6G UWB 300-6000M ultra-wideband outdoor waterproof fiberglass reinforced plastic antenna 25*300mm
5G6G UWB 300-6000M ultra-wideband outdoor waterproof fiberglass reinforced plastic antenna 25*300mm
5G6G UWB 300-6000M ultra-wideband outdoor waterproof fiberglass reinforced plastic antenna 25*300mm
5G6G UWB 300-6000M ultra-wideband outdoor waterproof fiberglass reinforced plastic antenna 25*300mm
5G6G UWB 300-6000M ultra-wideband outdoor waterproof fiberglass reinforced plastic antenna 25*300mm
5G6G UWB 300-6000M ultra-wideband outdoor waterproof fiberglass reinforced plastic antenna 25*300mm
5G6G UWB 300-6000M ultra-wideband outdoor waterproof fiberglass reinforced plastic antenna 25*300mm
Specifications
Brand Name :
Leenz
Model Number :
LZANT-11544-A
Certification :
RoHs
Place of Origin :
China
MOQ :
10
Payment Terms :
T/T
Supply Ability :
500 per day
Delivery Time :
15 days
Frequency :
300-6000MHz
VSWR :
<3.0
Peak Gain :
-7~+7dBi
Impedance :
50
Description

1. Specification

A. Electrical Characteristics
Frequency 300-6000MHz
Impedance 50 Ohm
S.W.R. <3.0
Gain -7~+7dBi
Efficiency ≈46%
Horizontal Beamwidth 360°
Vertical Beamwidth 10-101°
Polarization Linear
Max Power 50W
B. Material & Mechanical Characteristics
Connector Type N connector
Dimension Φ25*300mm
Weight 0.17Kg
Radome material Fiberglass (black)
C. Environmental
Operation Temperature - 40 ˚C ~ + 80 ˚C
Storage Temperature - 40 ˚C ~ + 80 ˚C


2. Antenna - S Parameter Test Data

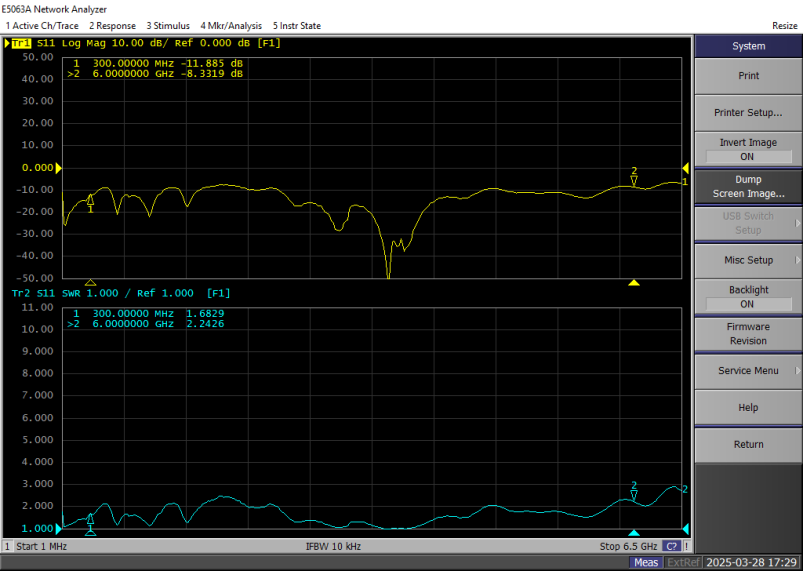

2.1 VSWR
