SMA/TNC male 1410-1530M 2dBi Unmanned Aerial Vehicle Interference Gooseneck Antenna
SMA/TNC male 1410-1530M 2dBi Unmanned Aerial Vehicle Interference Gooseneck Antenna
SMA/TNC male 1410-1530M 2dBi Unmanned Aerial Vehicle Interference Gooseneck Antenna
SMA/TNC male 1410-1530M 2dBi Unmanned Aerial Vehicle Interference Gooseneck Antenna
SMA/TNC male 1410-1530M 2dBi Unmanned Aerial Vehicle Interference Gooseneck Antenna
SMA/TNC male 1410-1530M 2dBi Unmanned Aerial Vehicle Interference Gooseneck Antenna
SMA/TNC male 1410-1530M 2dBi Unmanned Aerial Vehicle Interference Gooseneck Antenna
SMA/TNC male 1410-1530M 2dBi Unmanned Aerial Vehicle Interference Gooseneck Antenna
SMA/TNC male 1410-1530M 2dBi Unmanned Aerial Vehicle Interference Gooseneck Antenna
SMA/TNC male 1410-1530M 2dBi Unmanned Aerial Vehicle Interference Gooseneck Antenna
Specifications
Brand Name :
Leenz
Model Number :
LZANT-12030-A
Certification :
RoHs
Place of Origin :
China
MOQ :
10
Payment Terms :
T/T
Supply Ability :
500 per day
Delivery Time :
15 days
Frequency :
1410-1530MHz
VSWR :
<2.0
Peak Gain :
2dBi
Impedance :
50
Description

1. Specification

A. Electrical Characteristics
Frequency 1410-1530MHz
VSWR < 2.0
Efficiency ≈73%
Peak Gain 2dBi
Impedance 50 Ohm
Polarization Linear
Horizontal Beamwidth 360°
Vertical Beamwidth 24-67°
T90(H) roundness ±0.5
Max Power 50W
B. Material & Mechanical
Connector Type TNC-J or SMA-J
Dimension Φ16*300±5mm
Weight 0.11Kg
Radome material Fiberglass (Black)

C. Environmental
Operation Temperature - 45˚C ~ +85 ˚C
Storage Temperature - 45˚C ~ +85 ˚C
Rated Wind Velocity 36.9m/s
Lighting Protection Dc grounding

2. Antenna - S Parameter Test Data

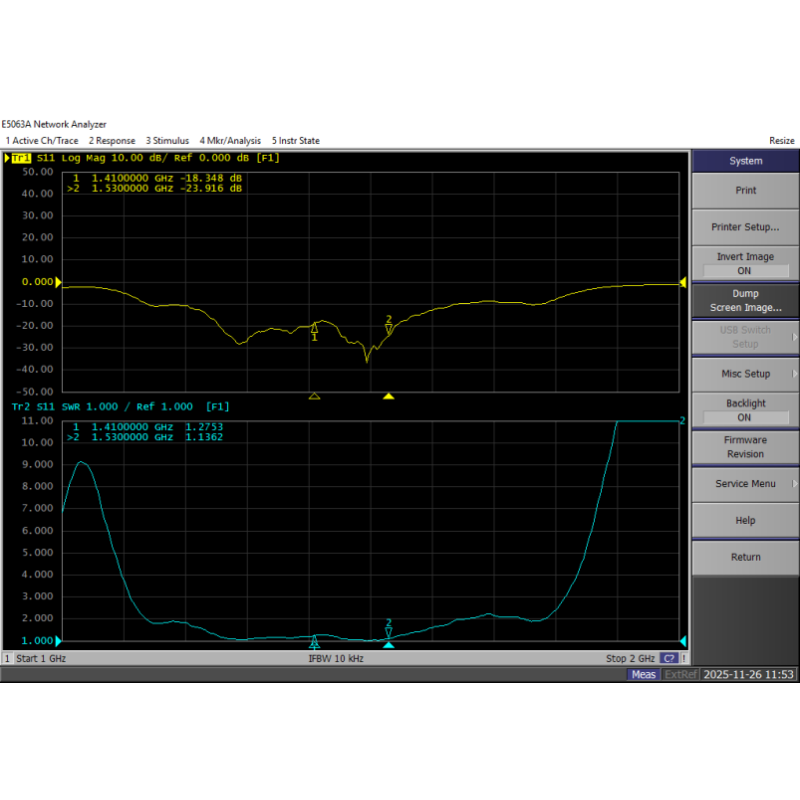

2.1 VSWR
SMA/TNC male 1410-1530M 2dBi Unmanned Aerial Vehicle Interference Gooseneck Antenna

2.2 Total Efficiency & Gain:

Frequency(MHz)

Gain(dBi)

Efficiency(%)

1410

3.0

74.0

1430

2.4

76.0

1450

2.2

72.3

1470

2.5

72.2

1490

1.8

69.5

1510

1.9

73.7

1530

2.0

75.3

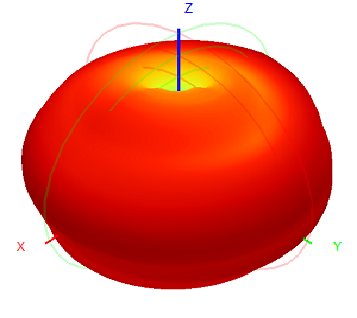

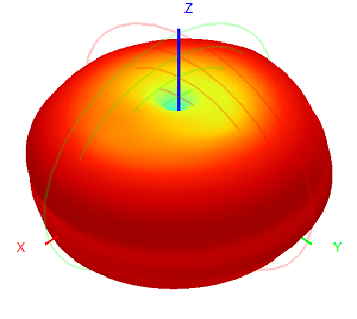

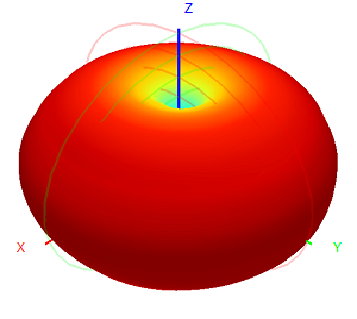

2.3 Radiation Pattern



 3D 2D-Horizontal 2D-Vertical
1410MHz SMA/TNC male 1410-1530M 2dBi Unmanned Aerial Vehicle Interference Gooseneck Antenna SMA/TNC male 1410-1530M 2dBi Unmanned Aerial Vehicle Interference Gooseneck Antenna SMA/TNC male 1410-1530M 2dBi Unmanned Aerial Vehicle Interference Gooseneck Antenna
1470MHz SMA/TNC male 1410-1530M 2dBi Unmanned Aerial Vehicle Interference Gooseneck Antenna SMA/TNC male 1410-1530M 2dBi Unmanned Aerial Vehicle Interference Gooseneck Antenna SMA/TNC male 1410-1530M 2dBi Unmanned Aerial Vehicle Interference Gooseneck Antenna
1530MHz SMA/TNC male 1410-1530M 2dBi Unmanned Aerial Vehicle Interference Gooseneck Antenna SMA/TNC male 1410-1530M 2dBi Unmanned Aerial Vehicle Interference Gooseneck Antenna SMA/TNC male 1410-1530M 2dBi Unmanned Aerial Vehicle Interference Gooseneck Antenna
