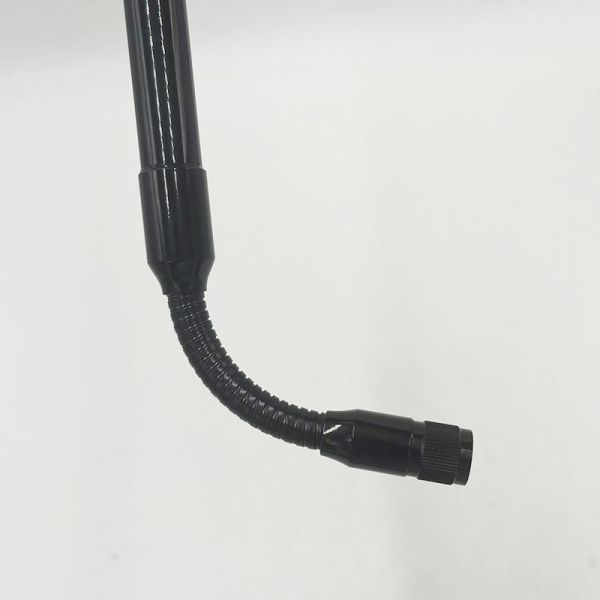

SMA/TNC male 5.8G 6dBi Omni Unmanned Aerial Vehicle Interference Gooseneck Antenna
SMA/TNC male 5.8G 6dBi Omni Unmanned Aerial Vehicle Interference Gooseneck Antenna
SMA/TNC male 5.8G 6dBi Omni Unmanned Aerial Vehicle Interference Gooseneck Antenna
SMA/TNC male 5.8G 6dBi Omni Unmanned Aerial Vehicle Interference Gooseneck Antenna
SMA/TNC male 5.8G 6dBi Omni Unmanned Aerial Vehicle Interference Gooseneck Antenna
SMA/TNC male 5.8G 6dBi Omni Unmanned Aerial Vehicle Interference Gooseneck Antenna
SMA/TNC male 5.8G 6dBi Omni Unmanned Aerial Vehicle Interference Gooseneck Antenna
SMA/TNC male 5.8G 6dBi Omni Unmanned Aerial Vehicle Interference Gooseneck Antenna
SMA/TNC male 5.8G 6dBi Omni Unmanned Aerial Vehicle Interference Gooseneck Antenna
SMA/TNC male 5.8G 6dBi Omni Unmanned Aerial Vehicle Interference Gooseneck Antenna
Specifications
Brand Name :
Leenz
Model Number :
LZANT-11984-A
Certification :
RoHs
Place of Origin :
China
MOQ :
10
Payment Terms :
T/T
Supply Ability :
500 per day
Delivery Time :
15 days
Frequency :
5750-5950MHz
VSWR :
<2.0
Peak Gain :
6dBi
Impedance :
50
Description

1. Specification

A. Electrical Characteristics
Frequency 5750-5950MHz
VSWR < 2.0
Efficiency ≈81%
Peak Gain 6dBi
Impedance 50 Ohm
Polarization Linear
Horizontal Beamwidth 360°
Vertical Beamwidth 19-26°
T90(H) roundness ±0.5
Max Power 50W
B. Material & Mechanical

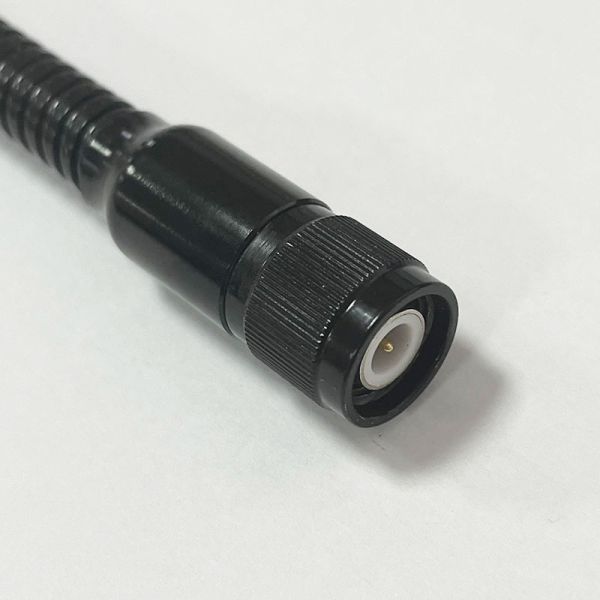

Connector Type TNC-J or SMA-J

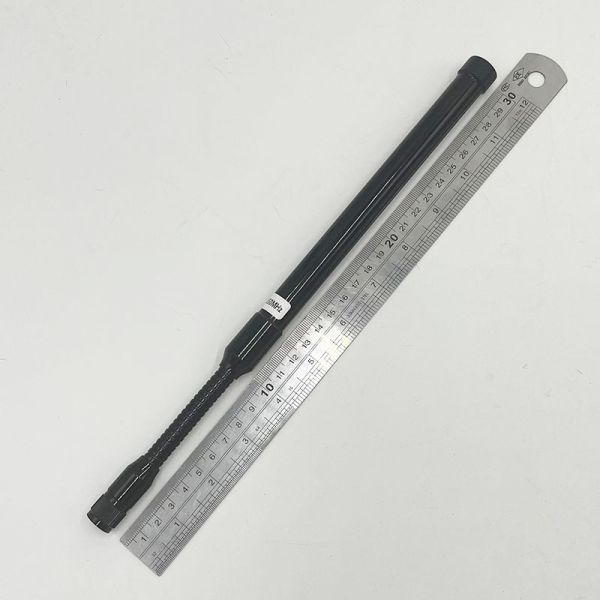

Dimension Φ16*300±5mm
Weight 0.11Kg
Radome material Fiberglass (Black)

C. Environmental
Operation Temperature - 45˚C ~ +85 ˚C
Storage Temperature - 45˚C ~ +85 ˚C
Rated Wind Velocity 36.9m/s
Lighting Protection Dc grounding

2. Antenna - S Parameter Test Data

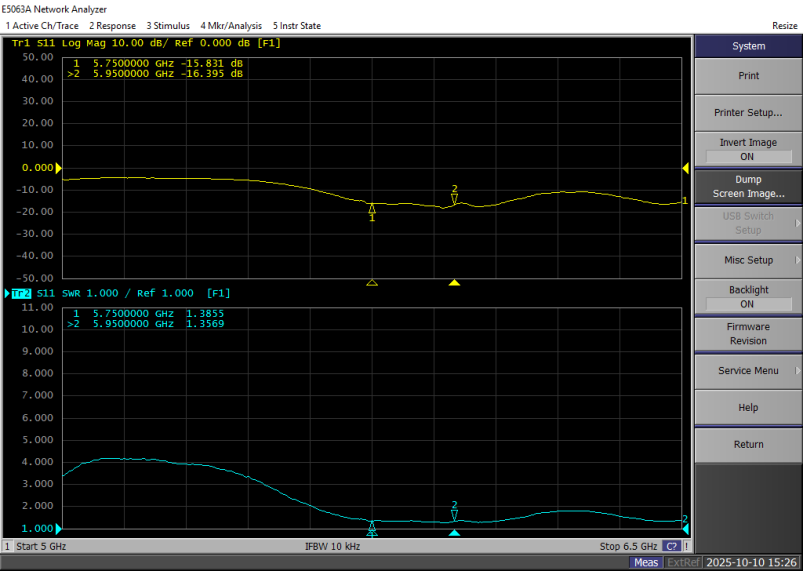

2.1 VSWR
SMA/TNC male 5.8G 6dBi Omni Unmanned Aerial Vehicle Interference Gooseneck Antenna

2.2 Total Efficiency & Gain:

Frequency(MHz)

Gain(dBi)

Efficiency(%)

5750

5.9

83.7

5800

5.9

86.8

5850

5.4

78.0

5900

5.7

84.3

5950

6.2

81.9

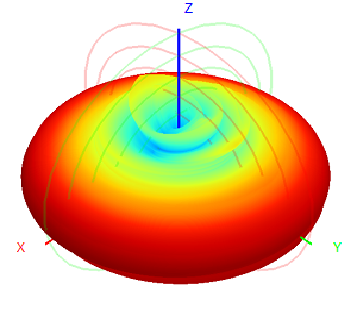

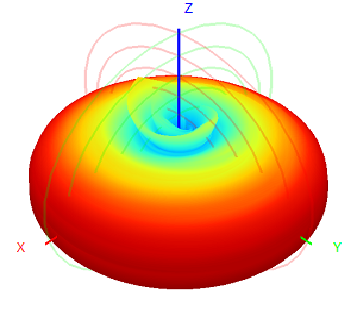

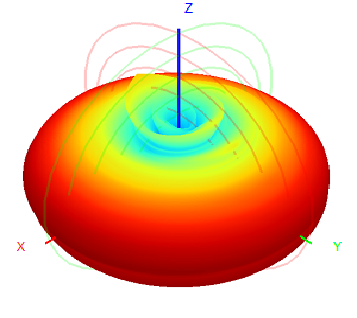

2.3 Radiation Pattern



 3D 2D-Horizontal 2D-Vertical
5750MHz SMA/TNC male 5.8G 6dBi Omni Unmanned Aerial Vehicle Interference Gooseneck Antenna SMA/TNC male 5.8G 6dBi Omni Unmanned Aerial Vehicle Interference Gooseneck Antenna SMA/TNC male 5.8G 6dBi Omni Unmanned Aerial Vehicle Interference Gooseneck Antenna
5850MHz SMA/TNC male 5.8G 6dBi Omni Unmanned Aerial Vehicle Interference Gooseneck Antenna SMA/TNC male 5.8G 6dBi Omni Unmanned Aerial Vehicle Interference Gooseneck Antenna SMA/TNC male 5.8G 6dBi Omni Unmanned Aerial Vehicle Interference Gooseneck Antenna
5950MHz SMA/TNC male 5.8G 6dBi Omni Unmanned Aerial Vehicle Interference Gooseneck Antenna SMA/TNC male 5.8G 6dBi Omni Unmanned Aerial Vehicle Interference Gooseneck Antenna SMA/TNC male 5.8G 6dBi Omni Unmanned Aerial Vehicle Interference Gooseneck Antenna
