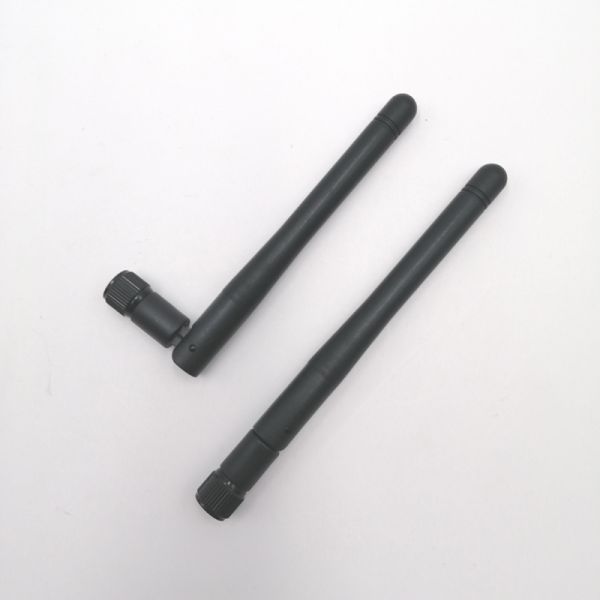

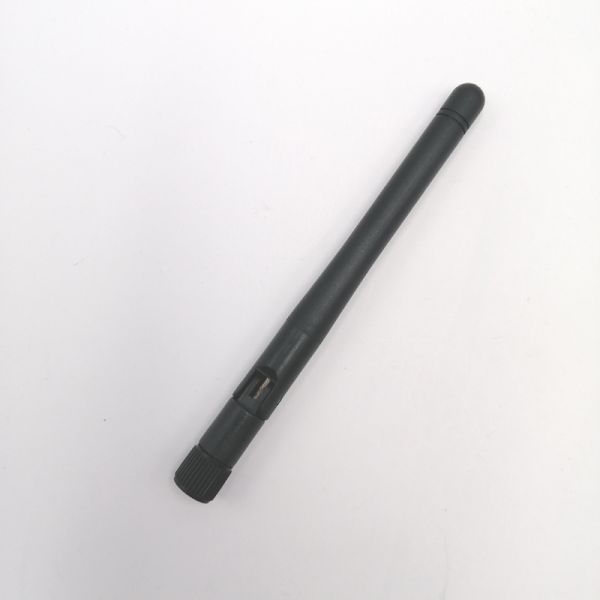

RP SMA-J 2.4/5.8G 2400-2500/5150-5850M 3dbi omnidirectional Wi-Fi Bluetooth ZigBee plastic rod-shaped antenna 10x109mm

1. Specification

A. Electrical Characteristics
Frequency 2400-2500/5150-5850MHz
Impedance 50 Ohm
S.W.R. <2
Gain 3dBi
Efficiency ≈65%
Polarization Linear
Horizontal Beamwidth 360°
Vertical Beamwidth 40±5°
B. Material & Mechanical Characteristics
Connector Type RP-SMA-J
Dimension Φ10*109mm
Weight 0.01Kg
Radome material PBT+PC Black
C. Environmental
Operation Temperature - 40 ˚C ~ + 85˚C
Storage Temperature - 40 ˚C ~ + 85˚C


2. Antenna - S Parameter Test Data

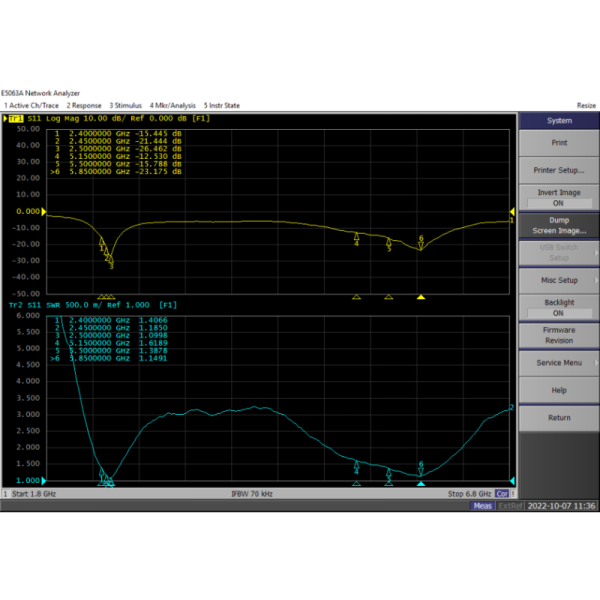

2.1 VSWR

RP SMA-J 2.4/5.8G 2400-2500/5150-5850M 3dbi omnidirectional Wi-Fi Bluetooth ZigBee plastic rod-shaped antenna 10x109mm

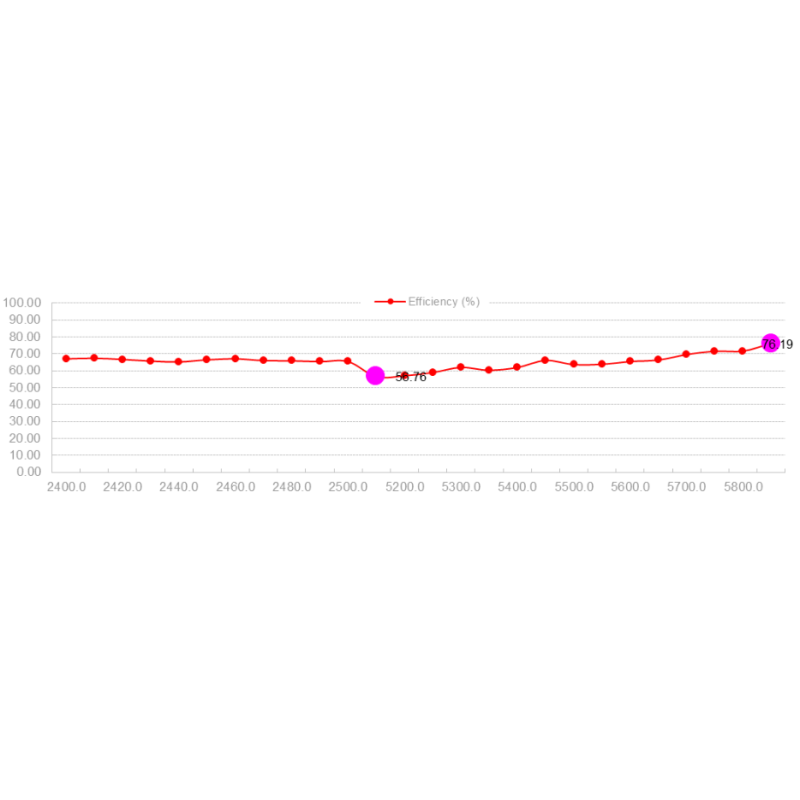

2.2 Total Efficiency & Gain:

Frequency (MHz)

2400.0

2410.0

2420.0

2430.0

2440.0

2450.0

2460.0

2470.0

2480.0

2490.0

2500.0

Gain (dBi)

2.67

2.63

2.59

2.62

2.69

2.70

2.59

2.40

2.48

2.60

2.56

Efficiency (%)

67.13

67.52

66.78

65.84

65.36

66.56

67.15

66.13

65.99

65.52

65.54

Frequency (MHz)

5150

5200

5250

5300

5350

5400

5450

5500

5550

5600

5650

5700

5750

5800

5850

Gain (dBi)

1.84

1.89

2.03

2.33

2.21

2.37

2.72

2.68

2.64

2.81

2.89

2.95

3.11

3.14

3.35

Efficiency (%)

56.76

57.26

59.14

62.14

60.51

62.11

66.22

63.83

63.98

65.57

66.46

69.67

71.63

71.69

76.19

RP SMA-J 2.4/5.8G 2400-2500/5150-5850M 3dbi omnidirectional Wi-Fi Bluetooth ZigBee plastic rod-shaped antenna 10x109mm





2.3 Radiation Pattern

 3D 2D-Horizontal 2D-Vertical
2400MHz RP SMA-J 2.4/5.8G 2400-2500/5150-5850M 3dbi omnidirectional Wi-Fi Bluetooth ZigBee plastic rod-shaped antenna 10x109mm RP SMA-J 2.4/5.8G 2400-2500/5150-5850M 3dbi omnidirectional Wi-Fi Bluetooth ZigBee plastic rod-shaped antenna 10x109mm RP SMA-J 2.4/5.8G 2400-2500/5150-5850M 3dbi omnidirectional Wi-Fi Bluetooth ZigBee plastic rod-shaped antenna 10x109mm
2450MHz RP SMA-J 2.4/5.8G 2400-2500/5150-5850M 3dbi omnidirectional Wi-Fi Bluetooth ZigBee plastic rod-shaped antenna 10x109mm RP SMA-J 2.4/5.8G 2400-2500/5150-5850M 3dbi omnidirectional Wi-Fi Bluetooth ZigBee plastic rod-shaped antenna 10x109mm RP SMA-J 2.4/5.8G 2400-2500/5150-5850M 3dbi omnidirectional Wi-Fi Bluetooth ZigBee plastic rod-shaped antenna 10x109mm
2500MHz RP SMA-J 2.4/5.8G 2400-2500/5150-5850M 3dbi omnidirectional Wi-Fi Bluetooth ZigBee plastic rod-shaped antenna 10x109mm RP SMA-J 2.4/5.8G 2400-2500/5150-5850M 3dbi omnidirectional Wi-Fi Bluetooth ZigBee plastic rod-shaped antenna 10x109mm RP SMA-J 2.4/5.8G 2400-2500/5150-5850M 3dbi omnidirectional Wi-Fi Bluetooth ZigBee plastic rod-shaped antenna 10x109mm





3D 2D-Horizontal 2D-Vertical
5150MHz RP SMA-J 2.4/5.8G 2400-2500/5150-5850M 3dbi omnidirectional Wi-Fi Bluetooth ZigBee plastic rod-shaped antenna 10x109mm RP SMA-J 2.4/5.8G 2400-2500/5150-5850M 3dbi omnidirectional Wi-Fi Bluetooth ZigBee plastic rod-shaped antenna 10x109mm RP SMA-J 2.4/5.8G 2400-2500/5150-5850M 3dbi omnidirectional Wi-Fi Bluetooth ZigBee plastic rod-shaped antenna 10x109mm
5500MHz RP SMA-J 2.4/5.8G 2400-2500/5150-5850M 3dbi omnidirectional Wi-Fi Bluetooth ZigBee plastic rod-shaped antenna 10x109mm RP SMA-J 2.4/5.8G 2400-2500/5150-5850M 3dbi omnidirectional Wi-Fi Bluetooth ZigBee plastic rod-shaped antenna 10x109mm RP SMA-J 2.4/5.8G 2400-2500/5150-5850M 3dbi omnidirectional Wi-Fi Bluetooth ZigBee plastic rod-shaped antenna 10x109mm
5850MHz RP SMA-J 2.4/5.8G 2400-2500/5150-5850M 3dbi omnidirectional Wi-Fi Bluetooth ZigBee plastic rod-shaped antenna 10x109mm RP SMA-J 2.4/5.8G 2400-2500/5150-5850M 3dbi omnidirectional Wi-Fi Bluetooth ZigBee plastic rod-shaped antenna 10x109mm RP SMA-J 2.4/5.8G 2400-2500/5150-5850M 3dbi omnidirectional Wi-Fi Bluetooth ZigBee plastic rod-shaped antenna 10x109mm
