5.8G 3dbi WiFi plastic rod antenna drone image transmission antenna 10x109mm
5.8G 3dbi WiFi plastic rod antenna drone image transmission antenna 10x109mm
5.8G 3dbi WiFi plastic rod antenna drone image transmission antenna 10x109mm
5.8G 3dbi WiFi plastic rod antenna drone image transmission antenna 10x109mm
5.8G 3dbi WiFi plastic rod antenna drone image transmission antenna 10x109mm
5.8G 3dbi WiFi plastic rod antenna drone image transmission antenna 10x109mm
5.8G 3dbi WiFi plastic rod antenna drone image transmission antenna 10x109mm
5.8G 3dbi WiFi plastic rod antenna drone image transmission antenna 10x109mm
5.8G 3dbi WiFi plastic rod antenna drone image transmission antenna 10x109mm
5.8G 3dbi WiFi plastic rod antenna drone image transmission antenna 10x109mm
Specifications
Brand Name :
Leenz
Model Number :
LZANT-10244-D
Certification :
RoHs
Place of Origin :
China
MOQ :
10
Payment Terms :
T/T
Supply Ability :
1K per day
Delivery Time :
15 days
Frequency :
5150-5850MHz
VSWR :
<2.0
Peak Gain :
3dBi
Impedance :
50
Description

5.8G 3dbi WiFi plastic rod antenna drone image transmission antenna 10x109mm
1. Specification

A. Electrical Characteristics
Frequency 5150-5850MHz
Impedance 50 Ohm
S.W.R. <2.0
Gain 3dBi
Efficiency ≈68%
Polarization Linear
Max Power 50W
B. Material & Mechanical Characteristics
Connector Type SMA -J
Dimension Φ10*109mm
Weight 0.01Kg
Antenna material ABS black
C. Environmental
Operation Temperature - 40 ˚C ~ + 80 ˚C
Storage Temperature - 40 ˚C ~ + 80 ˚C

2. Antenna - S Parameter Test Data

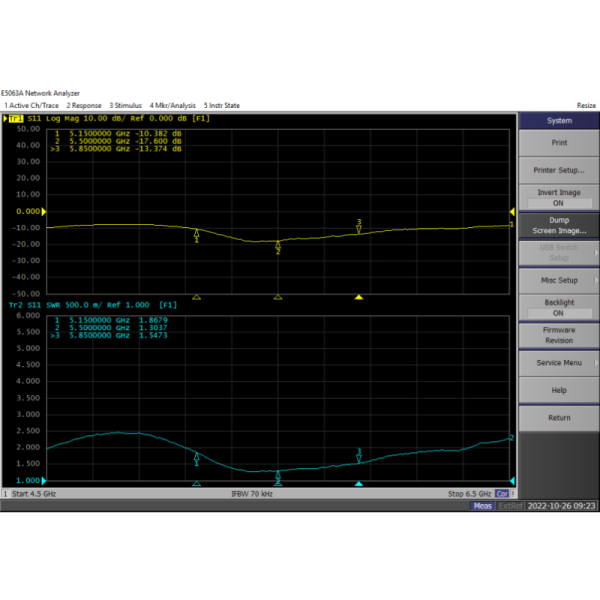

2.1 VSWR

5.8G 3dbi WiFi plastic rod antenna drone image transmission antenna 10x109mm

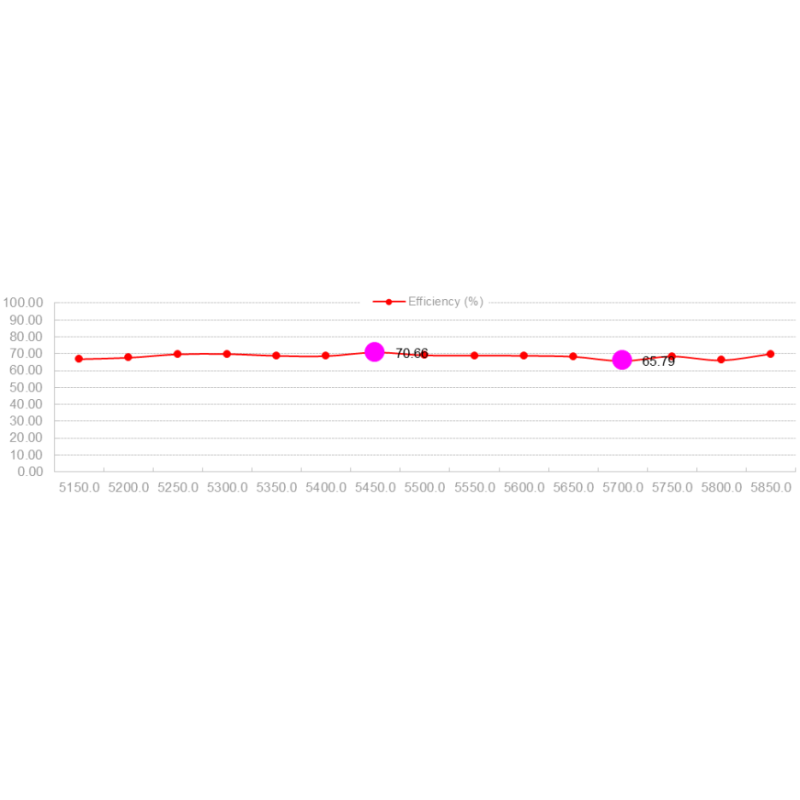

2.2 Total Efficiency & Gain

Frequency (MHz)

5150

5200

5250

5300

5350

5400

5450

5500

5550

5600

5650

5700

5750

5800

5850

Gain (dBi)

3.01

3.25

3.35

3.54

3.72

3.82

4.11

4.03

3.93

3.92

3.93

3.95

3.94

3.67

3.86

Efficiency (%)

66.83

67.64

69.63

69.76

68.75

68.58

70.66

69.00

68.86

68.79

68.25

65.79

68.41

66.17

69.78
5.8G 3dbi WiFi plastic rod antenna drone image transmission antenna 10x109mm

2.2 Radiation Pattern


 3D 2D-Horizontal 2D-Vertical
5150MHz 5.8G 3dbi WiFi plastic rod antenna drone image transmission antenna 10x109mm 5.8G 3dbi WiFi plastic rod antenna drone image transmission antenna 10x109mm 5.8G 3dbi WiFi plastic rod antenna drone image transmission antenna 10x109mm
5500MHz 5.8G 3dbi WiFi plastic rod antenna drone image transmission antenna 10x109mm 5.8G 3dbi WiFi plastic rod antenna drone image transmission antenna 10x109mm 5.8G 3dbi WiFi plastic rod antenna drone image transmission antenna 10x109mm
5850MHz 5.8G 3dbi WiFi plastic rod antenna drone image transmission antenna 10x109mm 5.8G 3dbi WiFi plastic rod antenna drone image transmission antenna 10x109mm 5.8G 3dbi WiFi plastic rod antenna drone image transmission antenna 10x109mm
