Specifications
Brand Name :
Leenz
Model Number :
LZANT-10339-A
Certification :
RoHs
Place of Origin :
China
MOQ :
10
Payment Terms :
T/T
Supply Ability :
1K per day
Delivery Time :
15 days
Frequency :
840±15MHz
VSWR :
<2.0
Peak Gain :
2dBi
Impedance :
50
Description

840M omnidirectional rubber-coated antenna for drone video transmission 13x196mm
1. Specification

A. Electrical Characteristics
Frequency 840±15MHz
Impedance 50 Ohm
S.W.R. <2.0
Gain 2dBi
Efficiency ≈35%
Polarization Linear
Max Power 50W
B. Material & Mechanical Characteristics
Connector Type SMA -J
Dimension Φ13*196mm
Weight 0.02Kg
Antenna material ABS black
C. Environmental
Operation Temperature - 40 ˚C ~ + 80 ˚C
Storage Temperature - 40 ˚C ~ + 80 ˚C

2. Antenna - S Parameter Test Data

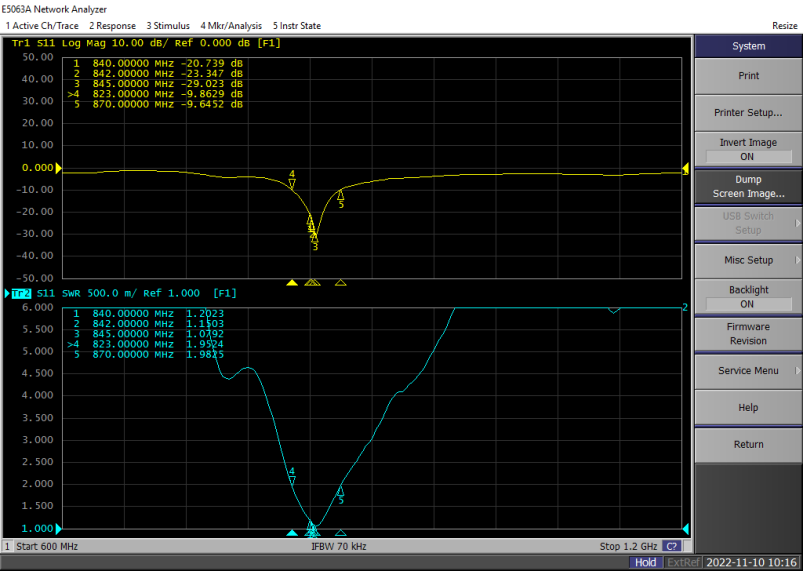

2.1 VSWR

840M omnidirectional rubber-coated antenna for drone video transmission 13x196mm

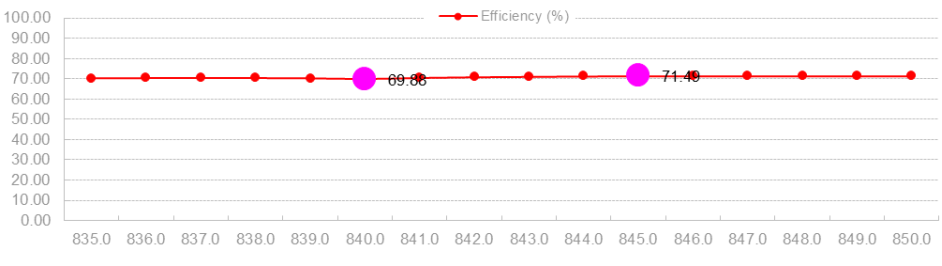

2.2 Total Efficiency & Gain


Frequency (MHz)

835.0

836.0

837.0

838.0

839.0

840.0

841.0

842.0

843.0

844.0

Gain (dBi)

2.38

2.34

2.31

2.27

2.22

2.16

2.17

2.17

2.16

2.14

Efficiency (%)

70.32

70.42

70.49

70.45

70.26

69.88

70.47

70.89

71.15

71.33

Frequency (MHz)

845.0

846.0

847.0

848.0

849.0

850.0

Gain (dBi)

2.13

2.11

2.08

2.06

2.04

2.03

Efficiency (%)

71.49

71.43

71.39

71.37

71.39

71.44

840M omnidirectional rubber-coated antenna for drone video transmission 13x196mm

2.2 Radiation Pattern


 3D 2D-Horizontal 2D-Vertical
835MHz 840M omnidirectional rubber-coated antenna for drone video transmission 13x196mm 840M omnidirectional rubber-coated antenna for drone video transmission 13x196mm 840M omnidirectional rubber-coated antenna for drone video transmission 13x196mm
842MHz 840M omnidirectional rubber-coated antenna for drone video transmission 13x196mm 840M omnidirectional rubber-coated antenna for drone video transmission 13x196mm 840M omnidirectional rubber-coated antenna for drone video transmission 13x196mm
850MHz 840M omnidirectional rubber-coated antenna for drone video transmission 13x196mm 840M omnidirectional rubber-coated antenna for drone video transmission 13x196mm 840M omnidirectional rubber-coated antenna for drone video transmission 13x196mm
