2.4G 2400-2500M 3dbi WiFi Bluetooth ZigBee plastic rod antenna drone image transmission antenna 10x109mm
2.4G 2400-2500M 3dbi WiFi Bluetooth ZigBee plastic rod antenna drone image transmission antenna 10x109mm
2.4G 2400-2500M 3dbi WiFi Bluetooth ZigBee plastic rod antenna drone image transmission antenna 10x109mm
2.4G 2400-2500M 3dbi WiFi Bluetooth ZigBee plastic rod antenna drone image transmission antenna 10x109mm
2.4G 2400-2500M 3dbi WiFi Bluetooth ZigBee plastic rod antenna drone image transmission antenna 10x109mm
2.4G 2400-2500M 3dbi WiFi Bluetooth ZigBee plastic rod antenna drone image transmission antenna 10x109mm
2.4G 2400-2500M 3dbi WiFi Bluetooth ZigBee plastic rod antenna drone image transmission antenna 10x109mm
2.4G 2400-2500M 3dbi WiFi Bluetooth ZigBee plastic rod antenna drone image transmission antenna 10x109mm
2.4G 2400-2500M 3dbi WiFi Bluetooth ZigBee plastic rod antenna drone image transmission antenna 10x109mm
2.4G 2400-2500M 3dbi WiFi Bluetooth ZigBee plastic rod antenna drone image transmission antenna 10x109mm
Specifications
Brand Name :
Leenz
Model Number :
LZANT-10173-A
Certification :
RoHs
Place of Origin :
China
MOQ :
10
Payment Terms :
T/T
Supply Ability :
1K per day
Delivery Time :
15 days
Frequency :
2400-2500MHz
VSWR :
<2.0
Peak Gain :
3dBi
Impedance :
50
Description

2.4G 2400-2500M 3dbi WiFi Bluetooth ZigBee plastic rod antenna drone image transmission antenna 10x109mm
1. Specification

A. Electrical Characteristics
Frequency 2400-2500MHz
Impedance 50 Ohm
S.W.R. <2.0
Gain 3dBi
Efficiency ≈79%
Polarization Linear
Max Power 50W
B. Material & Mechanical Characteristics
Connector Type SMA -J
Dimension Φ10*109mm
Weight 0.01Kg
Antenna material ABS black
C. Environmental
Operation Temperature - 40 ˚C ~ + 80 ˚C
Storage Temperature - 40 ˚C ~ + 80 ˚C

2. Antenna - S Parameter Test Data

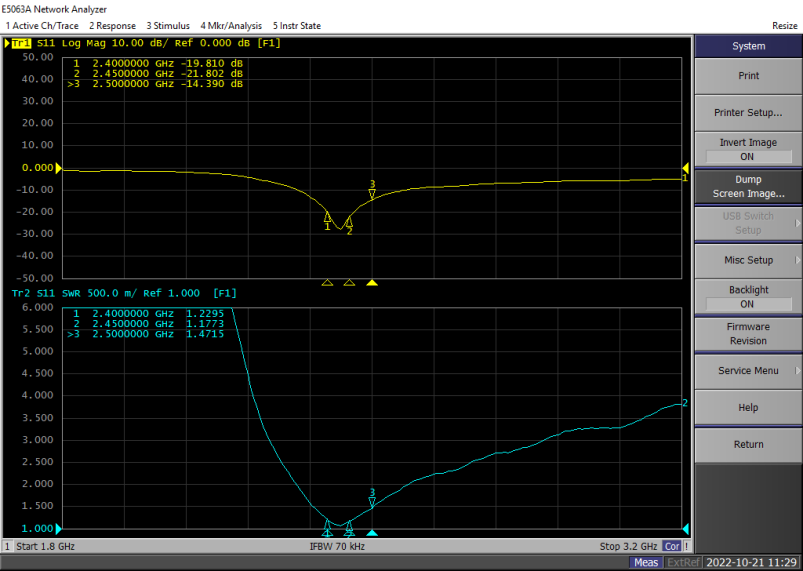

2.1 VSWR


2.4G 2400-2500M 3dbi WiFi Bluetooth ZigBee plastic rod antenna drone image transmission antenna 10x109mm

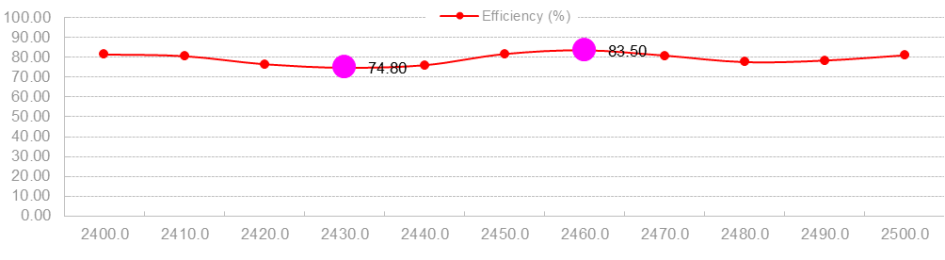

2.2 Total Efficiency & Gain

Frequency (MHz)

2400.0

2410.0

2420.0

2430.0

2440.0

2450.0

2460.0

2470.0

2480.0

2490.0

2500.0

Gain (dBi)

2.98

2.84

2.59

2.46

2.52

2.78

2.81

2.64

2.40

2.36

2.46

Efficiency (%)

81.41

80.58

76.55

74.80

76.09

81.65

83.50

80.88

77.60

78.39

81.03
2.4G 2400-2500M 3dbi WiFi Bluetooth ZigBee plastic rod antenna drone image transmission antenna 10x109mm

2.2 Radiation Pattern


 3D 2D-Horizontal 2D-Vertical
2400MHz 2.4G 2400-2500M 3dbi WiFi Bluetooth ZigBee plastic rod antenna drone image transmission antenna 10x109mm 2.4G 2400-2500M 3dbi WiFi Bluetooth ZigBee plastic rod antenna drone image transmission antenna 10x109mm 2.4G 2400-2500M 3dbi WiFi Bluetooth ZigBee plastic rod antenna drone image transmission antenna 10x109mm
2500MHz 2.4G 2400-2500M 3dbi WiFi Bluetooth ZigBee plastic rod antenna drone image transmission antenna 10x109mm 2.4G 2400-2500M 3dbi WiFi Bluetooth ZigBee plastic rod antenna drone image transmission antenna 10x109mm 2.4G 2400-2500M 3dbi WiFi Bluetooth ZigBee plastic rod antenna drone image transmission antenna 10x109mm
2600MHz 2.4G 2400-2500M 3dbi WiFi Bluetooth ZigBee plastic rod antenna drone image transmission antenna 10x109mm 2.4G 2400-2500M 3dbi WiFi Bluetooth ZigBee plastic rod antenna drone image transmission antenna 10x109mm 2.4G 2400-2500M 3dbi WiFi Bluetooth ZigBee plastic rod antenna drone image transmission antenna 10x109mm
