TNC connector 340-370M gooseneck antenna, flexible antenna, omnidirectional waterproof antenna, fiberglass antenna. Dimensions: 16 * 580mm.
TNC connector 340-370M gooseneck antenna, flexible antenna, omnidirectional waterproof antenna, fiberglass antenna. Dimensions: 16 * 580mm.
TNC connector 340-370M gooseneck antenna, flexible antenna, omnidirectional waterproof antenna, fiberglass antenna. Dimensions: 16 * 580mm.
TNC connector 340-370M gooseneck antenna, flexible antenna, omnidirectional waterproof antenna, fiberglass antenna. Dimensions: 16 * 580mm.
TNC connector 340-370M gooseneck antenna, flexible antenna, omnidirectional waterproof antenna, fiberglass antenna. Dimensions: 16 * 580mm.
TNC connector 340-370M gooseneck antenna, flexible antenna, omnidirectional waterproof antenna, fiberglass antenna. Dimensions: 16 * 580mm.
TNC connector 340-370M gooseneck antenna, flexible antenna, omnidirectional waterproof antenna, fiberglass antenna. Dimensions: 16 * 580mm.
TNC connector 340-370M gooseneck antenna, flexible antenna, omnidirectional waterproof antenna, fiberglass antenna. Dimensions: 16 * 580mm.
TNC connector 340-370M gooseneck antenna, flexible antenna, omnidirectional waterproof antenna, fiberglass antenna. Dimensions: 16 * 580mm.
TNC connector 340-370M gooseneck antenna, flexible antenna, omnidirectional waterproof antenna, fiberglass antenna. Dimensions: 16 * 580mm.
Specifications
Brand Name :
Leenz
Model Number :
LZANT-10764-A
Certification :
RoHs
Place of Origin :
China
MOQ :
10
Payment Terms :
T/T
Supply Ability :
500 per day
Delivery Time :
15 days
Frequency :
340-370MHz
VSWR :
<2.0
Peak Gain :
2dBi
Impedance :
50
Description

1. Specification

A. Electrical Characteristics
Frequency 340-370MHz
VSWR < 2.0
Efficiency ≈79%
Peak Gain 2dBi
Impedance 50 Ohm
Polarization Linear
Horizontal Beamwidth 360°
Vertical Beamwidth 50-90°
T90(H) roundness ±1
Max Power 50W
B. Material & Mechanical
Connector Type TNC-J
Dimension Φ16*580±5mm
Weight 0.2Kg
Radome material FRP (Black)

C. Environmental
Operation Temperature - 45˚C ~ +85 ˚C
Storage Temperature - 45˚C ~ +85 ˚C
Rated Wind Velocity 36.9m/s
Lighting Protection Dc grounding

2. Antenna - S Parameter Test Data

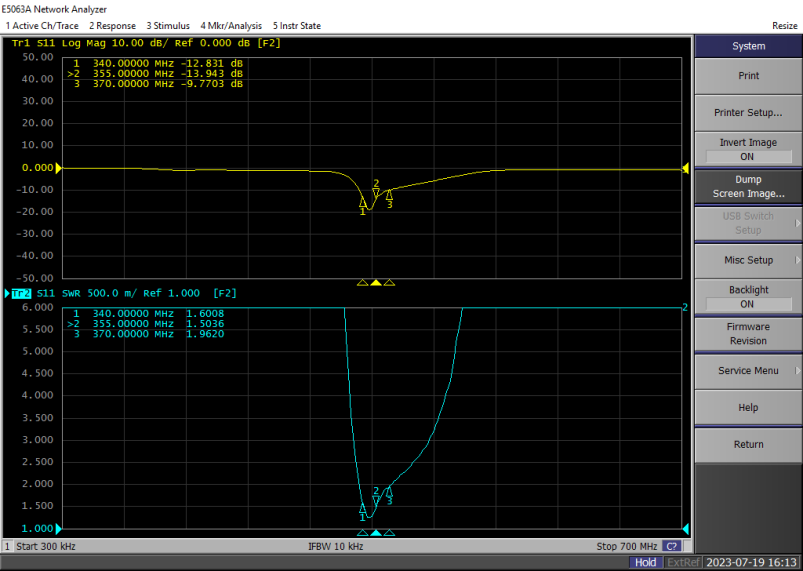

2.1 VSWR
TNC connector 340-370M gooseneck antenna, flexible antenna, omnidirectional waterproof antenna, fiberglass antenna. Dimensions: 16 * 580mm.

2.2 Total Efficiency & Gain:

Frequency (MHz)

340

345

350

355

360

365

370

Gain (dBi)

1.2

1.3

1.5

1.5

1.7

1.8

1.7

Efficiency (%)

83.5

87.6

82.9

75.1

74.2

75.0

74.1

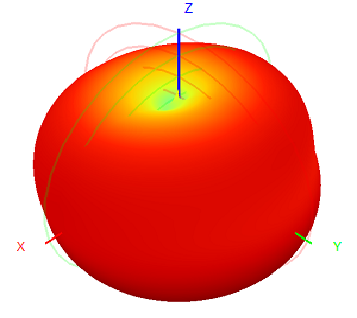

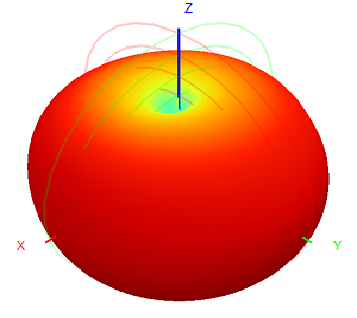

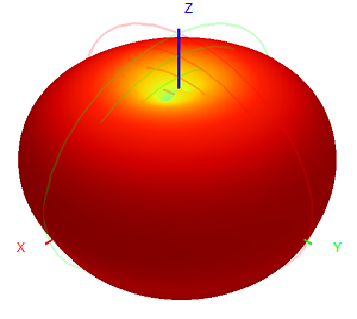

2.3 Radiation Pattern



 3D 2D-Horizontal 2D-Vertical
340MHz TNC connector 340-370M gooseneck antenna, flexible antenna, omnidirectional waterproof antenna, fiberglass antenna. Dimensions: 16 * 580mm. TNC connector 340-370M gooseneck antenna, flexible antenna, omnidirectional waterproof antenna, fiberglass antenna. Dimensions: 16 * 580mm. TNC connector 340-370M gooseneck antenna, flexible antenna, omnidirectional waterproof antenna, fiberglass antenna. Dimensions: 16 * 580mm.
355MHz TNC connector 340-370M gooseneck antenna, flexible antenna, omnidirectional waterproof antenna, fiberglass antenna. Dimensions: 16 * 580mm. TNC connector 340-370M gooseneck antenna, flexible antenna, omnidirectional waterproof antenna, fiberglass antenna. Dimensions: 16 * 580mm. TNC connector 340-370M gooseneck antenna, flexible antenna, omnidirectional waterproof antenna, fiberglass antenna. Dimensions: 16 * 580mm.
370MHz TNC connector 340-370M gooseneck antenna, flexible antenna, omnidirectional waterproof antenna, fiberglass antenna. Dimensions: 16 * 580mm. TNC connector 340-370M gooseneck antenna, flexible antenna, omnidirectional waterproof antenna, fiberglass antenna. Dimensions: 16 * 580mm. TNC connector 340-370M gooseneck antenna, flexible antenna, omnidirectional waterproof antenna, fiberglass antenna. Dimensions: 16 * 580mm.
