TNC male 5G N28 703-803M 2dBi Unmanned Aerial Vehicle Interference gooseneck Antenna 16x462mm
TNC male 5G N28 703-803M 2dBi Unmanned Aerial Vehicle Interference gooseneck Antenna 16x462mm
TNC male 5G N28 703-803M 2dBi Unmanned Aerial Vehicle Interference gooseneck Antenna 16x462mm
TNC male 5G N28 703-803M 2dBi Unmanned Aerial Vehicle Interference gooseneck Antenna 16x462mm
TNC male 5G N28 703-803M 2dBi Unmanned Aerial Vehicle Interference gooseneck Antenna 16x462mm
TNC male 5G N28 703-803M 2dBi Unmanned Aerial Vehicle Interference gooseneck Antenna 16x462mm
TNC male 5G N28 703-803M 2dBi Unmanned Aerial Vehicle Interference gooseneck Antenna 16x462mm
TNC male 5G N28 703-803M 2dBi Unmanned Aerial Vehicle Interference gooseneck Antenna 16x462mm
TNC male 5G N28 703-803M 2dBi Unmanned Aerial Vehicle Interference gooseneck Antenna 16x462mm
TNC male 5G N28 703-803M 2dBi Unmanned Aerial Vehicle Interference gooseneck Antenna 16x462mm
Specifications
Model Number :
LZANT-11761-A
Brand Name :
Leenz
MOQ :
10
Frequency :
703-803MHz
Supply Ability :
500 per day
Impedance :
50
Payment Terms :
T/T
Certification :
RoHs
Place of Origin :
China
VSWR :
<2.0
Delivery Time :
15 days
Peak Gain :
2dBi
Description

1. Specification

A. Electrical Characteristics
Frequency 703-803MHz
VSWR < 2.0
Efficiency ≈67%
Peak Gain 2dBi
Impedance 50 Ohm
Polarization Linear
Horizontal Beamwidth 360°
Vertical Beamwidth 45-80°
T90(H) roundness ±1
Max Power 50W
B. Material & Mechanical

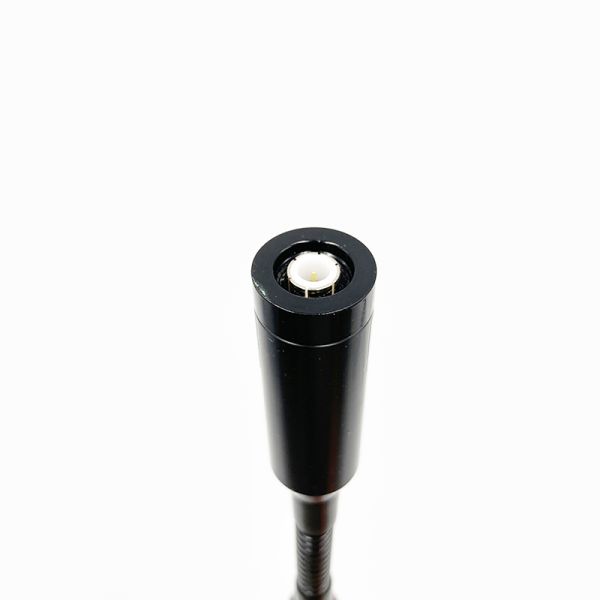

Connector Type TNC-J
Dimension Φ16*462±3mm
Weight 0.14Kg
Radome material ABS+PC (Black)

C. Environmental
Operation Temperature - 45˚C ~ +85 ˚C
Storage Temperature - 45˚C ~ +85 ˚C
Rated Wind Velocity 36.9m/s
Lighting Protection Dc grounding

2. Antenna - S Parameter Test Data

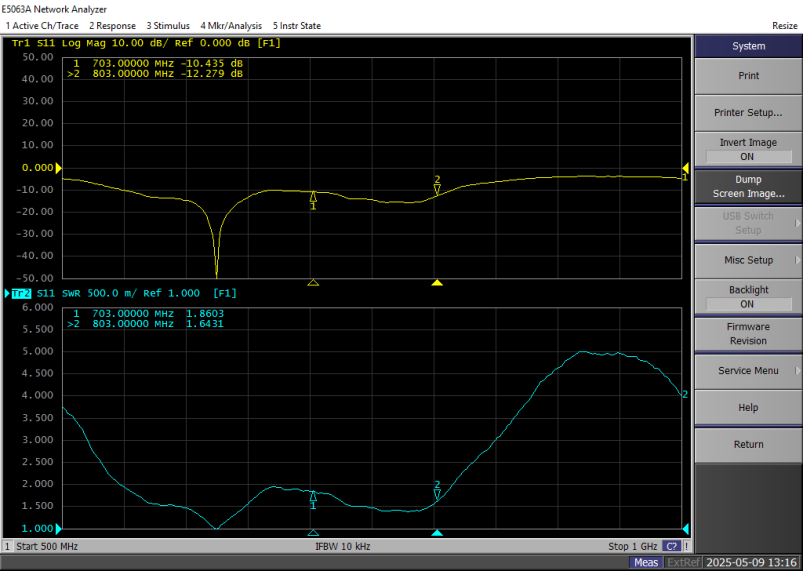

2.1 VSWR
TNC male 5G N28 703-803M 2dBi Unmanned Aerial Vehicle Interference gooseneck Antenna 16x462mm

2.2 Total Efficiency & Gain:

Frequency(MHz)

703

710

720

730

740

750

760

770

780

790

800

803

Gain (dBi)

1.3

1.6

1.5

1.5

1.7

1.8

1.4

1.7

1.3

1.0

0.5

0.4

Efficiency (%)

62.9

66.1

63.8

64.4

69.9

72.7

67.5

74.7

68.5

68.0

63.2

62.4

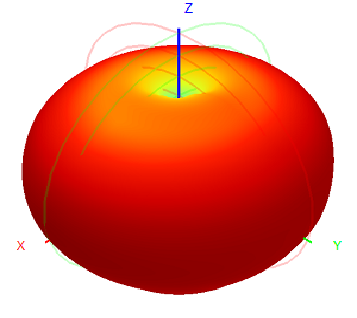

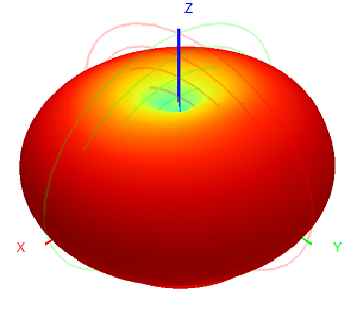

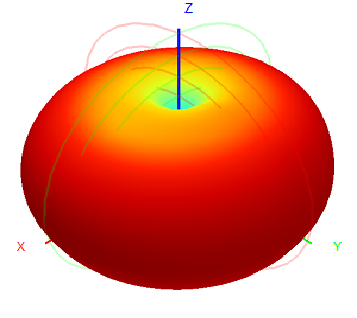

2.3 Radiation Pattern



 3D 2D-Horizontal 2D-Vertical
703MHz TNC male 5G N28 703-803M 2dBi Unmanned Aerial Vehicle Interference gooseneck Antenna 16x462mm TNC male 5G N28 703-803M 2dBi Unmanned Aerial Vehicle Interference gooseneck Antenna 16x462mm TNC male 5G N28 703-803M 2dBi Unmanned Aerial Vehicle Interference gooseneck Antenna 16x462mm
760MHz TNC male 5G N28 703-803M 2dBi Unmanned Aerial Vehicle Interference gooseneck Antenna 16x462mm TNC male 5G N28 703-803M 2dBi Unmanned Aerial Vehicle Interference gooseneck Antenna 16x462mm TNC male 5G N28 703-803M 2dBi Unmanned Aerial Vehicle Interference gooseneck Antenna 16x462mm
803MHz TNC male 5G N28 703-803M 2dBi Unmanned Aerial Vehicle Interference gooseneck Antenna 16x462mm TNC male 5G N28 703-803M 2dBi Unmanned Aerial Vehicle Interference gooseneck Antenna 16x462mm TNC male 5G N28 703-803M 2dBi Unmanned Aerial Vehicle Interference gooseneck Antenna 16x462mm
