30-300M fiberglass antenna FPV antenna 32x1270mm
30-300M fiberglass antenna FPV antenna 32x1270mm
30-300M fiberglass antenna FPV antenna 32x1270mm
30-300M fiberglass antenna FPV antenna 32x1270mm
30-300M fiberglass antenna FPV antenna 32x1270mm
30-300M fiberglass antenna FPV antenna 32x1270mm
30-300M fiberglass antenna FPV antenna 32x1270mm
30-300M fiberglass antenna FPV antenna 32x1270mm
30-300M fiberglass antenna FPV antenna 32x1270mm
30-300M fiberglass antenna FPV antenna 32x1270mm
Specifications
MOQ :
10
Frequency :
30-300MHz
Certification :
RoHs
Model Number :
LZANT-12256-A
Supply Ability :
500 per day
Impedance :
50
Payment Terms :
T/T
Delivery Time :
15 days
Peak Gain :
0dBi
Brand Name :
Leenz
Place of Origin :
China
VSWR :
<2.0
Description


1. Specification

A. Electrical Characteristics
Frequency 30-300MHz
Impedance 50 Ohm
S.W.R. <2.5
Antenna Gain 0dBi
Efficiency ≈74%
Polarization Linear
Horizontal Beamwidth 360°
Vertical Beamwidth 26-110°
Max Power 50W
B. Material & Mechanical Characteristics
Connector Type N -J
Dimension Φ32*1270mm
Weight 0.64Kg
Radome material Fiberglass Black
C. Environmental
Operation Temperature - 40 ˚C ~ + 80 ˚C
Storage Temperature - 40 ˚C ~ + 80 ˚C
Rated Wind Velocity 36.9m/s
Lighting Protection DC Ground


2. Antenna - S Parameter Test Data

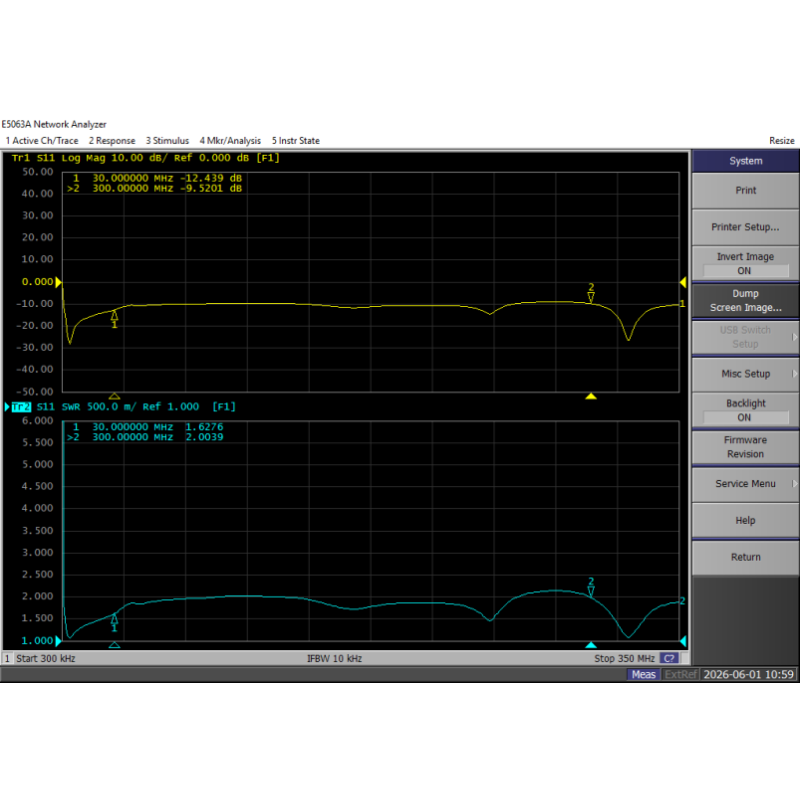

2.1 VSWR

30-300M fiberglass antenna FPV antenna 32x1270mm


2.2 Total Efficiency & Gain:

Frequency(MHz)

Gain(dBi)

Efficiency(%)

80

-1.6

42.8

90

-2.2

40.5

100

-2.1

39.0

120

-2.2

39.7

140

-2.1

39.8

160

-2.0

40.0

180

-0.2

37.5

200

-0.3

30.3

220

-0.4

35.0

240

-0.2

30.6

260

-1.2

37.8

280

-0.5

38.7

300

-0.9

39.7

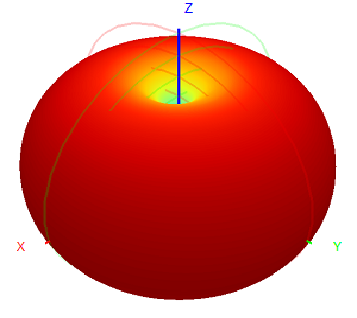

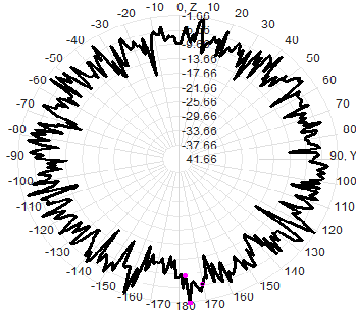

2.3 Radiation Pattern

 3D 2D-Horizontal 2D-Vertical
80MHz 30-300M fiberglass antenna FPV antenna 32x1270mm 30-300M fiberglass antenna FPV antenna 32x1270mm 30-300M fiberglass antenna FPV antenna 32x1270mm
160MHz 30-300M fiberglass antenna FPV antenna 32x1270mm 30-300M fiberglass antenna FPV antenna 32x1270mm 30-300M fiberglass antenna FPV antenna 32x1270mm
300MHz 30-300M fiberglass antenna FPV antenna 32x1270mm 30-300M fiberglass antenna FPV antenna 32x1270mm 30-300M fiberglass antenna FPV antenna 32x1270mm
