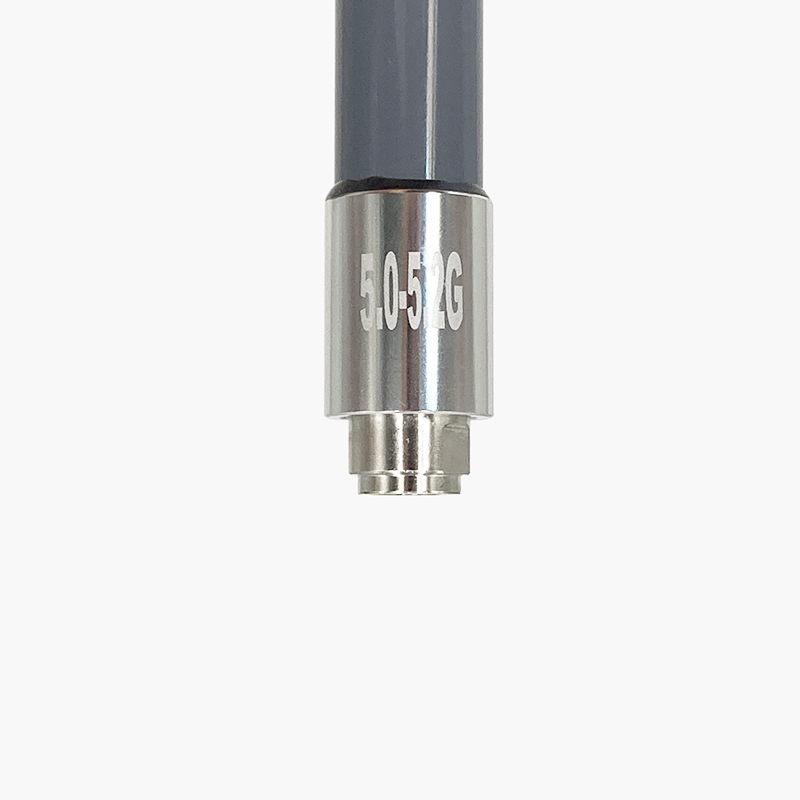

5-5.2G 5000-5200M omnidirectional Wi-Fi video transmission unmanned aerial vehicle waterproof fiberglass antenna 16x100mm
5-5.2G 5000-5200M omnidirectional Wi-Fi video transmission unmanned aerial vehicle waterproof fiberglass antenna 16x100mm
5-5.2G 5000-5200M omnidirectional Wi-Fi video transmission unmanned aerial vehicle waterproof fiberglass antenna 16x100mm
5-5.2G 5000-5200M omnidirectional Wi-Fi video transmission unmanned aerial vehicle waterproof fiberglass antenna 16x100mm
5-5.2G 5000-5200M omnidirectional Wi-Fi video transmission unmanned aerial vehicle waterproof fiberglass antenna 16x100mm
5-5.2G 5000-5200M omnidirectional Wi-Fi video transmission unmanned aerial vehicle waterproof fiberglass antenna 16x100mm
5-5.2G 5000-5200M omnidirectional Wi-Fi video transmission unmanned aerial vehicle waterproof fiberglass antenna 16x100mm
5-5.2G 5000-5200M omnidirectional Wi-Fi video transmission unmanned aerial vehicle waterproof fiberglass antenna 16x100mm
Specifications
Model Number :
LZANT-12257-A
Supply Ability :
500 per day
Impedance :
50
MOQ :
10
Frequency :
5000-5200MHz
Certification :
RoHs
Payment Terms :
T/T
Delivery Time :
15 days
Peak Gain :
2dBi
Brand Name :
Leenz
Place of Origin :
China
VSWR :
<2.0
Description


1. Specification

A. Electrical Characteristics
Frequency 5000-5200MHz
Impedance 50 Ohm
S.W.R. <2.0
Antenna Gain 2dBi
Efficiency ≈74%
Polarization Linear
Horizontal Beamwidth 360°
Vertical Beamwidth 45-59°
Max Power 50W
B. Material & Mechanical Characteristics
Connector Type SMA -J
Dimension Φ16*100mm
Weight 0.04Kg
Radome material Fiberglass Grey
C. Environmental
Operation Temperature - 40 ˚C ~ + 80 ˚C
Storage Temperature - 40 ˚C ~ + 80 ˚C
Rated Wind Velocity 36.9m/s
Lighting Protection DC Ground


2. Antenna - S Parameter Test Data

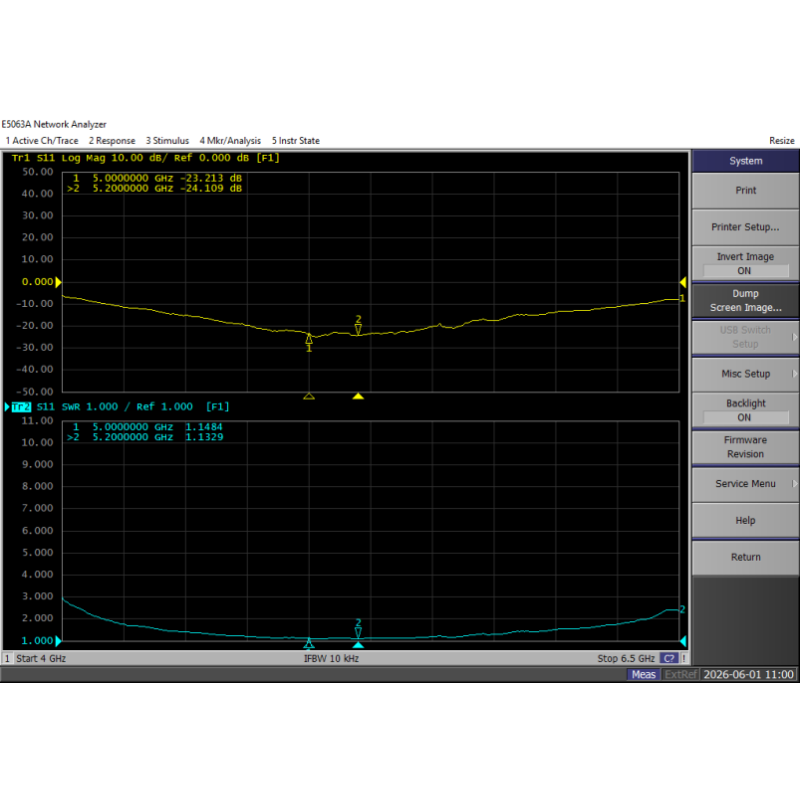

2.1 VSWR

5-5.2G 5000-5200M omnidirectional Wi-Fi video transmission unmanned aerial vehicle waterproof fiberglass antenna 16x100mm


2.2 Total Efficiency & Gain:

Frequency(MHz)

Gain(dBi)

Efficiency(%)

5000

2.1

76.0

5025

1.7

69.7

5050

1.6

67.5

5075

2.1

75.8

5100

2.0

76.2

5125

1.5

70.0

5150

2.1

77.3

5175

2.2

79.5

5200

1.9

73.6

2.3 Radiation Pattern

 3D 2D-Horizontal 2D-Vertical

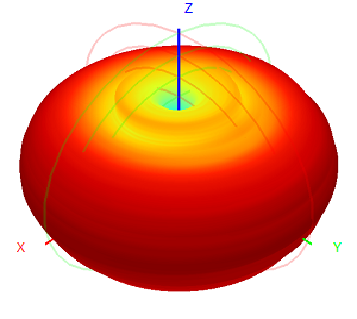

5000MHz 5-5.2G 5000-5200M omnidirectional Wi-Fi video transmission unmanned aerial vehicle waterproof fiberglass antenna 16x100mm 5-5.2G 5000-5200M omnidirectional Wi-Fi video transmission unmanned aerial vehicle waterproof fiberglass antenna 16x100mm 5-5.2G 5000-5200M omnidirectional Wi-Fi video transmission unmanned aerial vehicle waterproof fiberglass antenna 16x100mm

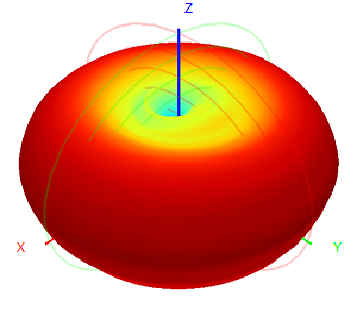

5100MHz 5-5.2G 5000-5200M omnidirectional Wi-Fi video transmission unmanned aerial vehicle waterproof fiberglass antenna 16x100mm 5-5.2G 5000-5200M omnidirectional Wi-Fi video transmission unmanned aerial vehicle waterproof fiberglass antenna 16x100mm 5-5.2G 5000-5200M omnidirectional Wi-Fi video transmission unmanned aerial vehicle waterproof fiberglass antenna 16x100mm

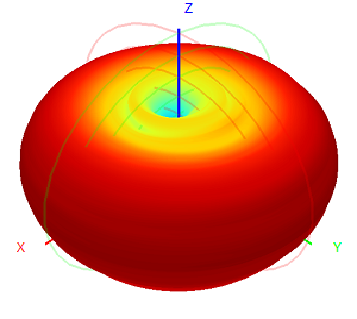

5200MHz 5-5.2G 5000-5200M omnidirectional Wi-Fi video transmission unmanned aerial vehicle waterproof fiberglass antenna 16x100mm 5-5.2G 5000-5200M omnidirectional Wi-Fi video transmission unmanned aerial vehicle waterproof fiberglass antenna 16x100mm 5-5.2G 5000-5200M omnidirectional Wi-Fi video transmission unmanned aerial vehicle waterproof fiberglass antenna 16x100mm
