Specifications
MOQ :
10
Frequency :
400-2700MHz
Certification :
RoHs
Model Number :
LZANT-12336-A
Supply Ability :
500 per day
Impedance :
50
Payment Terms :
T/T
Delivery Time :
15 days
Peak Gain :
5dBi
Brand Name :
Leenz
Place of Origin :
China
VSWR :
<4.0
Description


1. Specification

A. Electrical Characteristics
Frequency 400-2700MHz
Impedance 50 Ohm
S.W.R. <4.0
Antenna Gain 5dBi
Efficiency ≈65%
Polarization Linear
Horizontal Beamwidth 360°
Vertical Beamwidth 19-92°
Max Power 200W
B. Material & Mechanical Characteristics
Connector Type N -J
Dimension Φ32*600mm
Weight 0.5Kg
Radome material Fiberglass army green
C. Environmental
Operation Temperature - 40 ˚C ~ + 80 ˚C
Storage Temperature - 40 ˚C ~ + 80 ˚C
Rated Wind Velocity 36.9m/s
Lighting Protection DC Ground


2. Antenna - S Parameter Test Data

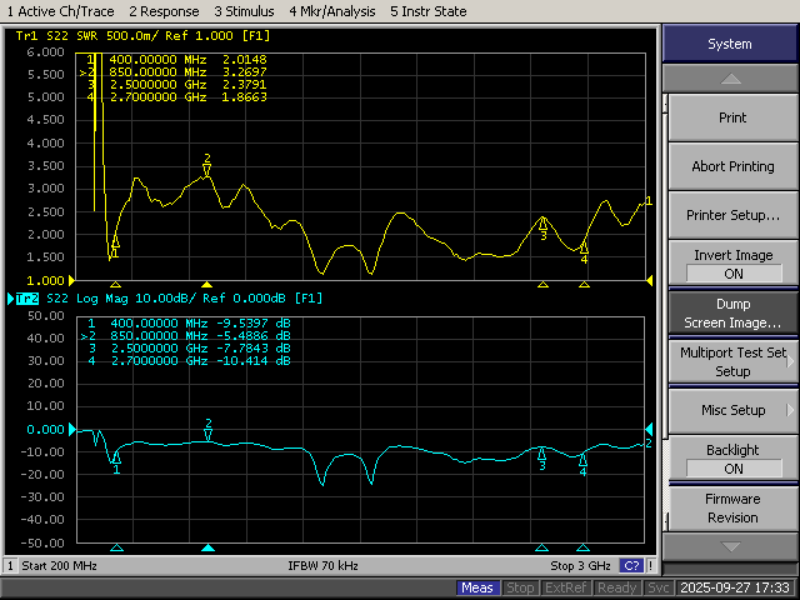

2.1 VSWR

400-2700M Ultra-wideband fiberglass Ultra-low frequency band antenna FPV antenna army green 32x600mm


2.2 Total Efficiency & Gain:

Frequency(MHz)

Gain(dBi)

Efficiency(%)

400

3.3

84.2

450

2.4

75.5

500

1.7

62.0

550

0.7

41.0

600

3.5

56.7

650

4.2

56.8

700

3.9

61.0

750

1.9

54.8

800

1.4

47.6

850

2.9

49.4

900

2.8

65.8

950

1.1

62.5

1000

0.2

59.4

1100

0.7

62.8

1200

2.1

65.9

1300

1.6

65.5

1400

3.3

75.1

1500

4.3

72.0

1600

3.7

73.9

1700

3.5

77.9

1800

3.5

67.6

1900

4.4

68.5

2000

4.4

70.8

2100

4.9

70.1

2200

3.5

74.7

2300

3.5

70.3

2400

3.1

70.8

2500

4.3

66.6

2600

4.2

64.4

2700

4.2

65.0

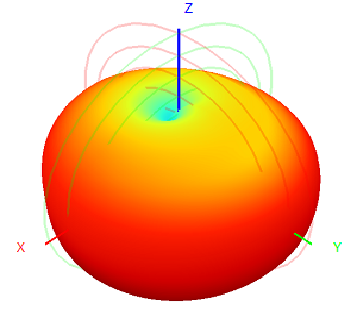

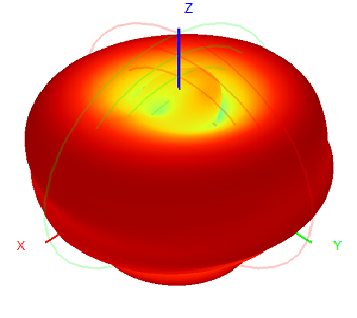

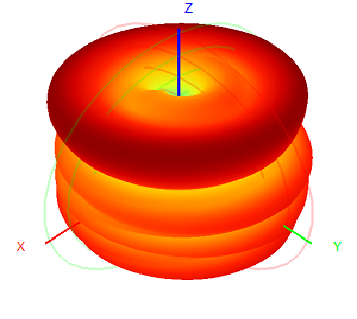

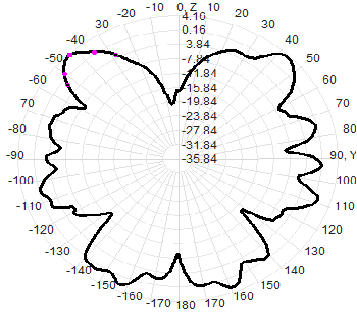

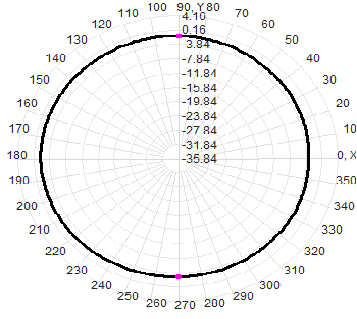

2.3 Radiation Pattern

 3D 2D-Horizontal 2D-Vertical
400MHz 400-2700M Ultra-wideband fiberglass Ultra-low frequency band antenna FPV antenna army green 32x600mm 400-2700M Ultra-wideband fiberglass Ultra-low frequency band antenna FPV antenna army green 32x600mm 400-2700M Ultra-wideband fiberglass Ultra-low frequency band antenna FPV antenna army green 32x600mm
1300MHz 400-2700M Ultra-wideband fiberglass Ultra-low frequency band antenna FPV antenna army green 32x600mm 400-2700M Ultra-wideband fiberglass Ultra-low frequency band antenna FPV antenna army green 32x600mm 400-2700M Ultra-wideband fiberglass Ultra-low frequency band antenna FPV antenna army green 32x600mm
2700MHz 400-2700M Ultra-wideband fiberglass Ultra-low frequency band antenna FPV antenna army green 32x600mm 400-2700M Ultra-wideband fiberglass Ultra-low frequency band antenna FPV antenna army green 32x600mm 400-2700M Ultra-wideband fiberglass Ultra-low frequency band antenna FPV antenna army green 32x600mm
