Specifications
Model Number :
LZANT-12082-A
VSWR :
<2.0
Supply Ability :
500 per day
Delivery Time :
15 days
MOQ :
10
Payment Terms :
T/T
Brand Name :
Leenz
Frequency :
1250-2650MHz
Certification :
RoHs
Peak Gain :
4dBi
Place of Origin :
China
Impedance :
50
Description

1. Specification

A. Electrical Characteristics
Frequency 1250-2650MHz
VSWR < 2.0
Efficiency ≈67%
Peak Gain 4dBi
Impedance 50 Ohm
Polarization Linear
Horizontal Beamwidth 360°
Vertical Beamwidth 11-45°
T90(H) roundness ±4
Max Power 50W
B. Material & Mechanical
Connector Type SMA-J
Dimension Φ32*390±5mm
Weight 0.22Kg
Radome material FRG (Black)

C. Environmental
Operation Temperature - 45˚C ~ +85 ˚C
Storage Temperature - 45˚C ~ +85 ˚C
Rated Wind Velocity 36.9m/s
Lighting Protection Dc grounding

2. Antenna - S Parameter Test Data

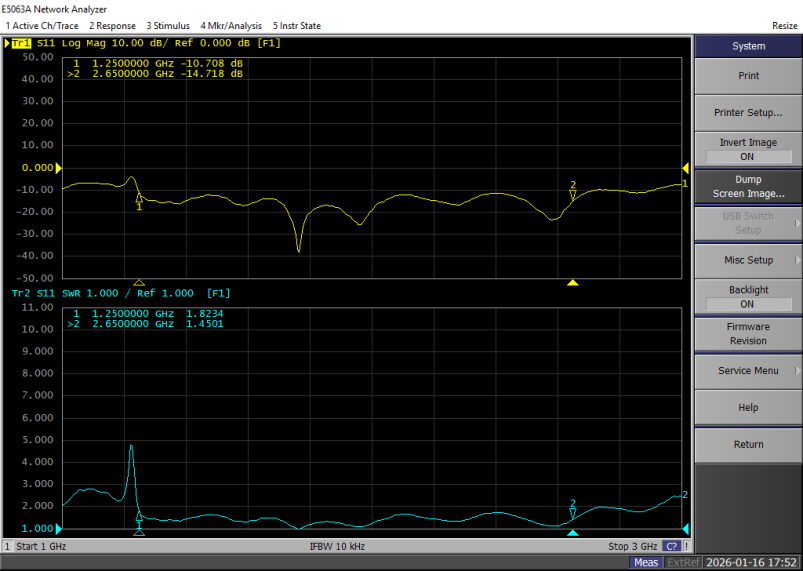

2.1 VSWR
SMA-J 1250-2650M 4dbi gooseneck antenna ,flexible antenna, omnidirectional waterproof antenna, fiberglass antenna. Unmanned antenna 32x3900mm.

2.2 Total Efficiency & Gain:

Frequency(MHz)

Gain(dBi)

Efficiency(%)

1250

3.0

65.2

1350

3.3

72.5

1450

3.3

70.1

1550

4.3

76.0

1650

2.6

70.2

1750

3.7

75.7

1850

3.7

63.7

1950

3.2

73.1

2050

3.2

63.8

2150

4.6

62.4

2250

4.7

60.9

2350

4.4

64.4

2450

3.9

58.9

2550

2.6

60.8

2650

2.5

60.8

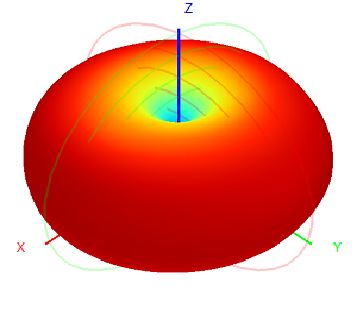

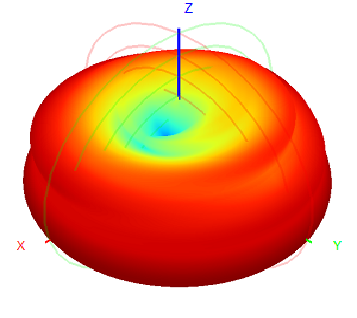

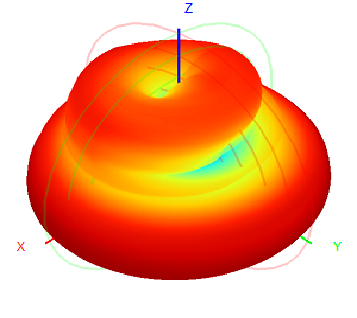

2.3 Radiation Pattern



 3D 2D-Horizontal 2D-Vertical
1250MHz SMA-J 1250-2650M 4dbi gooseneck antenna ,flexible antenna, omnidirectional waterproof antenna, fiberglass antenna. Unmanned antenna 32x3900mm. SMA-J 1250-2650M 4dbi gooseneck antenna ,flexible antenna, omnidirectional waterproof antenna, fiberglass antenna. Unmanned antenna 32x3900mm. SMA-J 1250-2650M 4dbi gooseneck antenna ,flexible antenna, omnidirectional waterproof antenna, fiberglass antenna. Unmanned antenna 32x3900mm.
1950MHz SMA-J 1250-2650M 4dbi gooseneck antenna ,flexible antenna, omnidirectional waterproof antenna, fiberglass antenna. Unmanned antenna 32x3900mm. SMA-J 1250-2650M 4dbi gooseneck antenna ,flexible antenna, omnidirectional waterproof antenna, fiberglass antenna. Unmanned antenna 32x3900mm. SMA-J 1250-2650M 4dbi gooseneck antenna ,flexible antenna, omnidirectional waterproof antenna, fiberglass antenna. Unmanned antenna 32x3900mm.
2650MHz SMA-J 1250-2650M 4dbi gooseneck antenna ,flexible antenna, omnidirectional waterproof antenna, fiberglass antenna. Unmanned antenna 32x3900mm. SMA-J 1250-2650M 4dbi gooseneck antenna ,flexible antenna, omnidirectional waterproof antenna, fiberglass antenna. Unmanned antenna 32x3900mm. SMA-J 1250-2650M 4dbi gooseneck antenna ,flexible antenna, omnidirectional waterproof antenna, fiberglass antenna. Unmanned antenna 32x3900mm.
