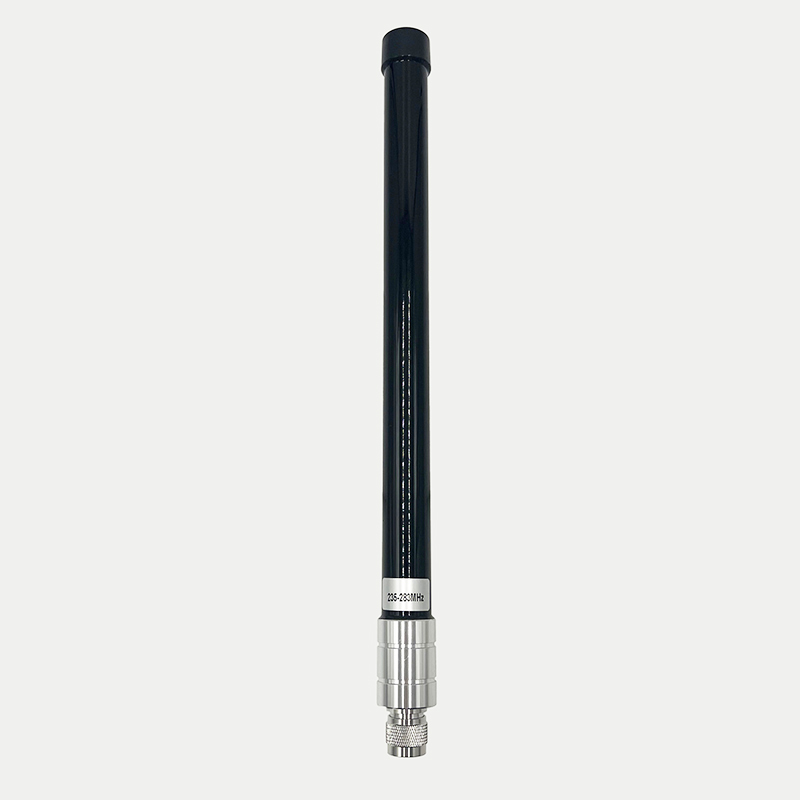

235-283M omnidirectional fiberglass reinforced plastic waterproof antenna, 25x380mm
235-283M omnidirectional fiberglass reinforced plastic waterproof antenna, 25x380mm
235-283M omnidirectional fiberglass reinforced plastic waterproof antenna, 25x380mm
235-283M omnidirectional fiberglass reinforced plastic waterproof antenna, 25x380mm
235-283M omnidirectional fiberglass reinforced plastic waterproof antenna, 25x380mm
235-283M omnidirectional fiberglass reinforced plastic waterproof antenna, 25x380mm
235-283M omnidirectional fiberglass reinforced plastic waterproof antenna, 25x380mm
235-283M omnidirectional fiberglass reinforced plastic waterproof antenna, 25x380mm
Specifications
Model Number :
LZANT-12314-A
Supply Ability :
500 per day
Impedance :
50
Delivery Time :
15 days
Peak Gain :
0dBi
MOQ :
10
Frequency :
235-283MHz
Payment Terms :
T/T
VSWR :
<4.0
Certification :
RoHs
Place of Origin :
China
Brand Name :
Leenz
Description


1. Specification

A. Electrical Characteristics
Frequency 235-283MHz
Impedance 50 Ohm
S.W.R. <4
Antenna Gain 0dBi
Efficiency ≈47%
Polarization Linear
Horizontal Beamwidth 360°
Vertical Beamwidth 58-66°
Max Power 50W
B. Material & Mechanical Characteristics

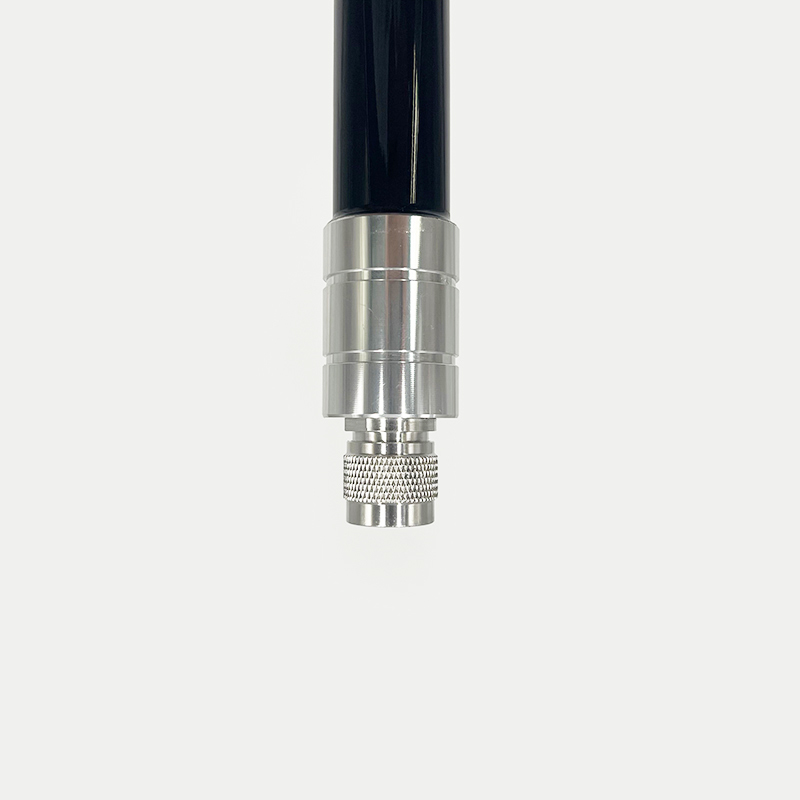

Connector Type N -J
Dimension Φ25*380mm
Weight 0.21Kg

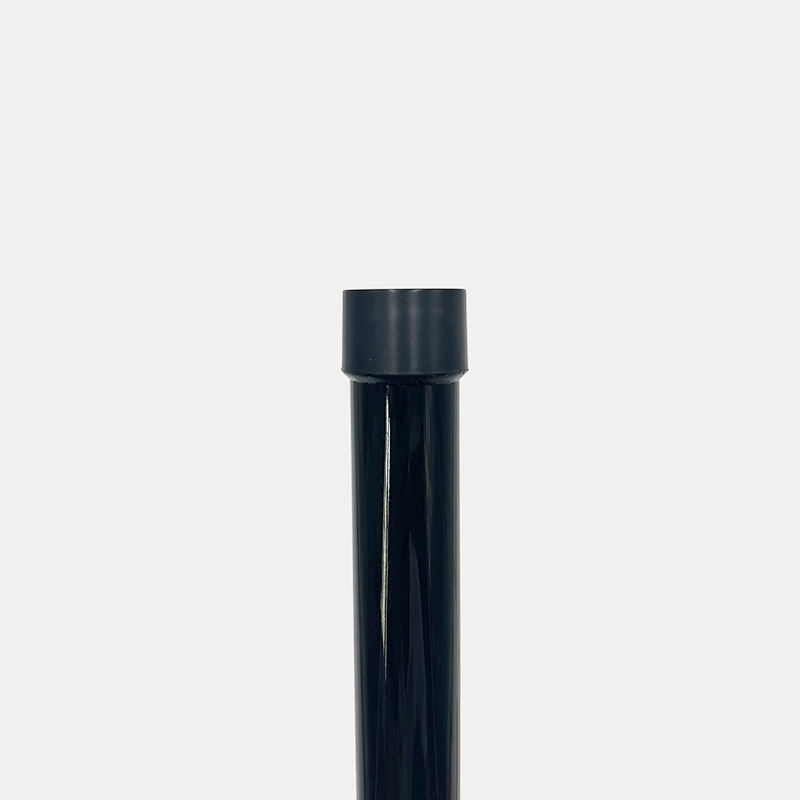

Radome material Fiberglass Black
C. Environmental
Operation Temperature - 40 ˚C ~ + 80 ˚C
Storage Temperature - 40 ˚C ~ + 80 ˚C
Rated Wind Velocity 36.9m/s
Lighting Protection DC Ground


2. Antenna - S Parameter Test Data

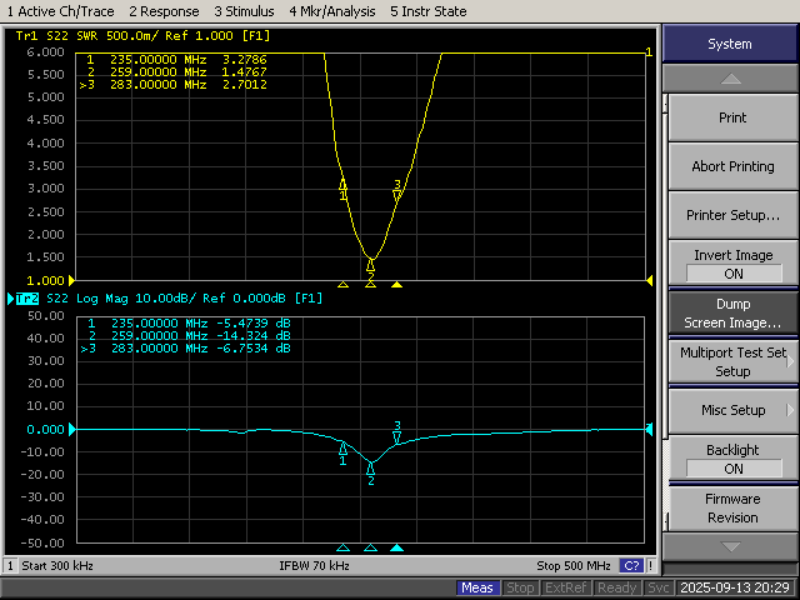

2.1 VSWR

235-283M omnidirectional fiberglass reinforced plastic waterproof antenna, 25x380mm


2.2 Total Efficiency & Gain:

Frequency(MHz)

Gain(dBi)

Efficiency(%)

235

-0.6

46.3

240

-0.3

48.2

245

0.0

51.2

250

0.0

51.1

255

-0.2

49.0

260

-0.5

44.7

265

-0.4

44.7

270

-0.5

43.5

275

0.0

47.7

280

-0.3

43.5

283

-0.1

46.0

2.3 Radiation Pattern

 3D 2D-Horizontal 2D-Vertical

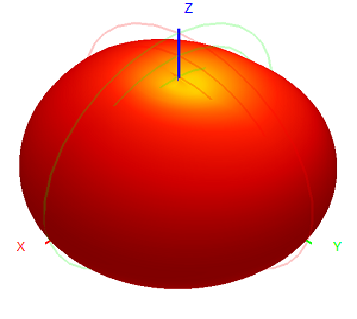

235MHz 235-283M omnidirectional fiberglass reinforced plastic waterproof antenna, 25x380mm 235-283M omnidirectional fiberglass reinforced plastic waterproof antenna, 25x380mm 235-283M omnidirectional fiberglass reinforced plastic waterproof antenna, 25x380mm

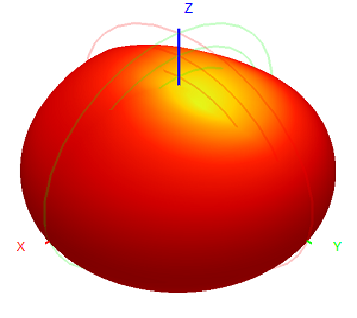

260MHz 235-283M omnidirectional fiberglass reinforced plastic waterproof antenna, 25x380mm 235-283M omnidirectional fiberglass reinforced plastic waterproof antenna, 25x380mm 235-283M omnidirectional fiberglass reinforced plastic waterproof antenna, 25x380mm

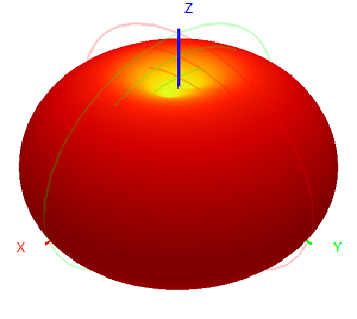

283MHz 235-283M omnidirectional fiberglass reinforced plastic waterproof antenna, 25x380mm 235-283M omnidirectional fiberglass reinforced plastic waterproof antenna, 25x380mm 235-283M omnidirectional fiberglass reinforced plastic waterproof antenna, 25x380mm
