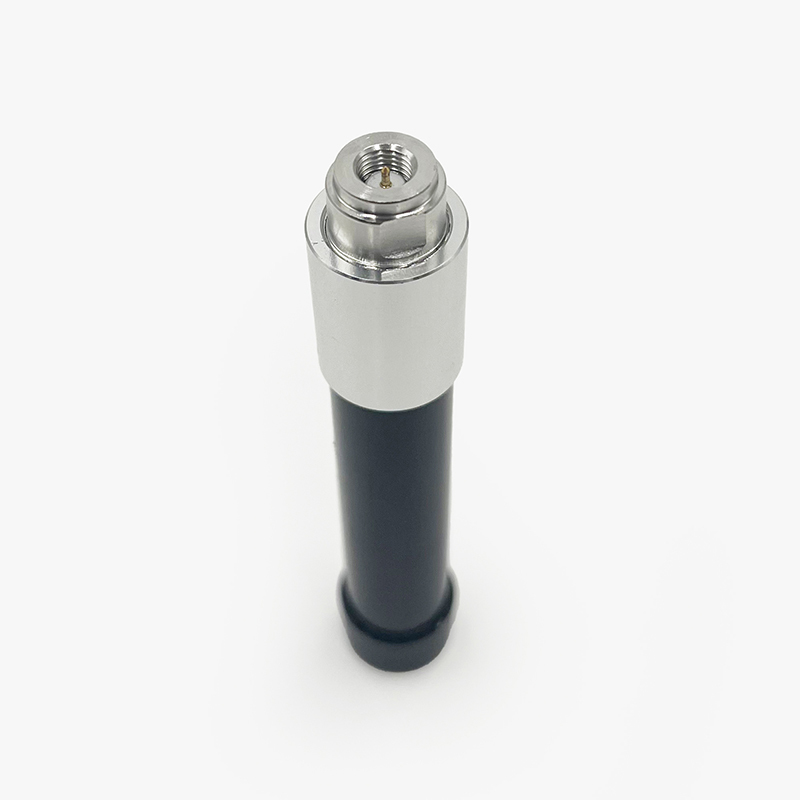

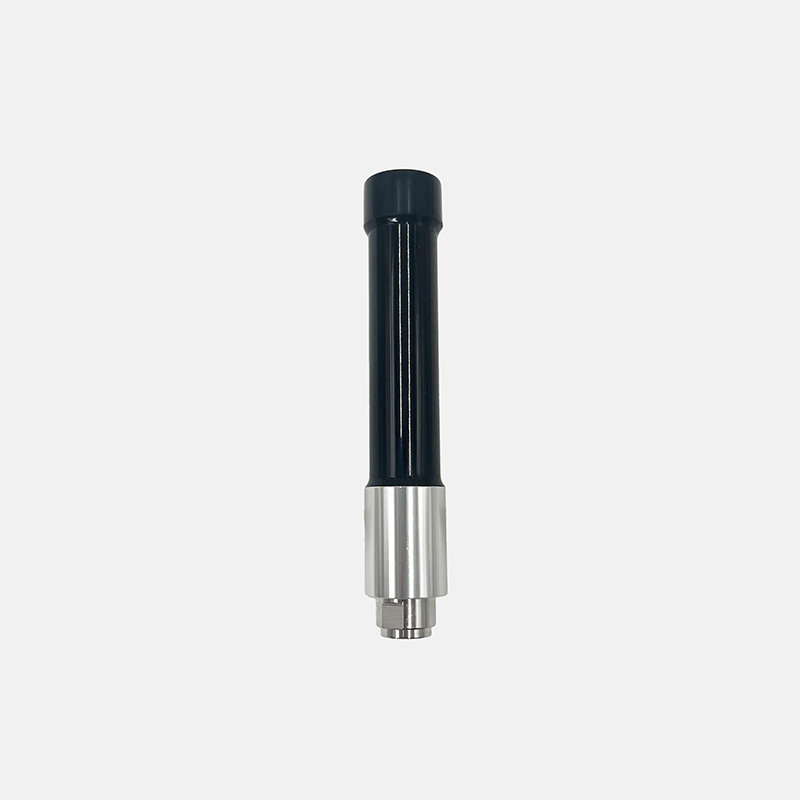

SMA 6-10G 6000-10000M Omnidirectional Fiberglass Antenna 16x100mm
SMA 6-10G 6000-10000M Omnidirectional Fiberglass Antenna 16x100mm
SMA 6-10G 6000-10000M Omnidirectional Fiberglass Antenna 16x100mm
SMA 6-10G 6000-10000M Omnidirectional Fiberglass Antenna 16x100mm
SMA 6-10G 6000-10000M Omnidirectional Fiberglass Antenna 16x100mm
SMA 6-10G 6000-10000M Omnidirectional Fiberglass Antenna 16x100mm
Specifications
Delivery Time :
15 days
Peak Gain :
2dBi
Model Number :
LZANT-12349-A
MOQ :
10
Frequency :
6000-10000MHz
Supply Ability :
500 per day
Impedance :
50
Payment Terms :
T/T
Certification :
RoHs
Brand Name :
Leenz
Place of Origin :
China
VSWR :
<2.0
Description


1. Specification

A. Electrical Characteristics
Frequency 6000-10000MHz
Impedance 50 Ohm
S.W.R. <2.2
Antenna Gain 2dBi
Efficiency ≈60%
Polarization Linear
Horizontal Beamwidth 360°
Vertical Beamwidth 53-110°
Max Power 50W
B. Material & Mechanical Characteristics
Connector Type SMA -J
Dimension Φ16*100mm
Weight 0.04Kg
Radome material Fiberglass Black
C. Environmental
Operation Temperature - 40 ˚C ~ + 80 ˚C
Storage Temperature - 40 ˚C ~ + 80 ˚C
Rated Wind Velocity 36.9m/s
Lighting Protection DC Ground


2. Antenna - S Parameter Test Data

2.1 VSWR

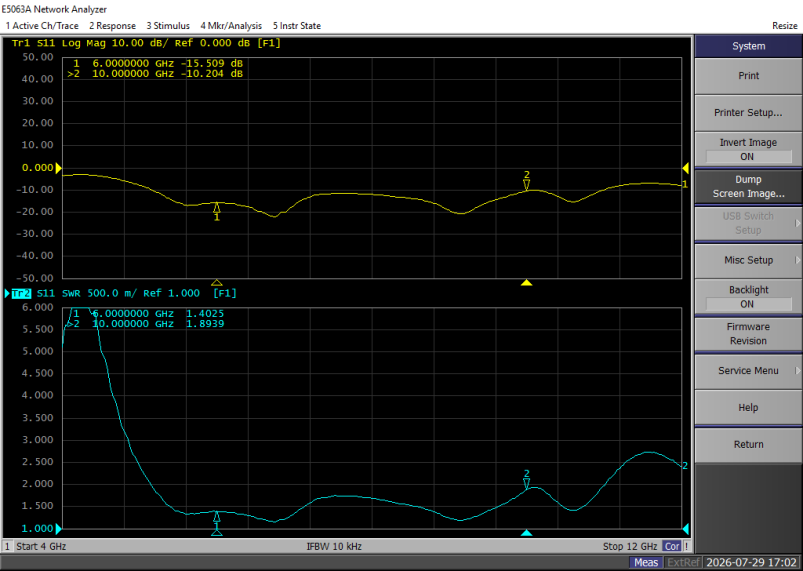

SMA 6-10G 6000-10000M Omnidirectional Fiberglass Antenna 16x100mm


2.2 Total Efficiency & Gain:

Frequency(MHz)

Gain(dBi)

Efficiency(%)

Frequency(MHz)

Gain(dBi)

Efficiency(%)

6000

1.8

69.9

8100

0.0

48.0

6100

2.3

79.3

8200

0.0

50.9

6200

1.7

75.4

8300

0.5

59.0

6300

2.4

83.9

8400

0.6

63.2

6400

2.4

83.4

8500

0.6

60.0

6500

2.0

86.7

8600

1.2

62.6

6600

2.6

88.1

8700

0.8

60.8

6700

2.0

77.4

8800

0.8

62.8

6800

1.4

70.6

8900

0.5

65.3

6900

1.0

58.3

9000

0.6

58.3

7000

0.9

54.5

9100

0.3

58.5

7100

1.1

58.7

9200

0.3

58.2

7200

0.7

57.8

9300

0.3

58.5

7300

0.4

45.7

9400

0.7

62.2

7400

1.2

54.6

9500

0.7

56.9

7500

0.7

52.4

9600

1.1

55.7

7600

-0.1

48.0

9700

0.9

53.0

7700

0.0

48.4

9800

0.1

43.9

7800

-0.3

48.3

9900

0.8

48.8

7900

0.0

51.4

10000

1.2

52.8

8000

0.1

57.7



2.3 Radiation Pattern

 3D 2D-Horizontal 2D-Vertical

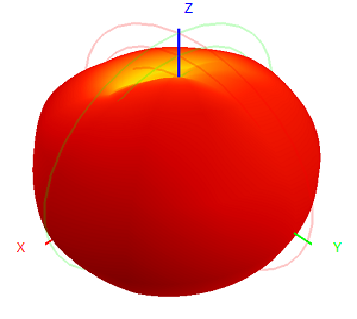

6000MHz SMA 6-10G 6000-10000M Omnidirectional Fiberglass Antenna 16x100mm SMA 6-10G 6000-10000M Omnidirectional Fiberglass Antenna 16x100mm SMA 6-10G 6000-10000M Omnidirectional Fiberglass Antenna 16x100mm

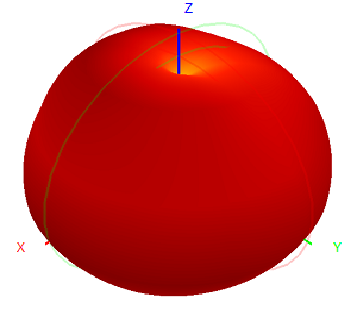

8000MHz SMA 6-10G 6000-10000M Omnidirectional Fiberglass Antenna 16x100mm SMA 6-10G 6000-10000M Omnidirectional Fiberglass Antenna 16x100mm SMA 6-10G 6000-10000M Omnidirectional Fiberglass Antenna 16x100mm

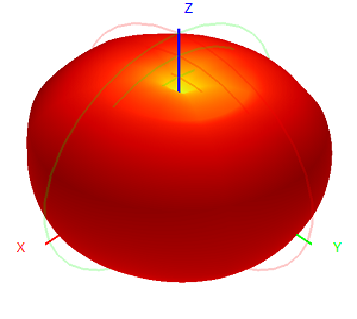

10000MHz SMA 6-10G 6000-10000M Omnidirectional Fiberglass Antenna 16x100mm SMA 6-10G 6000-10000M Omnidirectional Fiberglass Antenna 16x100mm SMA 6-10G 6000-10000M Omnidirectional Fiberglass Antenna 16x100mm
