Untra Thin Flexible Led Screen Module 8mm Pixel Pitch DC 5V 50000 Hours Lifetime
Untra Thin Flexible Led Screen Module 8mm Pixel Pitch DC 5V 50000 Hours Lifetime
Untra Thin Flexible Led Screen Module 8mm Pixel Pitch DC 5V 50000 Hours Lifetime
Untra Thin Flexible Led Screen Module 8mm Pixel Pitch DC 5V 50000 Hours Lifetime
Untra Thin Flexible Led Screen Module 8mm Pixel Pitch DC 5V 50000 Hours Lifetime
Untra Thin Flexible Led Screen Module 8mm Pixel Pitch DC 5V 50000 Hours Lifetime
Specifications
Brand Name :
Shenzhen LED World
Model Number :
LW-MF8
Certification :
CE, ROHS , CCC , FCC
Place of Origin :
China
MOQ :
1 square meter
Price :
Negotiation
Payment Terms :
D/A, D/P, T/T, Western Union, MoneyGram,
Supply Ability :
5,000 square meters per month
Delivery Time :
7- 18 working days
Packaging Details :
Carton/wooden case/Flight case etc.
Pixel pitch :
8mm
Pixel density :
15,625 dots/m2
Pixels/module :
W:32 dots x H:16 dots
Module size :
W:256mm x H: 128mm x T1.6mm (with magnets 16mm)
Weight of module :
0.1 kg
Best viewing distance :
≥8m
Life time :
50,000 hours
Brightness :
≥2500 cd/m2
Port of signal :
HUB75D (IDC16)
Description

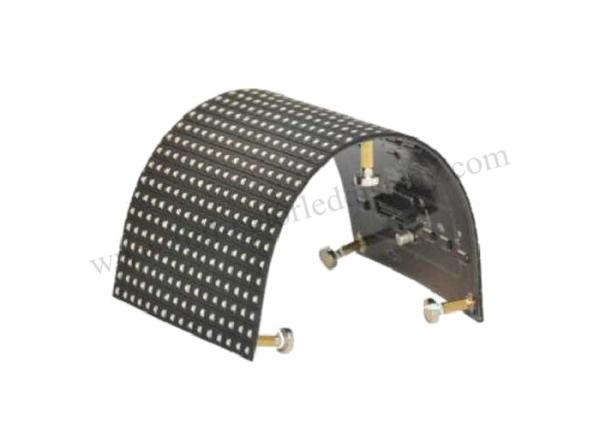

P8 flexible led screen Module untra thin 50000 Hours Lifetime DC 5V

Before we are familiar with the LED display screen, all is very hard, it seems that electronic display screen and soft word is impossible to mix, but the emergence of LED flexible screen, but broke such cognition.

P8 flexible led screen Module Feature:

  • High strength compression and distortion resistance;
  • For any convex, concave or twisted installations;
  • The circuit board is stable, the circuit board adopts the wave soldering technology, has the green oil insulation layer, prevents the wet oxidation of the line, improves the lifespan;
  • It is suitable for VCD or DVD of TV video programs and life situation and other indoor places;
  • The real soft LED display, which is with excellent smooth effect, without gap and shadow, with the smallest diameter only 77cm;
  • Simple installation and operation with fast-locks and easy plugs.

P8 flexible led screen Module Application:

1. Curved led display

Suitable for big radian or eversion radian curved led display

2. Cylindrical screen

In some hotels, meeting rooms, bars, and other lobbies, there are a lot of pillars are cylindrical, designers will design these pillars into the display screen, playing some special videos to improve the decoration level or create a special atmosphere, it is very complicated to make the conventional screen, but LED soft module to make it handy.

3. Wavy LED display

Creative shape led display

P8 flexible led screen Module Parameter:

P8 Flexible LED Module Parameter:
Parameter Color IF(mA) TEST Rd(nm) Typ Iv(mcd) Typ Vf(V) Typ View angle (deg.)
SMD2121 Red 15 620 175 2 110
Green 10 525 310 3 110
Blue 8 470 75 3 110
Pixel pitch 8mm
Pixel density 15,625 dots/m2
Pixels/module W:32 dots x H:16 dots
Module size W:256mm x H: 128mm x T1.6mm (with magnets 16mm)
Weight of module 0.1 kg
Bending radian ≤120° ( advice 90°)
Bending times <1000 times
Drive model 16 Constant Current Driving
Sacn 1/4 S
Votage DC 5v ± 10%
Maximum current 5A
Maximum power
consumption		 25W
Port of power VH4
Port of signal HUB75D (IDC16)
Brightness ≥2500 cd/m2
Color temperature 9000 ± 500K
Viewing angle H/V 120°
Best viewing distance ≥8m
Grey level ≥14 Bit
Refresh rate ≥1920 Hz
Life time 50,000 hours
Operating temperature -20° C ~ +50° C
Operating humidity -40° C ~ +80° C
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World.

Why Choose Us:

  • Innovative LED Screen Manufacturer for indoor-outdoor rental events and fixed projects;
  • Supporting many play files: videos, texts, pictures, graphics, PPT, Flashes and any sources from TV, VCD, DVD and so on;
  • Competitive Price
  • We are a factory manufacturer and we control our cost very well we can give real benefits to our customers;"
  • Close Relationships with Raw Material Providers
  • We have a very close and strategic relationship with the raw material providers which support the stable quality of our products;"
  • Your question will be answered within 18 hours ;

Application:
