High Definition Led Module Display Easy Operation 100000 Hours Life Span
High Definition Led Module Display Easy Operation 100000 Hours Life Span
High Definition Led Module Display Easy Operation 100000 Hours Life Span
High Definition Led Module Display Easy Operation 100000 Hours Life Span
High Definition Led Module Display Easy Operation 100000 Hours Life Span
High Definition Led Module Display Easy Operation 100000 Hours Life Span
High Definition Led Module Display Easy Operation 100000 Hours Life Span
High Definition Led Module Display Easy Operation 100000 Hours Life Span
Specifications
Brand Name :
Shenzhen LED World
Model Number :
LE-MI 3
Certification :
CE,RoHS,FCC
Place of Origin :
China
MOQ :
negotiable
Price :
negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
50,000PCS/Month
Delivery Time :
5~15 days after receiving the deposit
Packaging Details :
Carton/Plywood case/Flight case etc.
Refresh frequency :
> 600Hz
LED Encapsulation :
SMD 2121
Module size :
192mm*96mm
viewing angle(H/V) :
H:160° V:140°
Brightness :
1600 cd/m2
Life span :
> 100, 000 hours
Scan :
1/16 scan
Working temperature :
-30° C~60° C
Description

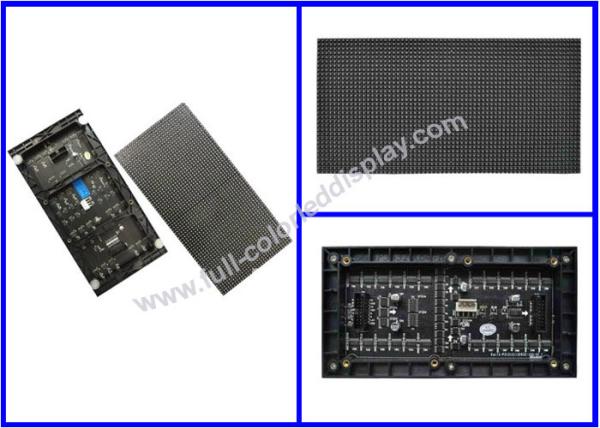

P3 indoor full color led screen module width 192 height 96 mm high definition

Features:

  • The most effective solution for indoor HD billboard;

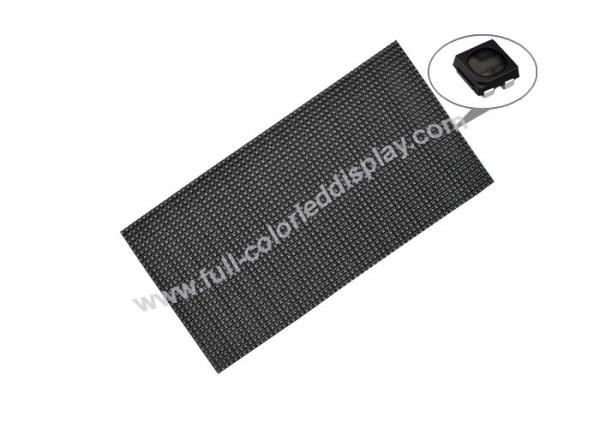

  • SMD led encapsulation technology confirm the wide view angle up to 140 degree for horizontal and vertical, and good uniformity,less than 0.1mm difference;
  • Patented mask,eliminating the dark spots,improving consistency and viewing angle;
  • SMD led encapsulation confirm the good uniformity and high definition;
  • Supports video and radio frequency input, special structure can be freely assembled;
  • Panel supports both concave and convex curve installations;
  • 6000: 1 contrast ratio tempers screen brightness into sharp, focused images whether up close or far away;
  • Our products are the CE certified, ROHS compliant, FCC identified;
  • Easy and simple installation interface and user friendly software to ensure the easy operation the indoor LED display system；

Application:

Our full color LED display are widely used in large exhibition hall,Community centers, plaza,cinema, elevator,gas station,securities exchanging,swimming pools,Entertainment complexes,Football fields,storesTV-Show,Outdoor Signage and advertisement,large entertainment plaza,Shopping Guide,subway station,stage background,Churches,bar,bookstore,parking garage and so on .

Parameter:

Paramete of P3 LED module
Item Parameter
Model Number LW-MI3-192X96-16scan
Pixel pitch 3mm
Module size 192mm*96mm
Module resolution 64x32 dots
Pixels Density 111111 dots/m²
LED Encapsulation SMD 2121
Red wavelength 625± 2nm
Green wavelength 525± 2nm
Blue wavelength 470± 2nm
Color Temperature 6500-9500k
Best Viewing Distance 4m--20m
viewing angle(H/V) H:160° V:140°
power consumption 270w/m2 (average)
Brightness 1600 cd/m2
Gray scale 16bits per color
Control system Synchronization & Asynchronization
Scan 1/16 Scan
Frame frequency 60Hz
Refresh frequency > 600Hz
Working voltage 110v/220v
IP grade IP31
Working temperature -30° C~60° C
MTBF > 10000 hours
Life span > 100, 000 hours
Defects rate. ≤ 0.00001(Led display line standard< 0.0001)
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World.

Our service:

  • Factory visiting and inspecting is welcome;
  • Your inquiry related to our products or price will be replied in 24hrs;
  • Training in our factory offered FOC;
  • Your inquiry will be replied within 24 hours!

Product agingHigh Definition Led Module Display Easy Operation 100000 Hours Life Span:
