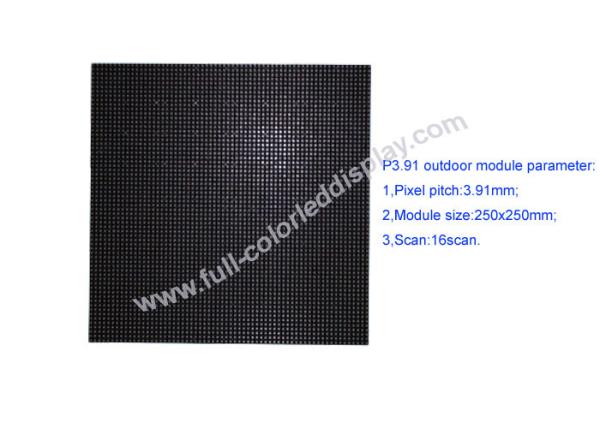

P3.91 outdoor Full Color LED Display Moudle smd2727 lamp >5500cd/sq.m 1/16 scan.
Features:
Application:
Our full color LED display are widely used in
Internet bar,insurance company,entertainment TV,studio,outdoor,pharmacy,train/bus station,
entertainment TV,stage shows,security company,Football fields,toll station,shopping malls,
theaters,club,Celebration,schools,Indoor Sports Arenas,museum,Auto Parts and Maintenance shops,Sports events and so on .
Parameter:
| Paramete of P3.91 LED module | ||||||
| Item | Parameter | |||||
| Model Number | LW-MO3.91-250X250-SMD-1/16scan | |||||
| Pixel pitch | 3.91mm | |||||
| Pixel Configuration | 1R1G1B | |||||
| LED component | SMD2727 | |||||
| Size of module | 250mm x 250mm | |||||
| Resolution of module | 64x64 | |||||
| Size of cabinet | 500x500mmx 70mm/ 500mm x 1000mm x 70mm | |||||
| Resolution of cabinet | 128x128 dots or 128x256dots | |||||
| Material of Cabinet | Die-casting Aluminum | |||||
| Weight of Cabinet | 8kgs/13KGS | |||||
| Brightness | >5500cd/sq.m | |||||
| Density | 65746dots/sq.m | |||||
| Best viewing angle | 140 /140 | |||||
| Pixel Configuration | 1R1G1B | |||||
| Best viewing distance | 3-50M | |||||
| Maximum power consumption | 1200W/sq.m | |||||
| Average power consumption | 640W/sq.m | |||||
| Driving method | 1/16 scan | |||||
| Control method | Synchronization | |||||
| Gray scale | 65536 | |||||
| Colors | 256*256*256 | |||||
| Color temperature | 3200-9300k | |||||
| Uniformity | 97% | |||||
| Working voltage | AC220V/110V±10% | |||||
| Working temperature | -20ºC~+50ºC±10% | |||||
| Working humidity | 10% ~ 90% | |||||
| MTBF | 10,000 hours | |||||
| Frame frequence | 50/60Hz | |||||
| Refresh frequence | >1920Hz | |||||
| IP grade | IP65 | |||||
| Life Span | 100,000 hours | |||||
| Data transafer method | RJ45 | |||||
| Pratical standard | CCC TUV-CE ETL etc. | |||||
| Effectivce Communication | Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M; | |||||
| Distance(without relay) | Single-mode optic fiber: 10KM | |||||
| Accepting signal with video processor | PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc. | |||||
| Systems operating platform | WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development | |||||
| Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World. | ||||||
