Specifications
Brand Name :
Shenzhen LED World
Model Number :
LW-FI4
Certification :
CE, ROHS , CCC , FCC
Place of Origin :
China
MOQ :
1 pcs
Price :
Negotiation
Payment Terms :
D/A, D/P, T/T, Western Union, MoneyGram,
Supply Ability :
5,000 pcs per month
Delivery Time :
7- 18 working days
Packaging Details :
Carton/wooden case/Flight case etc.
Pixel pitch :
4mm
Lamp :
SMD2121/SMD2020 black
Module size :
240mmx120mm
Drive model :
1/15 scan
Module Resolution :
60 dots x 30 dots
Module pixel :
1,800 pixel
Power :
DC 5 v
Number of colors :
16bit
Discrete control point :
≤0.1‰
Control method :
Synchronous/asynchronous
Description

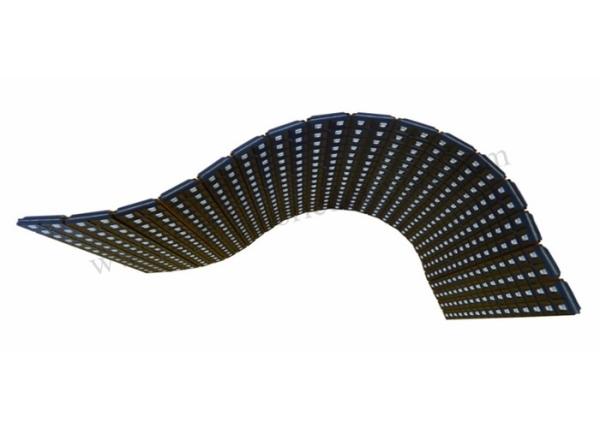

1500 Nits P4 Small Bendable Creative Flexible Led Module 240X120mm

Long ago, LED creative screens were realized by traditional rectangular module assembly or wrapping. The most common LED creative screens were large curved and flat circular screens. The led curved screen has a big flaw and is sewn together with the cabinet. Will greatly reduce the visual experience of the audience. Hence the emergence of flexible led displays.

P4 flexible led screen Feature:

  • Easy to publish information
    By connecting to a computer through data cable connection or wireless communication, setting up on the computer, you can publish advertising content, convenient and fast.

  • Seamless Splice : bring audience wonderful visual experience
  • Low power cosumption: only 10W per square meter
  • Save your Cost: Flexible led display can maintainance single led lamp instead of traditional changing the whole module
  • Super slim: only 1.6cm , including magnet just 1.6cm thickness
  • Flexibility: Flexible FPC circuit board made of flexible insulating material

P4 flexible led screen Parameter:

P2.5&P3&P4 Indoor flexible LED module parameter
240mm x 120 mm module/256mmx128mm
No. Parameter Value
led type brightness Wave Length H/V Visual angle
1 Red LED SMD2121/SMD2020 40-60 MCD 620-625nm 140°/120°
2 Green LED SMD2121/SMD2020 110-180 MCD 514-535nm 140°/120°
3 Blue LED SMD2121/SMD2020 20- 45 MCD 460-475nm 140°/120°
4 Pixel pitch 2.5mm 3mm 4mm 4mm
5 Lamp SMD2121/SMD2020 black
6 Module size 240mmx120mm 240mmx120mm 240mmx120mm 256mmx128mm
7 Drive model 1/24 scan 1/20 scan 1/15 scan 1/16 scan
8 Pixel Configuration 1R1G1B
9 Module Resolution 96 dots x 48 dots 80 dots x 60 dots 60 dots x 30 dots 64 dots x 32 dots
10 Module pixel 4,608 pixel 4,800 pixel 1,800 pixel 2,048 pixel
11 Brightness 900 ~1200cd/M2
12 Power DC 5 v
13 Number of colors 16bit
14 Discrete control point ≤0.1‰
15 Control method Synchronous/asynchronous
16 Working temperature -20°C~+50 °C
17 Working environment humidity 10%~90%
18 Transfer board hub75
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World.

Why Choose Us LED WORLD ?

  • We have manufactured led display for 11 years, quality is guaranteed;
  • With special rigging system It is very convenient to hang the screen to truss It is very safe;
  • Because we have our own factory, can provide high quality product at the best price. From raw materials to finished product, from design to produce, we control all steps, which are the guarantee of the quality and reliability;
  • Many produce lines work everyday for domestic and international orders;
  • We are expert in rental LED display , we have many ultra-thin super-light panel designs for your choice;
  • Any your customized screen we can help you to design and put into product;
