Wireless Full Color LED Display Module 2.5mm Pixel Pitch Customized 2 Years Warranty
Wireless Full Color LED Display Module 2.5mm Pixel Pitch Customized 2 Years Warranty
Specifications
Brand Name :
Shenzhen LED World
Model Number :
LW-MI2.5
Certification :
CE, ROHS , CCC , FCC
Place of Origin :
China
MOQ :
1 pcs
Price :
7 $/ pcs
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100000 pcs/month
Delivery Time :
7- 18 working days
Packaging Details :
wooden case , flight case , paper carton
Screen dimension :
Customized
Tube chip color :
Full Color
Usage :
Indoor
Pixels :
2.5mm
Display function :
Video,text,message,image,picture
Brightness :
1200cd/sqm
Warranty :
2 Years
Led chip :
Kinglight
Module size :
160mm X 160mm
Life span :
100000hours
Scan mode :
1/16 Scan
Description

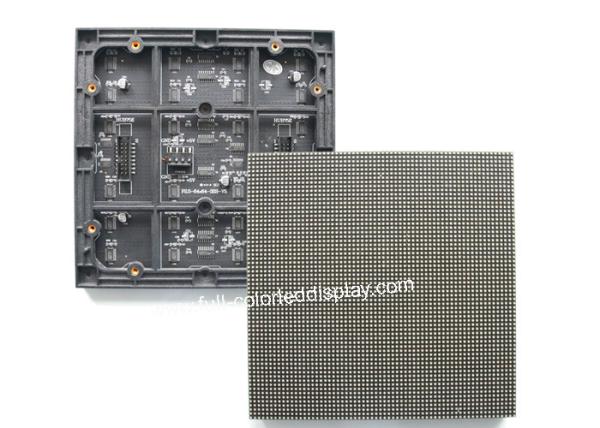

2.5mm pixel pitch indoor wireless led display screens module

2.5mm pixel pitch led module Features:

dustproof, die-casting aluminum cabinet without holes , so it can prevent dust from entering effectively

All our internal wires are made of pure copper , which is more stable and has almost no after-sales services

Product appearance is beautiful and generous , they are very popular with customers

we adopt high streng die-casting alumium material , it is very durable


2.5mm pixel pitch led module Parameters:

No. Parameter Value
1 Red LED SMD2121 120-140 MCD 620-625nm
2 Green LED SMD2121 360-435 MCD 520-525nm
3 Blue LED SMD2121 80- 100 MCD 470-475nm
4 Pixel pitch 2.5 mm 3mm 4mm
5 Brightness 800-1000 cd/M2 1200 cd/M2 1200 cd/M2
6 Module size 160mm x 80mm 192mm x 192mm 256mm x128mm
7 Drive model 1/32 scan 1/32 scan 1/16 scan
8 Pixel Configuration 1R1G1B 1R1G1B 1R1G1B
9 Module Resolution 64 dots x 32 dots 64 dots x 64 dots 64 dots x 32 dots
10 Module pixel 2048 pixel 4096 pixel 2048 pixel
11 Power DC 5 v
12 Number of colors 16bit
13 Discrete control point ≤0.1‰
14 Control method Synchronize with the video source
15 Working temperature -20°C~+50 °C
16 Working environment humidity 10%~90%
17 H / V viewing angle 140°/120°
18 Transfer board hub75
19 Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World.


Product Details:

Our Service:

Our company has strong technical support, so you don't have to worry about the quality of our products

Our sales staff will reply to you within 24 hours with the best service attitude

Our technical engineers can speak English. If you have any technical problems, we can communicate with you directly

Once you pay 30% deposit, we can send you the steel structure drawing for your customization

Customers can choose to have electronic, computer knowledge of engineers to plant operation and maintenance training.

Project Case:

Wireless Full Color LED Display Module 2.5mm Pixel Pitch Customized 2 Years Warranty
