Conference Module Led Full Color , Led Panel Module 2mm Pixel Pitch 800 Nits Brightness
Conference Module Led Full Color , Led Panel Module 2mm Pixel Pitch 800 Nits Brightness
Conference Module Led Full Color , Led Panel Module 2mm Pixel Pitch 800 Nits Brightness
Conference Module Led Full Color , Led Panel Module 2mm Pixel Pitch 800 Nits Brightness
Specifications
Brand Name :
Shenzhen LED World
Model Number :
LW-MI2
Certification :
CE, ROHS , FCC , CCC
Place of Origin :
China
MOQ :
1 pcs
Price :
7 $/ pcs
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100000 pcs/month
Delivery Time :
7- 18 working days
Packaging Details :
wooden case , flight case , paper carton
Tube chip color :
full color
Display function :
text, picture, video
Pixel pitch :
2mm
Screen dimension :
multiple of 256mm X 128mm
Warranty :
2 Years
Brightness :
800nits
Led chip :
nationstar
Module size :
256mm X 128mm
Application :
conference room
Life span :
100000hours
Pixel density :
250000 dots / sqm
Cabinet size :
512mm X 512mm
cabinet resolution :
256 dots X 256 dots
Refresh rate :
1920HZ
Description

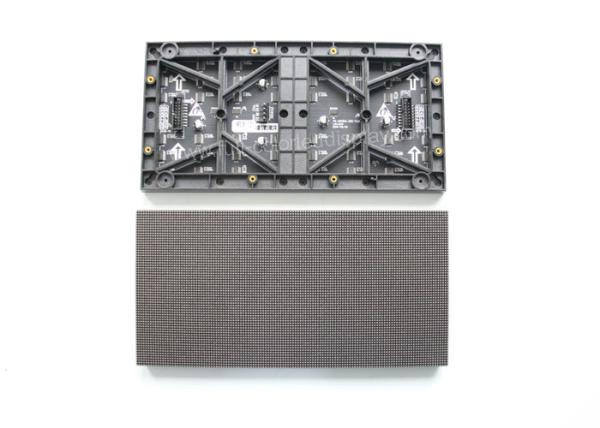

2mm pixel pitch full color indoor led display signs module

2mm pixel pitch module features:

1080P high resolution, 500 dots X 500 dots = 250000dots/sqm, so very high density, and high precision
Seamless splicing, High gray scale, good performance viewing effect

Zero noise, because it adapts die-casting alumium cabinet , so it doesn't need fans
Radiate quickly , because aluminum marterial is heat-conducting

The most effective solution to indoor HD led display billboard
With fast locks and air plug, it is convenient for customer to install and Dismantle
Easy to carry with flight case , Light weight: about 6.5kg/cabinet

2mm pixel pitch module parameters:

Full color indoor led display with die-casting aluminum cabinet for stage
Pixed Pitch 2mm
LED Module size 256*128mm
Physical Density 250000dots/sqm
Panel Resolution 128*64
LED Cabinet size 512*512mm
LED Control System Novastar / Linsn / HD
LED Lamp Epistar lamp / Nationstar lamp
IC MBI5124 / ICN2038S / ICN 2053
Power Adapter G-energy / Meanwell / CL
Viewing Angle 170 Deg
Option Distance 2-30m
Power Supply 5V40A / 5V60A
Maximum Power 500 W/ M2
Frame Frequency ≥60 HZ/S
Refresh Frequency ≥3840 HZ/S
Equilibrium Brightness ≥1000 CD/ M2
Working Environment Temperature -10~600C
Working Environment Humidity 10%~70% RH
Display Working Voltage AC46~54HZ,220V±15%/110V±15% VAC
Gray Scale/Color ≥16.7M color
Input Signal RF S-Video RGB etc
Mean Free Error Time >5000 HOURS
IP Rating The back IP40,The front IP50
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World.
