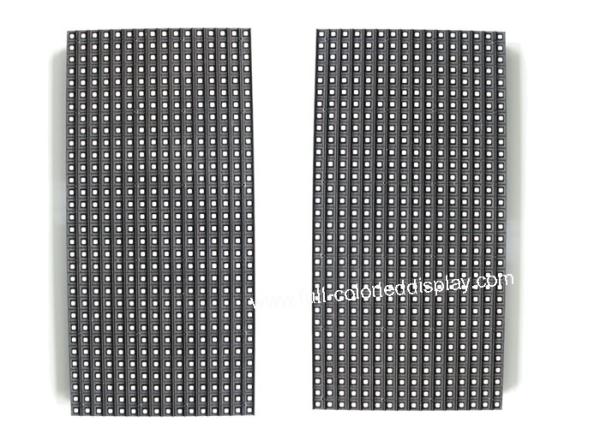

P4 Outdoor Smd Full Color LED Display Module Digital Public For Activity Performance
P4 Outdoor Smd Full Color LED Display Module Digital Public For Activity Performance
P4 Outdoor Smd Full Color LED Display Module Digital Public For Activity Performance
P4 Outdoor Smd Full Color LED Display Module Digital Public For Activity Performance
Specifications
Brand Name :
Shenzhen LED World
Model Number :
LW-MO4
Certification :
CE, ROHS , CCC , FCC
Place of Origin :
China
MOQ :
1 pcs
Price :
7 $/ pcs
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100000 pcs/month
Delivery Time :
7- 18 working days
Packaging Details :
wooden case , flight case , paper carton
Pixel pitch :
4mm
Usage :
Outdoor
Screen dimension :
Customized Size
Tube chip color :
Full Color
Display function :
Animation
Brightness :
6500cd/sqm
Warranty :
2 Years
Led chip :
NationstarSMD2727
Refresh rate :
≥1920 Hz
Lifespan :
10 0000 Hours
Description

P4 outdoor smd led display digital public for activity performance​

P4 outdoor led module Features:

  • True white, bright colors, striking shades of gray;
  • The cabinet is made of die-cast aluminum, which can be spliced without cracking.Cabinet thickness is only 80mm;
  • Low: excellent heat dissipation design, no fan or air conditioning, low noise, low power consumption, high cost performance;
  • No tool lock system, quick installation;
  • Simple and beautiful design;

P4 outdoor led module Parameters:

Item P4 Outdoor LED display
Pixel Configuration 1R1G1B
Physics Distance Between Pixels 4mm
Physics Pixel Density 62,500 Pixel/m2
Module Size (W x H) 256mmx128mm
Physics Pixel / Module 64x32=1024
Cabinet Size (W x H) 512mmx512mm
Physics Pixel / Cabinet 128x128=9216
Cabinet Weight 12kg
Brightness 5000cd/m2
Viewing Distance >4m
Power Consumption (W/m2) MAX 1300; Average 260
Driver Mode 1/8 scan
Led Life 100,000 hours
Supply Voltage AC220V/60HZ
Operating Temperature -20ºC~+50ºC
Operating Humidity 10%-90%
Storage Temperature -40ºC~+60ºC
Viewing Angle Horizontal:120°; Vertical: 120°
Grey Scale Red, green, blue each 16k
Display Colors 4096 Billion
Refresh Rate 300HZ-3000HZ adjustable
IP Rating Front IP65 waterproof dust-proof
Display Capability Video, Graphic, Text, flash
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World.
