1R1G1B Big Indoor Full Color LED Display Module 3mm Pixels 2 Years Warranty
1R1G1B Big Indoor Full Color LED Display Module 3mm Pixels 2 Years Warranty
1R1G1B Big Indoor Full Color LED Display Module 3mm Pixels 2 Years Warranty
1R1G1B Big Indoor Full Color LED Display Module 3mm Pixels 2 Years Warranty
Specifications
Brand Name :
Shenzhen LED World
Model Number :
LW-MI3
Certification :
CE, ROHS , CCC , FCC
Place of Origin :
China
MOQ :
1 pcs
Price :
7 $/ pcs
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100000 pcs/month
Delivery Time :
7- 18 working days
Packaging Details :
wooden case , flight case , paper carton
Screen dimension :
multiply of 192mm X 192mm
Tube chip color :
Full Color
Usage :
Indoor
Pixels :
3mm
Display function :
Warranty :
2 Years
Led chip :
Kinglight
Module size :
192x192mm
Life span :
100000 Hours
Application :
video commercial ad
Color :
1R1G1B
Pixel density :
111111 dots/sqm
Scan mode :
1/32 scan
Name :
64x32 LED Display Module Dot Matrix P3 Indoor
Refresh rate :
≥1920 Hz
Description

P3 192 mm X 192 mm big indoor smd led display board module for advertising

P3 192mm X 192mm led module Features:

  • We shenzhen LED world adopts the brand lamp bead, it is the lamp bead of high quality, almost need the lamp after-sale service
  • We also use branded integrated circuits to make the screen more stable
  • Rental show we have quick lock, easy to install and disassemble, it can save you time effectively
  • We have cable connectors, which can also save you a lot of time
  • Aluminum has good heat dissipation performance, can extend the service life of led display


P3 192mm X 192mm Parameters:

Items P2.5mm P3mm P4mm P5mm P6mm
Pixel 1R1G1B 1R1G1B 1R1G1B 1R1G1B 1R1G1B
Configuration SMD 3-in-1 SMD 3-in-1 SMD 3-in-1 SMD 3-in-1 SMD 3-in-1
Pixel Pitch 2.5mm 3mm 4mm 5mm 6mm
Pixel Density 160,000 111,111 62,500 40,000 27,777
Module Size(mm) 160x160 192x192or 192x96 256x128 160x160or 320x160 192x192 or 384x192
Pixels/Module 64x64 64x64or 64x32 64x32 32x32or 64x32 32x32or 64x32
Cabinet Size(mm) Customized
Pixels/Cabinet 384x384 320x320 256x256 192x192 160x160
Cabinet Weight Customized
Brightness 1300cd/m2 1300cd/m2 1300cd/m2 1300cd/m2 1300cd/m2
Viewing Distance >2.5m >3m >4m >5m >6m
Power Consumption Max: 800 Max: 800 Max: 650 Max: 400 Max: 400
(W/m2) Ave: 240 Ave: 240 Ave: 195 Ave: 120 Ave: 120
Driver Mode 1/32 scan 1/16 scan 1/16 scan 1/16 scan 1/16 scan
Cabinet Material Cold Rolled Steel
Refresh Rate 300-3000HZ adjustable
LED Life 100,000 hours
Supply Voltage AC220V/50HZ; AC110V/60HZ
Operating Temperature -20℃ ~ +40℃
Operating Humidity 10% - 90%
Viewing Angle H: 120°; V: 120°
Gray Scale Red, Green and Blue each 16K
Display Color 4096 Billion
IP Rating IP20
Display Capability Text, Graph and Video
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World.


Product Details:

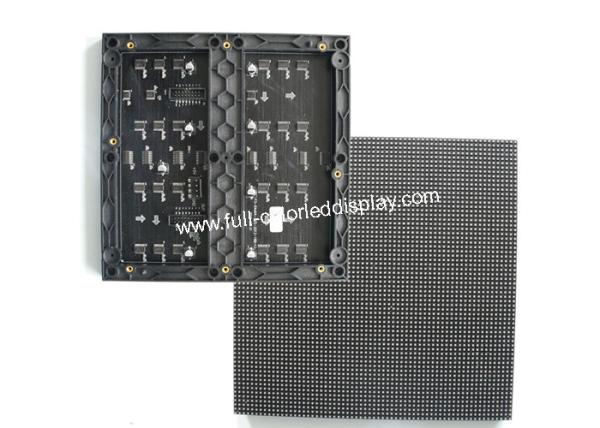

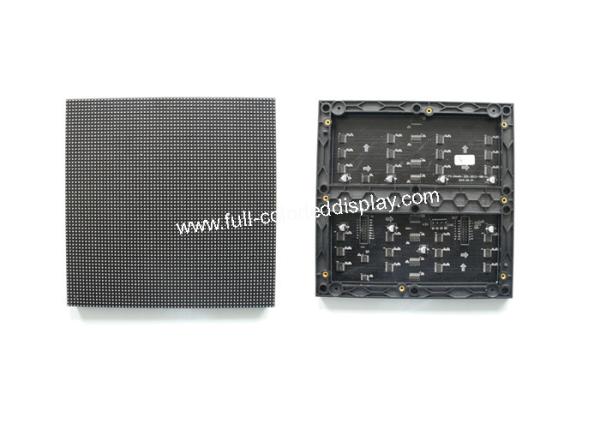

1R1G1B Big Indoor Full Color LED Display Module 3mm Pixels 2 Years Warranty


Project Case:

1R1G1B Big Indoor Full Color LED Display Module 3mm Pixels 2 Years Warranty

Warm Notice:

  • The unit price depends on the quantity. We can give you a competitive price.
  • Your enquiry for our products or prices will be answered within 24 hours.
  • Well-trained and experienced staff can answer all your questions in fluent English.
  • Distribution is for you to provide a unique design and some of our current models.
  • Protect your sales territory, design philosophy and all of your personal information.
