Indoor Full Color Led Module P3 Convenient Soft Flexible Any Shape AC220V/110V
Indoor Full Color Led Module P3 Convenient Soft Flexible Any Shape AC220V/110V
Indoor Full Color Led Module P3 Convenient Soft Flexible Any Shape AC220V/110V
Indoor Full Color Led Module P3 Convenient Soft Flexible Any Shape AC220V/110V
Specifications
Brand Name :
Shenzhen LED World
Model Number :
LW-MF3
Certification :
CE, ROHS , CCC , FCC
Place of Origin :
China
MOQ :
1 pcs
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100000 pcs/month
Delivery Time :
7- 18 working days
Packaging Details :
wooden case , flight case , paper carton
Pixel pitch :
3.0 mm
Pixel :
1R1G1B
Driving method :
1/20 scan
Control method :
Synchronization
Gray scale :
65536
Color temperature :
3200-9300k
Working voltage :
AC220V/110V±10%
Configuration :
SMD 3-in-1
Pixel Density :
111111dots/m2
module pixels :
80 X 40 pixels
screen size :
customized
led lifespan :
100000hours
Operating Humidity :
10% - 90%
IP Rating :
IP20
Description

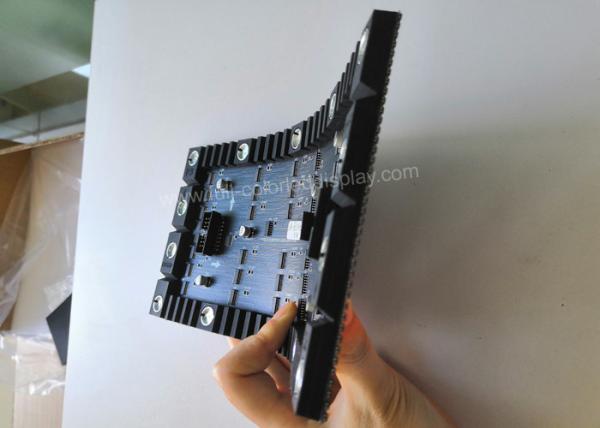

Indoor full color P3 convenient soft for flexible any shape led display screen module

P3 soft led module Features:

  • Good malleability, can be any shape
  • Cylinder screen with high brush performance, can be lifted, mounted
  • Cooperate with site requirements to the maximum extent possible
  • Widely used for different curved,Cylindrical screens with different screens as request


P3 soft led module Parameters:

P3 SMD1515 Indoor full Color soft LED Module
Pixel pitch 3.0 mm
Pixel Configuration 1R1G1B
LED component SMD1515
Size of module 240mm x 120mm x 1.6mm (thickness)
Resolution of module 80x40 pixels
Brightness >1000cd/sq.m
Density 111111 dots/sq.m
Best viewing angle 160° /120°
Best viewing distance 3-30M
Maximum power consumption 25W/module
Driving method 1/20 scan
Control method Synchronization
Gray scale 65536
Color temperature 3200-9300k
Uniformity 97%
Working voltage AC220V/110V±10%
Working temperature -20ºC~+50ºC±10%
Working humidity 10% ~ 90%
MTBF 10,000 hours
Frame frequence 50/60Hz
Refresh frequence >1920Hz
IP grade IP31
Life Span 50,000 hours
Data transafer method RJ45
Pratical standard CCC TUV-CE ETL etc.
Effectivce Communication Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Distance(without relay) Single-mode optic fiber: 10KM
Accepting signal with video processor PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc.
Systems operating platform WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World.


Product Details:

Indoor Full Color Led Module P3 Convenient Soft Flexible Any Shape AC220V/110V

Why Choose Us:

  • Supporting OEM/ODM service, If you have special requirements about the shape and systems, we can make correspond solutions for you;
  • We mainly focuses on achieving customers innovative ideas by customizing lead screens;
  • Close Relationships with Raw Material Providers
  • We have very close and strategic relationship with the raw material providers which support the stable quality of our products;
  • Four main reasons why our customer choose us;
  • Stable Good quality:we are led display manufacturer for 7 years and we have rich experience for outdoor and indoor led screen;
