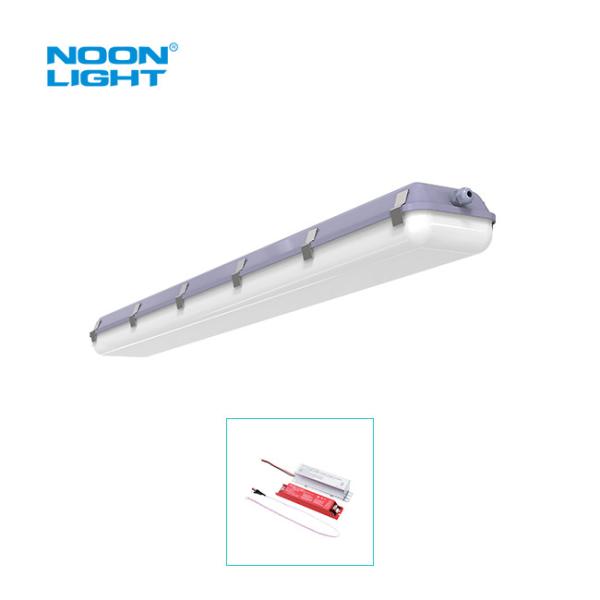

40W 5200 Lumens LED Vapor Tight Fixture 4000K 5000K Tunable
40W 5200 Lumens LED Vapor Tight Fixture 4000K 5000K Tunable
Specifications
Brand Name :
Noonlight
Model Number :
N-VT-4FT
Certification :
DLC 5.0 / ETL / RoHS
Place of Origin :
China
MOQ :
300
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, Paypal
Supply Ability :
10000 Piece/Pieces per Month
Delivery Time :
30+ working days
Product name :
4FT LED Vapor Tight Light, 40W 5200 Lumens LED Vapor Proof Light, [100W Equivalent] 4000K, 5000K Tunable, IP65 Warerproof, 100-277VAC, 0-10V Dimmable with Emergency Backup
Input Voltage :
120-347VAC / 120-277VAC (Optional)
Power :
4 Step Wattages Adjustable
CCT :
CCT Adjustable 4000K,4500K, 5000K
CRI :
Ra>80
Length :
4FT/8FT
Efficiency :
Super high LPW, 130LM/W@4000K
Lens :
Frosted lens
Waterproof :
IP-65
Viewing angle :
120
Warranty(Year) :
5 years warranty
Description

4FT LED Vapor Tight Light, 40W 5200 Lumens LED Vapor Proof Light, [100W Equivalent] 4000K, 5000K Tunable, IP65 Warerproof, 100-277VAC, 0-10V Dimmable with Emergency Backup

40W 5200 Lumens LED Vapor Tight Fixture 4000K 5000K Tunable

  • LED Vapor Tight Fixtures Are Lightweight To Help Make Installation Easier, And Can Be Surface Mounted Or Suspended. Some LED Vapor Tight Fixtures Include A Motion Sensor, Allowing The Light To Come On Only When Movement Is Detected. These Sensors Turn The Light Back Off After A Set Amount Of Time Without Activity. A Few Fixtures Are Available With A Built In Emergency Backup That Provides Light For Up To 90 Minutes In The Event Of A Power Failure.​

40W 5200 Lumens LED Vapor Tight Fixture 4000K 5000K Tunable

  • UP TO 130LM/W
  • CRI>80, CCT Tunable, 4000K, 4500k, 5000k
  • An auxiliary to connect low voltage sensor/BLE or other IOT network.
  • Various Lens Option: Clear, Frosted,
  • Built-in Emergency Driver Option.
  • L70>50,000hrs, 5 year warranty.

40W 5200 Lumens LED Vapor Tight Fixture 4000K 5000K Tunable

40W 5200 Lumens LED Vapor Tight Fixture 4000K 5000K Tunable

40W 5200 Lumens LED Vapor Tight Fixture 4000K 5000K Tunable

Model No DLC Input Voltage Wattage Lens CRI/CCT Rated Lumen @ 50K

Rated

Efficancy

@ 50K

Replacing

Viewing Angle

N-VTR-4FT-40W-1XX-[Blank,HV] -[Blank, S1, S2]-D-FL-CT-FA-Z

YES

100-277VAC

or

100-347VAC

40W

Frosted lens

Ra>80,

40K

45K

50K

5200LM

130LM/W

2 X T5HO 4FT 54W

3 X T8 4FT 32W

120°

N-VTR-4FT-30W-1XX-[Blank,HV] -[Blank, S1, S2]-D-FL-CT-FA-Z

YES

100-277VAC

or

100-347VAC

30W

Frosted lens

Ra>80,

40K

45K

50K

3900LM

130LM/W

2 X T5HO 4FT 54W

3 X T8 4FT 32W

120°

N-VTR-4FT-25W-1XX-[Blank,HV] -[Blank, S1, S2]-D-FL-CT-FA-Z

YES

100-277VAC

or

100-347VAC

25W

Frosted lens

Ra>80,

40K

45K

50K

3250LM

130LM/W

2 X T5HO 4FT 54W

3 X T8 4FT 32W

120°

N-VTR-4FT-18W-1XX-[Blank,HV] -[Blank, S1, S2]-D-FL-CT-FA-Z
YES

100-277VAC

or

100-347VAC

15W

Frosted lens

Ra>80,

40K

45K

50K

2350LM

130LM/W

2 X T5HO 4FT 54W

3 X T8 4FT 32W

120°

40W 5200 Lumens LED Vapor Tight Fixture 4000K 5000K Tunable

40W 5200 Lumens LED Vapor Tight Fixture 4000K 5000K Tunable

Bi-level 12VDC 0-10V Motion Sensor

Specification

  • Dual PD Technology: Can Identify Daylight And Artificial Light.
  • Input Voltage: 12VDC
  • Output: 0-10V, 25mA sinking current
  • Mounting Height: Max. 40ft.
  • Detection Range: 30ft @ 40ft height in diameter
  • IR Remote Commissioning: Easy Setting Via Remote Controller
  • Photocell Available​

Default Setting/Setting

  • Sensitivity: 100%/25%, 50%, 75%, 100%
  • Daylight Sensor: Disable/ambient Learn, 10lux, 30lux, 50lux, 100lux, 300lux, 500lux, Disable
  • Hold Time: 5min/10s, 1min, 5min, 5min, 10min, 15min, 20 Min, 30min, 60 Min
  • Twiligh Time: Never Turn Off/1min, 30min, 1h, Never Tun Off
  • Twilight Level: 20%/off, 10%, 20%, 50%

40W 5200 Lumens LED Vapor Tight Fixture 4000K 5000K Tunable

15W or 30W UL Listed Emergency Backup

  • Listed for field Instllation-UL924 & CSA C22.2 NO. 141
  • Input: 120-277VAC/347VAC 50/60Hz
  • Output: 25-50VDC, 15 or 30W
  • Illumination Time: 90min
  • Battery Type:Li-ion/Ni-MH
  • Battery Recharge Time: 24Hrs
  • Surge Protection: 3KV
  • Protection:
  • Input over-current Protection (Fuse)
  • Output over-voltage Protection
  • Output Low Voltage Protection
  • Output Short Circuit Protection
  • Working Temp.: 10℃ to 50℃

40W 5200 Lumens LED Vapor Tight Fixture 4000K 5000K Tunable

HOW TO CHANGE THE WATTAGE IN THIS FIXTURE

40W 5200 Lumens LED Vapor Tight Fixture 4000K 5000K Tunable

Power Adjustable Slide Switch Position
Size/Positon W1 W2 W3 W4
4ft 40W 30W 25W 18W
8ft 80W 70W 60W 45W


40W 5200 Lumens LED Vapor Tight Fixture 4000K 5000K Tunable

HOW TO CHANGE THE CCT IN THIS FIXTURE

CCT Tunable Slide Switch Position

Position/Group

 CCT
CCT1 4000K
CCT2 4500K
CCT3 5000K

40W 5200 Lumens LED Vapor Tight Fixture 4000K 5000K Tunable

Ideal for office, passageway, general lighting etc.

40W 5200 Lumens LED Vapor Tight Fixture 4000K 5000K Tunable
