Specifications
Brand Name :
Noonlight
Model Number :
N-VTS-2FT
Place of Origin :
China
Certification :
DLC, ISO9001, Rosh, ETL,
MOQ :
100pcs
Price :
Negotiable
Packaging Details :
Carton box
Delivery Time :
30 day(s)
Payment Terms :
T/T, AliPay, PayPal
Supply Ability :
3000 pcs/day
Application :
Gymnasium Farm Stadium Warehouse Factory Tunnel
Power :
30W(Max)
Warranty :
5 Years
Sensor :
Built-in Microwave Motion Sensor
CRI :
>80
Product Name :
SQUARE LED VAPOR TIGHT
Input Voltage :
AC 100-277V/120-347VAC
IP Rating :
IP-65
Description

Product Description:

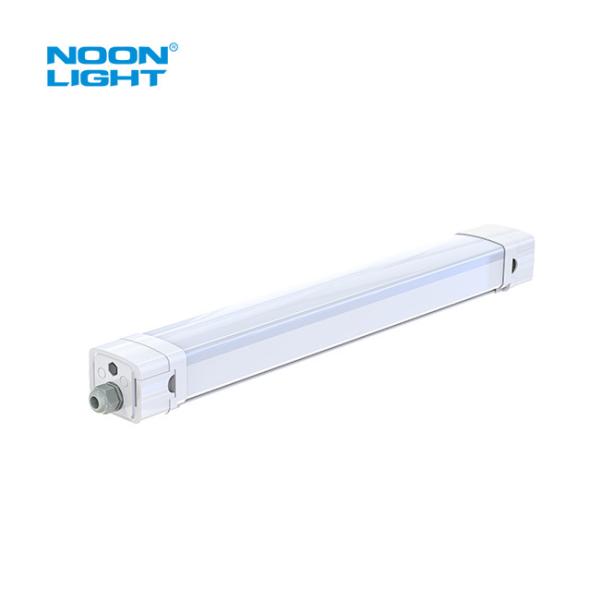

Noonlight VTS & VTSR Series of LED Tri-Proof Light Fixtures

Noonlight VTS & VTSR series of LED tri-proof light fixtures offer an excellent choice for those who need durable lighting fixtures that are protected from the elements. These fixtures are rated IP65, making them perfect for cold storage, car wash, agricultural or other lighting applications.

The products are made of durable plastic housings with a frosted polycarbonate lens, providing a wide beam spread of light. This is great for illuminating large areas, ensuring that the entire space is well-lit. The frosted lens also helps to reduce glare, making it easier to work in the area without eye strain or discomfort.

Finally, the stainless steel clips on the fixtures allow for Toolless Entry into the housing. This makes it easy to change out light bulbs or perform other maintenance tasks without the need for additional tools. This feature saves time and money and ensures that the fixtures will always be in good working order.

Features:

Daisy Chain

The Daisy Chain is an LED lighting system that offers up to 130 lumens per meter and 160 lumens per meter. It has a Class P programmable LED driver with four adjustable wattage and four tunable CCT (correlated color temperature) options.

This system also features 5-100% 0-10V dimming capabilities, which are flicker-free for a seamless lighting experience. Additionally, it includes a low voltage or mains voltage occupancy sensor to further optimize energy efficiency.

In the event of a power outage, the Daisy Chain has an emergency battery pack to ensure continued lighting during critical situations. With an L70 rating exceeding 50,000 hours and a 5-year warranty, the Daisy Chain is a reliable and efficient lighting solution.

Specification

Model No ETL Input Voltage Default / Max Wattage Lens CCT Rated
Efficacy
Rated
Lumen
Viewing Angle Rated
N-VTS-2FT-30W-1XX-
[Blank,
HV]-D-CTFA
YES 120- 277VAC/
120-347VA
30W Frosted
Lens
4000K/
5000K
One CCT
130LM/W 4800LM 120°
N-VTSR-2FT-30W-1XX-
[Blank,
HV]-D-CTFA
160LM/W 3900LM
N-VTS-3FT-40W-1XX-
[Blank,
HV]-D-CTFA
YES 120- 277VAC/
120-347VA
40W Frosted
Lens
4000K/
5000K
One CCT
130LM/W 6400LM 120°
N-VTSR-3FT-40W-1XX-
[Blank,
HV]-D-CTFA
160LM/W 5200LM
N-VTS-4FT-60W-1XX-
[Blank,
HV]-D-CTFA
YES 120- 277VAC/
120-347VA
60W Frosted
Lens
4000K/
5000K
One CCT
130LM/W 9600LM 120°
N-VTS-4FT-60W-1XX-
[Blank,
HV]-D-CTFA
YES 160LM/W 7800LM

Accessories

120° Viewing Angle LED Vapor Tight Fixture 0-10V Dual Channel Dimming AC 100-277V Input Voltage
Specification
5.8Ghz C-Band Microwave.
Input Voltage: 12 - 24V DC.
Mounting Height: 3~6m.
Operation Temperature: -20°c~+ 70°c
Default Setting/Setting
Sensitivity: 100% / 25%, 50%, 75%, 100%
Daylight Sensor: Disable / 2lux,10lux, 25lux, 50lux ,100lux, 300lux, Disable , Ambient Learn

Applications:

Gymnasium,Farm,Stadium,Warehouse,Factory,Airport,Parking lot,Smelter,Tunnel


120° Viewing Angle LED Vapor Tight Fixture 0-10V Dual Channel Dimming AC 100-277V Input Voltage
