Specifications
Brand Name :
Noonlight
Model Number :
N-VTS-4FT
Place of Origin :
China
Certification :
DLC, ISO9001, Rosh, ETL,
MOQ :
100pcs
Price :
Negotiable
Packaging Details :
Carton box
Delivery Time :
30 day(s)
Payment Terms :
T/T, AliPay, PayPal
Supply Ability :
3000 pcs/day
CRI :
>80
Luminous Efficacy :
160Lm/W/130Lm/W
Luminous Flux :
6400LM(Max) / 5200LM(Max)
Dimming :
0-0-10V/0-10V Dual Channel/Dali 2/Non-Dimmable
Application :
Gymnasium Farm Stadium Warehouse Factory Tunnel
Power :
40W(Max)
RatedL70 Life :
>50,000h
Lens :
Frosted Lens
Description

Product Description:

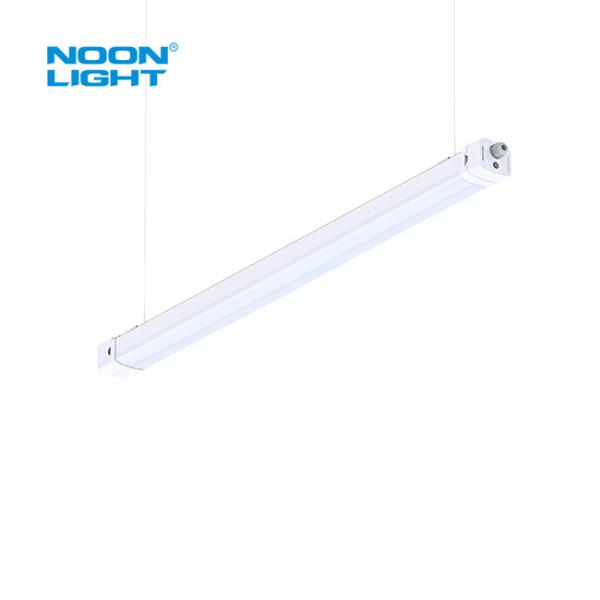

Noonlight’s VTS & VTSR LED Tri-Proof Fixtures

Noonlight’s VTS & VTSR series of LED tri-proof light fixtures are an excellent choice for your cold storage, car wash, agricultural, or any other lighting application that requires lighting fixtures that are durable and protected against environmental factors. With an IP65 rating, you can trust these fixtures to provide long-lasting lighting solutions.

The fixtures are housed in durable plastic materials and feature a frosted polycarbonate lens that offers a wide beam spread of light. This makes them an ideal solution for any space that requires bright and efficient lighting. The fixtures are designed to withstand harsh environmental conditions and provide years of reliable lighting.

What’s more, our fixtures are designed to be easy to install and provide tool-less entry into their housings. With stainless steel clips, you can easily access the fixture without requiring any additional tools or complex procedures. Installation and maintenance of these fixtures are a breeze, saving you time and money.

Features:

Daisy Chain System

The Daisy Chain LED system offers superior brightness with up to 130lm/m and 160lm/m. Powered by a Class P programmable LED driver, this system boasts 4 adjustable wattage and 4 tunable CCT options.

For those who value color rendering, the system has a CRI of over 80, with the option to upgrade to CRI > 90 in adherence to the ANSI standard.

This system is designed to streamline your workflow by minimizing your stock. With only 1 SKU, you can easily cover up to 16 different models.

The Daisy Chain system is also engineered to connect to other IoT networks. An auxiliary output enables the system to connect to low voltage motionsensor, Zigbee, Bluetooth and other IoT networks.

Technical Parameters:

Model No ETL Input Voltage Default / Max Wattage Lens CCT Rated
Efficacy
Rated
Lumen
Viewing Angle
N-VTS-2FT-30W-1XX-
[Blank,
HV]-D-CTFA
YES 120- 277VAC/
120-347VA
30W Frosted
Lens
4000K/
5000K
One CCT
130LM/W 4800LM 120°
N-VTSR-2FT-30W-1XX-
[Blank,
HV]-D-CTFA
160LM/W 3900LM
N-VTS-3FT-40W-1XX-
[Blank,
HV]-D-CTFA
YES 120- 277VAC/
120-347VA
40W Frosted
Lens
4000K/
5000K
One CCT
130LM/W 6400LM 120°
N-VTSR-3FT-40W-1XX-
[Blank,
HV]-D-CTFA
160LM/W 5200LM
N-VTS-4FT-60W-1XX-
[Blank,
HV]-D-CTFA
YES 120- 277VAC/
120-347VA
60W Frosted
Lens
4000K/
5000K
One CCT
130LM/W 9600LM 120°
N-VTS-4FT-60W-1XX-
[Blank,
HV]-D-CTFA
YES 160LM/W 7800LM

Applications:

Gymnasium,Farm,Stadium,Warehouse,Factory,Airport,Parking lot,Smelter,Tunnel

IP65 Rated 40W LED Vapor Tight Jelly Jar for Warehouses Gyms and Tunnels Dual Channel Dimming
