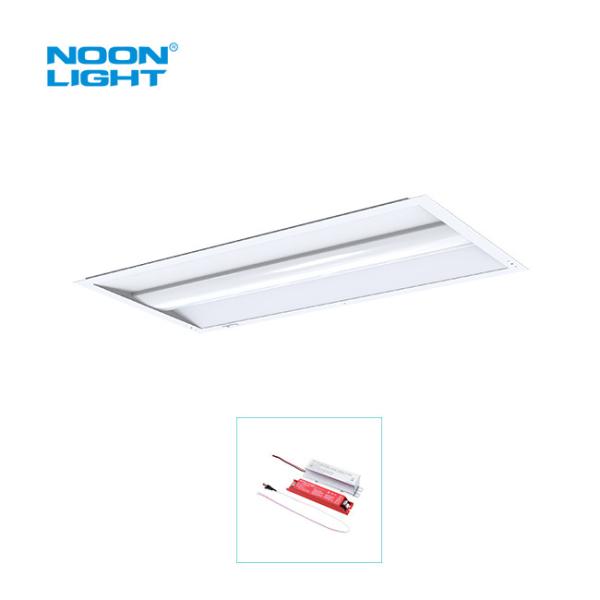

Power and CCT Tuanble 1x4 Troffer Lights With Emergency Backup
Power and CCT Tuanble 1x4 Troffer Lights With Emergency Backup
Specifications
Brand Name :
Noonlight
Model Number :
N-TR-1X4FT
Certification :
DLC / ETL / RoHS
Place of Origin :
China
MOQ :
200
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, Paypal
Supply Ability :
10000 Piece/Pieces per Month
Delivery Time :
30+ working days
Packaging Details :
1pc/inner box, 4pcs/CTN,
Product Name :
DLC5.1 Premium LED Troffer
Power :
27W-24W-20W-16W Power Adjustable
CCT :
30K/35K/40K/50K Tunable
Light Source :
2835 SMD, CRI>80
Installation :
Surface Mounted, Suspension Mounted
Certificate :
ETL/DLC 5.1 Preminum
DLC Category :
Stairwell and Passageway Luminaires
Description

Power and CCT Tuanble 1x4 Troffer Lights With Emergency Backup​

CCT and Power Tuanable LED Troffer Light Features

  • Minimize stock, 1 SKU can cover max. of 16 models.
  • An auxiliary to connect low voltage sensor/BLE or other IOT network.
  • Wattage Tunable Troffer Lights 2 Depth Design: Super Thin & Standard
  • 2x4ft LED Troffer Retrofit 5-100% 0-10V dimmable, flicker free, Dim to off.
  • Built-in PIR Sensor and Motion Sensor Options.

Specification

Model No DLC Input Voltage Wattage Lens CRI/CCT Rated Lumen @ 30K

Rated

Efficancy

@ 30K

 Viewing Angle

Rated Lifetime

Replacing

N-TR-14-27-XX-WC1

 P

120-347VAC/

120 - 277VAC 0- 10V Isolated

Dimmable

 27W Frosted

Ra>80,

30K

35K

40K

50K

3375LM

125LM/W

 120°

L70>

50000hrs

60W - 200W

Incandescent

N-TR-14-24-XX-WC1

 P

120-347VAC/

120 - 277VAC 0- 10V Isolated

Dimmable

 24W Frosted

Ra>80,

30K

35K

40K

50K

3000LM

125LM/W

 120°

L70>

50000hrs

60W - 200W

Incandescent

N-TR-14-20-XX-WC1

 P

120-347VAC/

120 - 277VAC 0- 10V Isolated

Dimmable

 20W Frosted

Ra>80,

30K

35K

40K

50K

2500LM

125LM/W

 120°

L70>

50000hrs

60W - 200W

Incandescent

N-TR-14-16-XX-WC1

 P

120-347VAC/

120 - 277VAC 0- 10V Isolated

Dimmable

 16W Frosted

Ra>80,

30K

35K

40K

50K

2000LM

125LM/W

 120°

L70>

50000hrs

60W - 200W

Incandescent

CCT and Power Tuanable LED Troffer Light Accessories

4W or 8W UL Listed Emergency Backup

Power and CCT Tuanble 1x4 Troffer Lights With Emergency Backup

  • Listed for field Instllation-UL924 & CSA C22.2 NO. 141
  • Input: 120-277VAC/347VAC 50/60Hz
  • Output: 25-50VDC, 8W or 15w
  • Illumination Time: 90min
  • Battery Type:Li-ion/Ni-MH
  • Battery Recharge Time: 24Hrs
  • Surge Protection: 3KV
  • Protection:
  • Input over-current Protection (Fuse)
  • Output over-voltage Protection
  • Output Low Voltage Protection
  • Output Short Circuit Protection
  • Working Temp.: 10℃ to 50℃

​

Advantages

ADJUSTABLE CCT TROFFER LIGHTS

HOW TO CHANGE THE WATTAGE & CCT IN THIS FIXTURE

Power and CCT Tuanble 1x4 Troffer Lights With Emergency Backup

Power Adjustable Slide Switch Position

Size/Positon

0

1

2

3

1X4

27W

24W

20W

16W

2X2

27W

24W

20W

16W

2X4

40W

30W

25W

20W

CCT Tunable Slide Switch Position

Position/Group

CCT

Low

3000K(Optional)

Middle 1

3500K

Middle 2

4000K

High

5000K

Manufacturing Abilities

Noonlight offers One stop supply chain service to our clients, all of the processes are made in house, such as lasering, punching, bending, welding, painting, smt and assemblies.

Power and CCT Tuanble 1x4 Troffer Lights With Emergency Backup

CCT and Power Tuanable LED Troffer Light Certificate

Power and CCT Tuanble 1x4 Troffer Lights With Emergency Backup

Applications

Schools, offices, conference room, hospitality etc.
