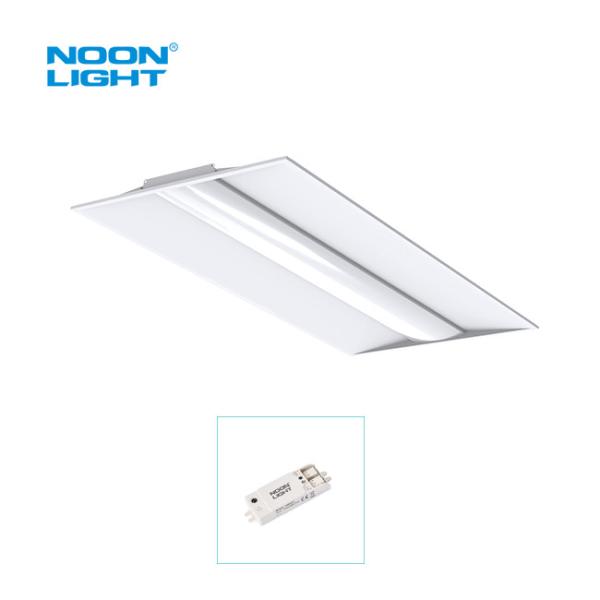

2x4FT 130lM/W LED Troffer Lights LED Center Basket Troffer For Grid Ceiling
2x4FT 130lM/W LED Troffer Lights LED Center Basket Troffer For Grid Ceiling
Specifications
Brand Name :
Noonlight
Model Number :
N-TR-2X4FT
Certification :
DLC / ETL / RoHS
Place of Origin :
China
MOQ :
200
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, Paypal
Supply Ability :
10000 Piece/Pieces per Month
Delivery Time :
30+ working days
Packaging Details :
1pc/inner box, 4pcs/CTN,
Product Name :
DLC5.1 Premium LED Troffer
Input Voltage(V) :
AC 120-277VAC or AC 120-347VAC
Power :
40W-34W-26W-20W Power Adjustable
Luminous Efficacy :
130 lm/W
Installation :
Surface Mounted, Suspension Mounted
Certificate :
ETL/DLC 5.1 Preminum
DLC Category :
Stairwell and Passageway Luminaires
Description

2x4FT 130lM/W LED Troffer Lights LED Center Basket Troffer For Grid Ceiling

CCT and Power Tuanable LED Troffer Light Description

  • Noonlight LED Troffer Retrofit Kits are the ideal solution to update outdated fluorescent troffers into energy-efficient, contemporary LED systems. Each LED retrofit kit includes everything needed for a seamless installation without modifying the existing fixture mounting.

  • Optional PIR, Motion and BLE Controls are avaiable for further enhance energy savings and design flexibility.

  • Optional Emergency Backups can be integrated for emergency purpose lighting.

Features

  • CRI>80, CCT Tunable, 3000K, 3500K, 4000K and 5000K
  • DLC5.1 Premium LED Troffer Minimize stock, 1 SKU can cover max. of 16 models.
  • 5-100% 0-10V dimmable, flicker free, Dim to off.
  • Built-in PIR Sensor and Motion Sensor Options.
  • Built-in Emergency Driver Option.
  • L70>50,000hrs, 5 year warranty.

Specification

Model No DLC Input Voltage Wattage Lens CRI/CCT Rated Lumen @ 30K

Rated

Efficancy

@ 30K

 Viewing Angle

Rated Lifetime

Replacing

N-TR-24-40-XX-WC1

 P

120-347VAC/

120 - 277VAC 0- 10V Isolated

Dimmable

 40W

Frosted

Ra>80,

30K

35K

40K

50K

 5000LM

125LM/W

 120°

L70>

50000hrs

60W - 200W

Incandescent

N-TR-24-34-XX-WC1

 P

120-347VAC/

120 - 277VAC 0- 10V Isolated

Dimmable

 34W Frosted

Ra>80,

30K

35K

40K

50K

 4250LM

125LM/W

 120°

L70>

50000hrs

60W - 200W

Incandescent

N-TR-24-25-XX-WC1

 P

120-347VAC/

120 - 277VAC 0- 10V Isolated

Dimmable

 25W

Frosted

Ra>80,

30K

35K

40K

50K

3500LM

125LM/W

 120°

L70>

50000hrs

60W - 200W

Incandescent

N-TR-24-20-XX-WC1

 P

100-277VAC

or

100-347VAC

 20W

Frosted

Ra>80,

30K

35K

40K

50K

2500LM

125LM/W

 120°

L70>

50000hrs

60W - 200W

Incandescent

N-TR-14-27-XX-WC1

 P

120-347VAC/

120 - 277VAC 0- 10V Isolated

Dimmable

 27W Frosted

Ra>80,

30K

35K

40K

50K

3375LM

125LM/W

 120°

L70>

50000hrs

60W - 200W

Incandescent

N-TR-14-24-XX-WC1

 P

120-347VAC/

120 - 277VAC 0- 10V Isolated

Dimmable

 24W Frosted

Ra>80,

30K

35K

40K

50K

3000LM

125LM/W

 120°

L70>

50000hrs

60W - 200W

Incandescent

N-TR-14-20-XX-WC1

 P

120-347VAC/

120 - 277VAC 0- 10V Isolated

Dimmable

 20W Frosted

Ra>80,

30K

35K

40K

50K

2500LM

125LM/W

 120°

L70>

50000hrs

60W - 200W

Incandescent

N-TR-22-16-XX-WC1

 P

120-347VAC/

120 - 277VAC 0- 10V Isolated

Dimmable

 16W Frosted

Ra>80,

30K

35K

40K

50K

2000LM

125LM/W

 120°

L70>

50000hrs

60W - 200W

Incandescent

Installation

Suitable for surface mounted, suspended mounted.

2x4FT 130lM/W LED Troffer Lights LED Center Basket Troffer For Grid Ceiling

Advantages

HOW TO CHANGE THE WATTAGE & CCT IN THIS FIXTURE

2x4FT 130lM/W LED Troffer Lights LED Center Basket Troffer For Grid Ceiling

Power Adjustable Slide Switch Position

Size/Positon

0

1

2

3

1X4

27W

24W

20W

16W

2X2

27W

24W

20W

16W

2X4

40W

30W

25W

20W

CCT Tunable Slide Switch Position

Position/Group

CCT

Low

3000K(Optional)

Middle 1

3500K

Middle 2

4000K

High

5000K

Lighting Service

NOONLIGHT Core Team have more than 15 years of experience in lighting industry. We are able to offer our valuable clients:

  • OEM/ODM Serivce
  • Photometric/IES file
  • PCB Design/Driver Design
  • Heat Management/Optical Design
  • Industry Design
  • Market Support
  • 3D Printing
  • Multiple Listing/Private Label.

2x4FT 130lM/W LED Troffer Lights LED Center Basket Troffer For Grid Ceiling

Certificate

2x4FT 130lM/W LED Troffer Lights LED Center Basket Troffer For Grid Ceiling

CCT and Power Tuanable LED Troffer Light Applications

Schools, offices, conference room, hospitality etc.
