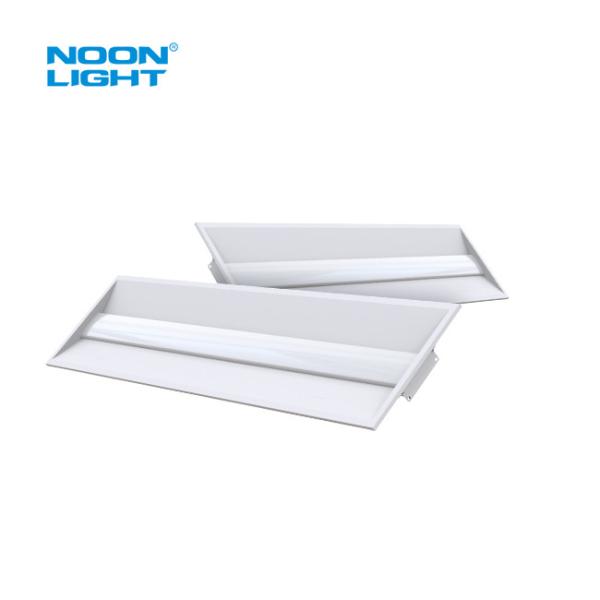

1x4FT Power selectable Center Basket Troffer Light Fixture
1x4FT Power selectable Center Basket Troffer Light Fixture
Specifications
Brand Name :
Noonlight
Model Number :
N-TR-1X4FT
Certification :
DLC / ETL / RoHS
Place of Origin :
China
MOQ :
200
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, Paypal
Supply Ability :
10000 Piece/Pieces per Month
Delivery Time :
30+ working days
Packaging Details :
1pc/inner box, 4pcs/CTN,
Product Name :
DLC5.1 Premium LED Troffer
CCT :
30K/35K/40K/50K Tunable
Luminous Efficacy :
130 lm/W
Light Source :
2835 SMD, CRI>80
Installation :
Surface Mounted, Suspension Mounted
Warranty :
5 years
DLC Category :
Stairwell and Passageway Luminaires
Description

1x4FT Power selectable Center Basket Troffer Light Fixture​

Description

  • Noonlight LED Troffer Retrofit Kits are the ideal solution to update outdated fluorescent troffers into energy-efficient, contemporary LED systems. Each LED retrofit kit includes everything needed for a seamless installation without modifying the existing fixture mounting.
  • Super sleek fixture allows the installers no need to remove the fluorescent fixture mounting from the ceiling.

Features

  • Troffer Lights With EM Battery Backup UP TO 130LM/W
  • Minimize stock, 1 SKU can cover max. of 16 models.
  • CCT and Power Tuanable LED Troffer Light An auxiliary to connect low voltage sensor/BLE or other IOT network.
  • 5-100% 0-10V dimmable, flicker free, Dim to off.
  • DLC5.1 Premium LED Troffer L70>50,000hrs, 5 year warranty.

Specification

Model No DLC Input Voltage Wattage Lens CRI/CCT Rated Lumen @ 30K

Rated

Efficancy

@ 30K

 Viewing Angle

Rated Lifetime

Replacing

N-TR-14-27-XX-WC1

 P

120-347VAC/

120 - 277VAC 0- 10V Isolated

Dimmable

 27W Frosted

Ra>80,

30K

35K

40K

50K

3375LM

125LM/W

 120°

L70>

50000hrs

60W - 200W

Incandescent

N-TR-14-24-XX-WC1

 P

120-347VAC/

120 - 277VAC 0- 10V Isolated

Dimmable

 24W Frosted

Ra>80,

30K

35K

40K

50K

3000LM

125LM/W

 120°

L70>

50000hrs

60W - 200W

Incandescent

N-TR-14-20-XX-WC1

 P

120-347VAC/

120 - 277VAC 0- 10V Isolated

Dimmable

 20W Frosted

Ra>80,

30K

35K

40K

50K

2500LM

125LM/W

 120°

L70>

50000hrs

60W - 200W

Incandescent

N-TR-14-16-XX-WC1

 P

120-347VAC/

120 - 277VAC 0- 10V Isolated

Dimmable

 16W Frosted

Ra>80,

30K

35K

40K

50K

2000LM

125LM/W

 120°

L70>

50000hrs

60W - 200W

Incandescent

Installation

Suitable for surface mounted, suspended mounted.

1x4FT Power selectable Center Basket Troffer Light Fixture

CCT and Power Tuanable LED Troffer Light Advantages

HOW TO CHANGE THE WATTAGE & CCT IN THIS FIXTURE

1x4FT Power selectable Center Basket Troffer Light Fixture

Power Adjustable Slide Switch Position

Size/Positon

0

1

2

3

1X4

27W

24W

20W

16W

2X2

27W

24W

20W

16W

2X4

40W

30W

25W

20W

CCT Tunable Slide Switch Position

Position/Group

CCT

Low

3000K(Optional)

Middle 1

3500K

Middle 2

4000K

High

5000K

Lighting Service

NOONLIGHT Core Team have more than 15 years of experience in lighting industry. We are able to offer our valuable clients:

  • OEM/ODM Serivce
  • Photometric/IES file
  • PCB Design/Driver Design
  • Heat Management/Optical Design
  • Industry Design
  • Market Support
  • 3D Printing
  • Multiple Listing/Private Label.

1x4FT Power selectable Center Basket Troffer Light Fixture

Applications

Schools, offices, conference room, hospitality etc.
