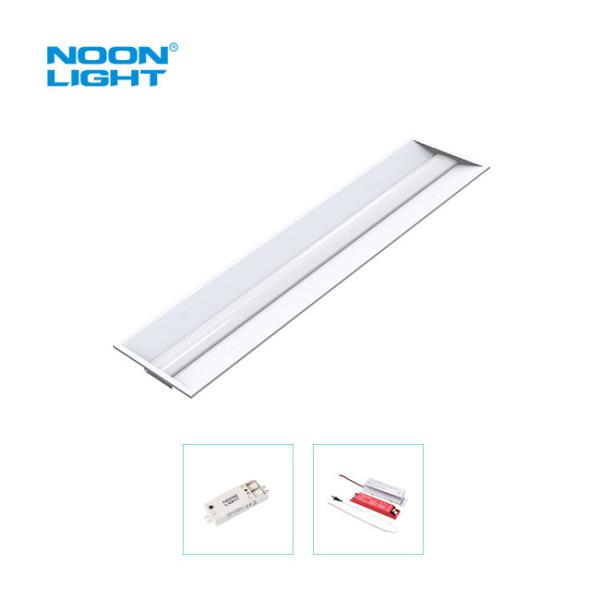

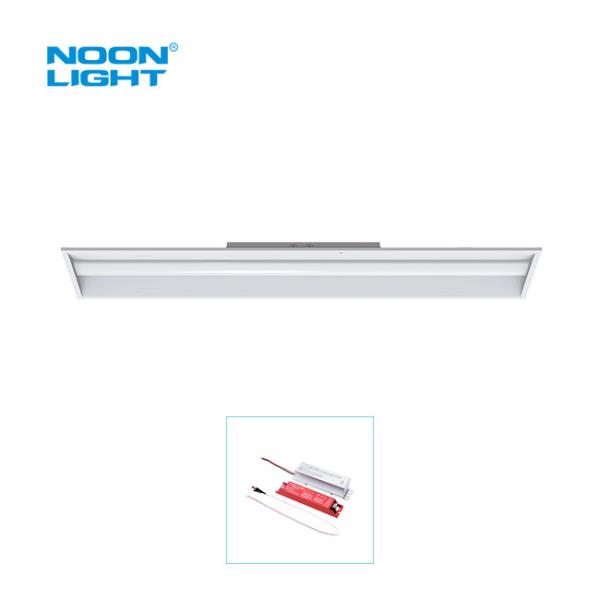

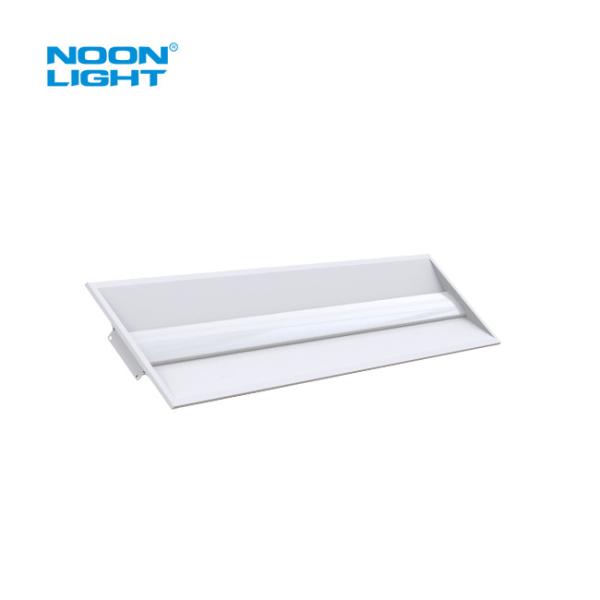

CCT 1x4FT Volumetric Center Basket LED Troffer Panel Light

Description

• Noonlight LED Troffers are the super slim led fixtures for fluorescent troffers in new or remodel construction. CCT and wattage adjustable technology enables customers to choose the color temperature and lumen output that is best suited for their lighting application.

CCT and Power Tuanable LED Troffer Light Features

• CCT Tunable LED Troffer Light UP TO 135LM/W
• CRI>80, CCT Tunable, 3000K, 3500K, 4000K and 5000K
• DLC5.1 Premium LED Troffer An auxiliary to connect low voltage sensor/BLE or other IOT network.
• 2 Depth Design: Super Thin & Standard
• 5-100% 0-10V dimmable, flicker free, Dim to off.
• Built-in PIR Sensor and Motion Sensor Options.
• L70>50,000hrs, 5 year warranty.

Accessories

Troffer Light With PIR Sensor Bi-level 12V PIR Sensor/PIR Sensor with Daylight Harvesting

Specification

• Input: 12-24VDC, >8ma
• 0-10V DC output signal
• Memeory function with one bottun commissiong.
• IR Remote controller commission.
• Detecton Range: Max. 6m in diameter.
• Mounting Height: 3-4m.
• Optional Daylight Harvesting

Default Setting/Setting

• Sensitivity: 100%/25%, 50%, 75%, 100%
• Daylight Sensor: Disable/Ambient Learn, 2lux, 10lux, 25lux, 50lux, 100lux, 300lux, Disable
• Hold Time: 5min/30s, 90s, 5 min, 10min, 30min
• Twilgith Time: never turn off/10s, 5min, 10min, 30min, 1h, never tun off
• Twilight Level: 30%/off, 10%, 30%, 50%

4W or 8W UL Listed Emergency Backup

• Listed for field Instllation-UL924 & CSA C22.2 NO. 141
• Input: 120-277VAC/347VAC 50/60Hz
• Output: 25-50VDC, 8W or 15w
• Illumination Time: 90min
• Battery Type:Li-ion/Ni-MH
• Battery Recharge Time: 24Hrs
• Surge Protection: 3KV
• Protection:
• Input over-current Protection (Fuse)
• Output over-voltage Protection
• Output Low Voltage Protection
• Output Short Circuit Protection
• Working Temp.: 10℃ to 50℃

Advantages

HOW TO CHANGE THE WATTAGE & CCT IN THIS FIXTURE
