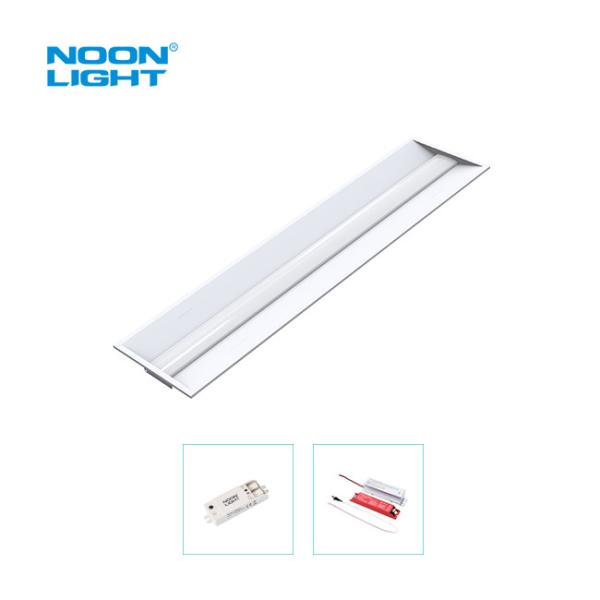

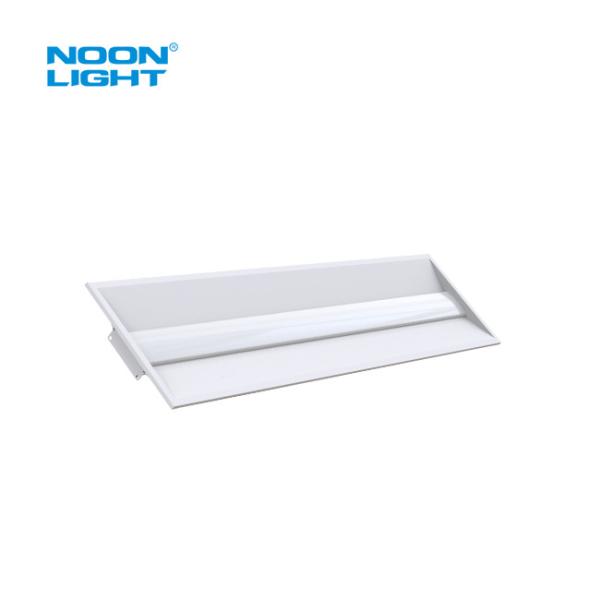

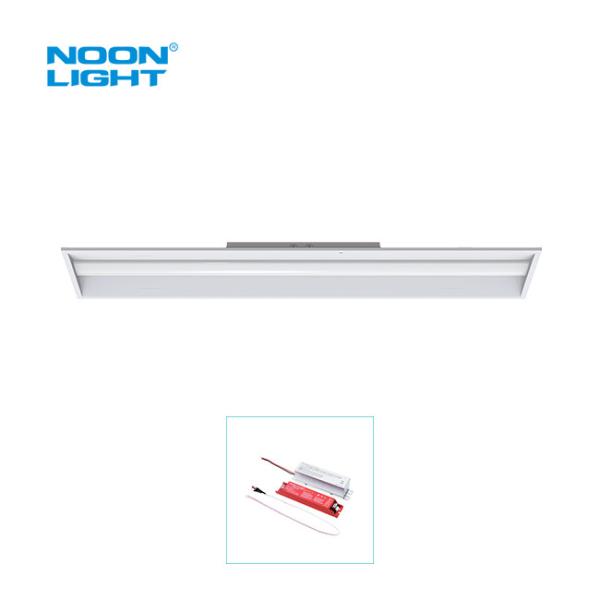

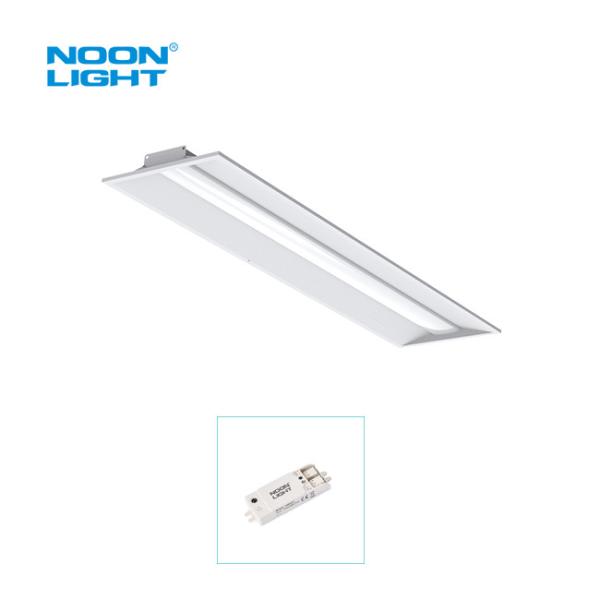

Noonlight 1x4 Recessed Troffer with Bi Level Snesor 12V

Description

• Frosted lens delivers even light with excellent color rendering and low glare, while its architectural design features make it the perfect complement to office, education, health care, hospitality and retail interiors.

Features

• Minimize stock, 1 SKU can cover max. of 16 models.
• CCT and Power Tuanable LED Troffer Light An auxiliary to connect low voltage sensor/BLE or other IOT network.
• 2 Depth Design: Super Thin & Standard
• 5-100% 0-10V dimmable, flicker free, Dim to off.
• Built-in Emergency Driver Option.
• L70>50,000hrs, 5 year warranty.

CCT and Power Tuanable LED Troffer Light Accessories

Bi-level 12V PIR Sensor/PIR Sensor with Daylight Harvesting

Specification

• Input: 12-24VDC, >8ma
• 0-10V DC output signal
• Memeory function with one bottun commissiong.
• IR Remote controller commission.
• Detecton Range: Max. 6m in diameter.
• Mounting Height: 3-4m.
• Optional Daylight Harvesting

Default Setting/Setting

• Sensitivity: 100%/25%, 50%, 75%, 100%
• Daylight Sensor: Disable/Ambient Learn, 2lux, 10lux, 25lux, 50lux, 100lux, 300lux, Disable
• Hold Time: 5min/30s, 90s, 5 min, 10min, 30min
• Twilgith Time: never turn off/10s, 5min, 10min, 30min, 1h, never tun off
• Twilight Level: 30%/off, 10%, 30%, 50%

8W or 15W UL Listed Emergency Backup

• Listed for field Instllation-UL924 & CSA C22.2 NO. 141
• Input: 120-277VAC/347VAC 50/60Hz
• Output: 25-50VDC, 8W or 15w
• Illumination Time: 90min
• Battery Type:Li-ion/Ni-MH
• Battery Recharge Time: 24Hrs
• Surge Protection: 3KV
• Protection:
• Input over-current Protection (Fuse)
• Output over-voltage Protection
• Output Low Voltage Protection
• Output Short Circuit Protection
• Working Temp.: 10℃ to 50℃

Advantages

HOW TO CHANGE THE WATTAGE & CCT IN THIS FIXTURE
